0in-39.3700in Flanged four point ball Inch Ungeared

Flanged four point contact ball slewing ring bearing
Inch
Ungeared

0in-39.3700in

Series 1

JCB BEARING flanged four point contact ball ungeared 0in~39.3700in

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter

Bearing No.	Di [in]	Da [in]	H [in]	[Ibs]	La [in]	na	B [in]	Li [in]	ni	B [in]	n1	DL [in]	O [in]	U [in]
L4-13P8Z	9.17	15.79	1.58	30	14.88	8	9/16	10.25	8	9/16	－	－	13.7	11.73
L4-13P9Z	9.17	15.79	1.58	30	14.88	8	9/16	10.25	8	9/16	－	－	13.7	11.73
L4-17P8Z	13.11	19.72	1.58	40	18.75	8	9/16	14.13	8	9/16	－	－	17.5	15.65
L4-17P9Z	13.11	19.72	1.58	40	18.75	8	9/16	14.13	8	9/16	－	－	17.5	15.65

Bearing No.	Di[in]	Da[in]	H[in]
L4-13P8Z	9.17	15.79	1.58
L4-13P9Z	9.17	15.79	1.58
L4-17P8Z	13.11	19.72	1.58
L4-17P9Z	13.11	19.72	1.58

Series 2

JCB BEARING flanged four point contact ball ungeared 39.3700in~98.4251in

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter Hu:Distance at bottom outer/inner ring

Bearing No.	Di [in]	Da [in]	H [in]	[Ibs]	La [in]	na	B [in]	Li [in]	ni	B [in]	n1	H3 [in]	H4 [in]	DL [in]	O [in]	U [in]	A [in]	C [in]	Hu [in]	Ho [in]
L6-16P9Z	11.97	20.39	2.20	52	19.25	8	11/16	13.13	12	11/16	－	0.47	0.47	16.3	16.24	16.36	17.83	14.76	0.41	0.41
L6-16P9ZD	11.97	20.39	2.20	52	19.25	16	11/16	13.13	24	11/16	－	0.47	0.47	16.3	16.24	16.36	17.83	14.76	0.41	0.41
L6-22P9Z	17.09	25.51	2.20	68	24.38	12	11/16	18.13	15	11/16	－	0.47	0.47	21.42	21.36	21.48	22.95	19.88	0.41	0.41
L6-22P9ZD	17.09	25.51	2.20	68	24.38	20	11/16	18.13	28	11/16	－	0.47	0.47	21.42	21.36	21.48	22.95	19.88	0.41	0.41
L6-25P9Z	21.02	29.45	2.20	80	28.38	12	11/16	22.13	18	11/16	－	0.47	0.47	25.355	25.3	25.41	26.89	23.82	0.41	0.41
L6-25P9ZD	21.02	29.45	2.20	80	28.38	24	11/16	22.13	32	11/16	－	0.47	0.47	25.355	25.3	25.41	26.89	23.82	0.41	0.41
L6-29P9Z	24.96	33.39	2.20	94	32.25	15	11/16	26.13	18	11/16	－	0.47	0.47	29.29	29.23	29.35	30.83	27.76	0.41	0.41
L6-29P9ZD	24.96	33.39	2.20	94	32.25	24	11/16	26.13	32	11/16	－	0.47	0.47	29.29	29.23	29.35	30.83	27.76	0.41	0.41
L6-33P9Z	28.90	37.32	2.20	105	36.25	18	11/16	30.00	18	11/16	－	0.47	0.47	33.23	33.17	33.29	34.76	31.69	0.41	0.41
L6-33P9ZD	28.90	37.32	2.20	105	36.25	28	11/16	30.00	36	11/16	－	0.47	0.47	33.23	33.17	33.29	34.76	31.69	0.41	0.41

Bearing No.	Di[in]	Da[in]	H[in]
L6-16P9Z	11.97	20.39	2.20
L6-16P9ZD	11.97	20.39	2.20
L6-22P9Z	17.09	25.51	2.20
L6-22P9ZD	17.09	25.51	2.20
L6-25P9Z	21.02	29.45	2.20
L6-25P9ZD	21.02	29.45	2.20
L6-29P9Z	24.96	33.39	2.20
L6-29P9ZD	24.96	33.39	2.20
L6-33P9Z	28.90	37.32	2.20
L6-33P9ZD	28.90	37.32	2.20

Series 3

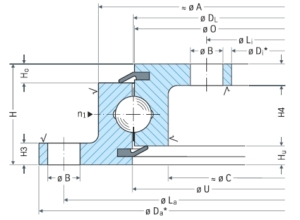

JCB BEARING flanged four point contact ball ungeared 39.3700in~98.4251in

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter Hu:Distance at bottom outer/inner ring

Bearing No.	Di [in]	Da [in]	H [in]	[Ibs]	La [in]	na	B [in]	Li [in]	ni	B [in]	n1	H3 [in]	H4 [in]	DL [in]	O [in]	U [in]	A [in]	C [in]	Hu [in]	Ho [in]
RK6-16P1Z	11.970	20.390	2.205	58	19.250	8	0.688	13.130	12	0.688	－	0.47	0.47	16.180	16.140	16.220	17.870	14.490	0.394	0.394
RK6-22P1Z	17.090	25.510	2.205	76	24.380	12	0.688	18.130	15	0.688	－	0.47	0.47	21.300	21.260	21.340	22.990	19.610	0.394	0.394
RK6-25P1Z	21.030	29.450	2.205	89	28.380	12	0.688	22.130	18	0.688	－	0.47	0.47	25.240	25.200	25.280	26.930	23.550	0.394	0.394
RK6-29P1Z	24.970	33.390	2.205	104	32.250	15	0.688	26.130	18	0.688	－	0.47	0.47	29.180	29.140	29.220	30.870	27.490	0.394	0.394
RK6-33P1Z	28.900	37.320	2.205	118	36.250	18	0.688	30.000	18	0.688	－	0.47	0.47	33.110	33.070	33.150	34.800	31.420	0.394	0.394

Bearing No.	Di[in]	Da[in]	H[in]
RK6-16P1Z	11.970	20.390	2.205
RK6-22P1Z	17.090	25.510	2.205
RK6-25P1Z	21.030	29.450	2.205
RK6-29P1Z	24.970	33.390	2.205
RK6-33P1Z	28.900	37.320	2.205
