0in-39.3700in Four point ball slewing bearing Inch Ungeared

Four point contact ball slewing ring bearing
Inch
Ungeared

0in-39.3700in

Series 1

JCB BEARING four point contact ball ungeared 0in~39.3700in

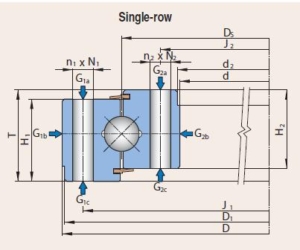

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter H1:Outer ring height

Bearing No.	d [in]	D [in]	T [in]	[Ibs]	J1 [in]	n1	N1 [in]	J2 [in]	n2	N2 [in]	Ds [in]	t [in]	H1 [in]	H2 [in]
HS6-16P1Z	12.000	20.400	2.200	103	19.000	8	0.688	13.500	12	0.688	－	－	1.800	1.800
HS6-21P1Z	17.000	25.500	2.200	137	24.000	12	0.688	18.500	15	0.688	－	－	1.800	1.800
HS6-25P1Z	21.000	29.500	2.200	162	28.000	15	0.688	22.500	18	0.688	－	－	1.800	1.800
HS6-29P1Z	25.000	33.400	2.200	186	32.000	15	0.688	26.500	18	0.688	－	－	1.800	1.800
HS6-33P1Z	28.830	37.400	2.200	216	35.700	18	0.688	30.500	20	0.688	－	－	1.800	1.800
HT10-30P1Z	24.000	36.000	3.500	447	33.250	24	0.813	26.750	30	0.813	－	－	3.000	3.000
MTO-050	1.968	4.331	0.787	2	3.818	8	0.260	2.480	8	0.260	－	－	0.728	0.728
MTO-050T	1.968	4.331	0.787	2	3.818	8	M6	2.480	8	M6	－	－	0.728	0.728
MTO-065	2.559	5.315	0.866	4	4.724	8	0.354	3.149	8	0.354	－	－	0.787	0.787
MTO-065T	2.559	5.315	0.866	4	4.724	8	M8	3.149	8	M8	－	－	0.787	0.787
MTO-122	4.803	8.898	1.339	13	8.189	12	0.354	5.512	12	0.354	－	－	1.142	1.142
MTO-122T	4.803	8.898	1.339	13	8.189	12	M8	5.512	12	M8	－	－	1.142	1.142
MTO-143	5.630	9.803	1.339	15	8.937	12	0.433	6.496	12	0.433	－	－	1.142	1.142
MTO-143T	5.630	9.803	1.339	15	8.937	12	M10	6.496	12	M10	－	－	1.142	1.142
MTO-145	5.709	11.811	1.968	37	10.630	16	0.562	6.890	16	0.562	－	－	1.732	1.732
MTO-145T	5.709	11.811	1.968	37	10.630	16	5/8-11	6.890	16	5/8-11	－	－	1.732	1.732
MTO-145X	5.709	12.286	1.968	41	10.630	16	0.594	6.890	16	0.594	－	－	1.732	1.732
MTO-170	6.693	12.205	1.811	33	11.024	12	0.512	7.874	12	0.512	－	－	1.614	1.614
MTO-170T	6.693	12.205	1.811	33	11.024	12	M12	7.874	12	M12	－	－	1.614	1.614
MTO-210	8.268	14.370	1.575	38	13.190	16	0.562	9.449	20	0.562	－	－	1.496	1.496
MTO-210T	8.268	14.370	1.575	38	13.190	16	5/8-11	9.449	20	5/8-11	－	－	1.496	1.496
MTO-210X	8.268	14.686	1.968	48	13.190	16	0.594	9.449	20	0.594	－	－	1.732	1.732
MTO-265	10.433	16.535	1.968	54	15.354	18	0.562	11.614	24	0.562	－	－	1.732	1.732
MTO-265T	10.433	16.535	1.968	54	15.354	18	5/8-11	11.614	24	5/8-11	－	－	1.732	1.732
MTO-265X	10.433	17.086	1.968	61	15.354	18	0.594	11.614	24	0.594	－	－	1.732	1.732
MTO-324T	12.750	20.486	2.062	105	18.875	20	5/8-11	14.375	20	5/8-11	－	－	2.022	2.022
MTO-324X	12.770	20.486	2.375	105	18.875	20	0.688	14.375	20	0.688	－	－	2.063	2.063
KH-125P	8.625	16.500	2.500	80	14.750	16	1/2-13	10.250	16	1/2-13	－	－	2.000	2.000
KH-166P	12.750	20.500	2.500	105	18.875	20	1/2-13	14.375	20	1/2-13	－	－	2.000	2.000
KH-225P	18.500	26.700	2.500	150	24.500	18	1/2-13	20.500	18	1/2-13	－	－	2.000	2.000
KH-275P	23.500	31.700	2.500	185	29.500	24	1/2-13	25.500	24	1/2-13	－	－	2.000	2.000
KH-325P	28.500	36.700	2.500	220	34.500	18	1/2-13	30.500	28	1/2-13	－	－	2.000	2.000
12740001	16.250	24.650	2.375	145	22.250	16	0.813	17.750	20	0.813	－	－	2.063	2.063
12750001	18.500	26.900	2.375	155	24.500	18	0.813	20.000	24	0.813	－	－	2.063	2.063
12770001	21.250	29.650	2.375	180	27.250	24	0.813	22.750	28	0.813	－	－	2.063	2.063
12775001	23.125	33.534	2.875	305	30.625	18	0.938	24.875	24	0.938	－	－	2.563	2.563
12780001	27.750	39.201	2.875	350	35.250	24	0.938	29.500	28	0.938	－	－	2.563	2.563

Bearing No.	d[in]	D[in]	T[in]
HS6-16P1Z	12.000	20.400	2.200
HS6-21P1Z	17.000	25.500	2.200
HS6-25P1Z	21.000	29.500	2.200
HS6-29P1Z	25.000	33.400	2.200
HS6-33P1Z	28.830	37.400	2.200
HT10-30P1Z	24.000	36.000	3.500
MTO-050	1.968	4.331	0.787
MTO-050T	1.968	4.331	0.787
MTO-065	2.559	5.315	0.866
MTO-065T	2.559	5.315	0.866
MTO-122	4.803	8.898	1.339
MTO-122T	4.803	8.898	1.339
MTO-143	5.630	9.803	1.339
MTO-143T	5.630	9.803	1.339
MTO-145	5.709	11.811	1.968
MTO-145T	5.709	11.811	1.968
MTO-145X	5.709	12.286	1.968
MTO-170	6.693	12.205	1.811
MTO-170T	6.693	12.205	1.811
MTO-210	8.268	14.370	1.575
MTO-210T	8.268	14.370	1.575
MTO-210X	8.268	14.686	1.968
MTO-265	10.433	16.535	1.968
MTO-265T	10.433	16.535	1.968
MTO-265X	10.433	17.086	1.968
MTO-324T	12.750	20.486	2.062
MTO-324X	12.770	20.486	2.375
KH-125P	8.625	16.500	2.500
KH-166P	12.750	20.500	2.500
KH-225P	18.500	26.700	2.500
KH-275P	23.500	31.700	2.500
KH-325P	28.500	36.700	2.500
12740001	16.250	24.650	2.375
12750001	18.500	26.900	2.375
12770001	21.250	29.650	2.375
12775001	23.125	33.534	2.875
12780001	27.750	39.201	2.875

Series 2

JCB BEARING four point contact ball ungeared 0in~39.3700in

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter H1:Outer ring height

Bearing No.	d [in]	D [in]	T [in]	[Ibs]	J1 [in]	n1	N1 [in]	J2 [in]	n2	N2 [in]	Ds [in]	t [in]	H1 [in]	H2 [in]
A6-9P4	5.71	11.81	1.81	32	10.630	10	0.66	6.890	10	0.66	8.78	—	1.61	1.61
A6-11P5	8.26	14.68	1.57	43	13.189	16	1/2-13	9.449	20-1	1/2-13	11.41	—	1.50	1.50
A6-14P3D	10.43	16.54	1.97	56	15.354	18	5/8-11	11.614	24-1	0.66	13.48	—	1.73	1.73
A8-17P1DU	12.74	20.48	2.13	101	18.875	20	5/8-11	14.375	20	5/8-11	16.60	—	2.06	2.06
A14-19P4	13.63	24.13	3.81	264	22.438	24-1	0.97	15.312	24	7/8-9	18.88	—	3.44	3.44
A8-22P11	18.00	26.00	2.75	170	24.500	20	0.78	19.500	20	3/4-10	22.00	—	2.38	2.38
A13-22P4	16.63	27.50	3.50	275	25.375	24	1.06	18.625	24	1.06	22.00	—	3.13	3.13
A4-23P2A	20.00	26.00	1.82	83	25.000	12	0.53	21.000	12	1/2-13	23.00	—	1.53	1.53
A9-24P2	19.77	27.97	2.88	188	26.625	30	3/4-10	21.125	30	3/4-10	23.88	—	2.50	2.50
A14-24P1A	19.12	28.75	3.62	294	27.375	30	0.81	20.625	30-1	0.81	24.00	—	3.25	3.25
A14-25P1	18.75	31.83	4.38	475	29.000	27	1.31	21.250	23	1.31	25.13	—	4.00	3.50
A14-31P3	26.00	35.75	3.81	406	34.125	30-1	3/4-10	27.625	30	0.78	31.06	—	3.44	3.44
A12-32P2	27.13	36.25	3.25	316	34.500	40-1	0.81	28.500	40	3/4-10	31.51	—	2.88	2.88
A10-35P1A	32.12	39.00	3.25	349	37.170	30	3/4-10	33.460	30	3/4-10	35.33	—	3.38	3.56
W13-24P1	21.65	31.89	3.55	368	30.510	12	5/8-11	23.23	12	5/8-11	26.78	—	3.55	2.77

Bearing No.	d[in]	D[in]	T[in]
A6-9P4	5.71	11.81	1.81
A6-11P5	8.26	14.68	1.57
A6-14P3D	10.43	16.54	1.97
A8-17P1DU	12.74	20.48	2.13
A14-19P4	13.63	24.13	3.81
A8-22P11	18.00	26.00	2.75
A13-22P4	16.63	27.50	3.50
A4-23P2A	20.00	26.00	1.82
A9-24P2	19.77	27.97	2.88
A14-24P1A	19.12	28.75	3.62
A14-25P1	18.75	31.83	4.38
A14-31P3	26.00	35.75	3.81
A12-32P2	27.13	36.25	3.25
A10-35P1A	32.12	39.00	3.25
W13-24P1	21.65	31.89	3.55
