1000mm-2500mm Flanged four point ball Metric Internal Gear

Flanged four point contact ball slewing ring bearing
Metric
Internal Gear

1000mm-2500mm

Series 1

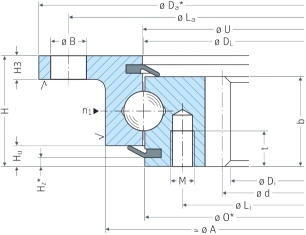

Da:Outer diameter (O.D.) Di:Inner diameter (I.D.)

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

M:Internal bolt hole diameter b:Tooth width

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	M [mm]	t [mm]	n1	H3 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	Hu [mm]	d [mm]	m [mm]	z	b [mm]
232.20.0900.013 Typ 21/1050.2	841.6	1048	56	65.8	1020	16	18	905	22	M12	20	4	12	944	942.5	945.5	983	10.5	–	856	8	107
232.20.1000.013 Typ 21/1200.2	985.6	1198	56	80.7	1170	16	18	1055	24	M12	20	4	12	1094	1092.5	1095.5	1133	10.5	–	1000	8	125
232.20.0900.503 Typ 21/1050.2	841.6	1048	56	65.4	1020	32	18	905	22	M12	20	4	12	944	942.5	945.5	983	10.5	–	856	8	107
232.20.1000.503 Typ 21/1200.2	985.6	1198	56	80.3	1170	32	18	1055	24	M12	20	4	12	1094	1092.5	1095.5	1133	10.5	–	1000	8	125
232.21.0975.013 Typ 21/1050.2	841.6	1047	56	65.8	1020	16	18	905	22	M12	20	4	12	944	941	945.5	983	10.5	–	856	8	107
232.21.1075.013 Typ 21/1200.2	985.6	1197	56	80.7	1170	16	18	1055	24	M12	20	4	12	1094	1091	1095.5	1133	10.5	–	1000	8	125
282.30.0900.013 Typ 110/1100.2	812	1100	90	159	1060	30	22	894	30	M20	40	6	21	955	956.5	953.5	1017	19	–	830	10	83
282.30.1000.013 Typ 110/1200.2	912	1200	90	176	1160	30	22	994	30	M20	40	6	21	1055	1056.5	1053.5	1117	19	–	930	10	93
282.30.1100.013 Typ 110/1300.2	1012	1300	90	192	1260	36	22	1094	36	M20	40	6	21	1155	1156.5	1153.5	1217	19	–	1030	10	103
282.30.1200.013 Typ 110/1400.2	1112	1400	90	208	1360	42	22	1194	42	M20	40	6	21	1255	1256.5	1253.5	1317	19	–	1130	10	113
282.30.1300.013 Typ 110/1500.2	1212	1500	90	226	1460	42	22	1294	42	M20	40	6	21	1355	1356.5	1353.5	1417	19	–	1230	10	123
282.30.1400.013 Typ 110/1600.2	1310	1600	90	243	1560	48	22	1394	48	M20	40	6	21	1455	1456.5	1453.5	1517	19	–	1330	10	133
282.30.0975.013 Typ 110/1100.2	812	1098	90	159	1060	30	22	894	30	M20	40	6	21	955	955	953.5	1017	19	–	830	10	83
282.30.1075.013 Typ 110/1200.2	912	1198	90	176	1160	30	22	994	30	M20	40	6	21	1055	1055	1053.5	1117	19	–	930	10	93
282.30.1175.013 Typ 110/1300.2	1012	1298	90	192	1260	36	22	1094	36	M20	40	6	21	1155	1155	1153.5	1217	19	–	1030	10	103
282.30.1275.013 Typ 110/1400.2	1112	1398	90	208	1360	42	22	1194	42	M20	40	6	21	1255	1255	1253.5	1317	19	–	1130	10	113
282.30.1375.013 Typ 110/1500.2	1212	1498	90	226	1460	42	22	1294	42	M20	40	6	21	1355	1355	1353.5	1417	19	–	1230	10	123
282.30.1475.013 Typ 110/1600.2	1310	1598	90	243	1560	48	22	1394	48	M20	40	6	21	1455	1455	1453.5	1517	19	–	1330	10	133

Bearing No.	Di[mm]	Da[mm]	H[mm]
232.20.0900.013 Typ 21/1050.2	841.6	1048	56
232.20.1000.013 Typ 21/1200.2	985.6	1198	56
232.20.0900.503 Typ 21/1050.2	841.6	1048	56
232.20.1000.503 Typ 21/1200.2	985.6	1198	56
232.21.0975.013 Typ 21/1050.2	841.6	1047	56
232.21.1075.013 Typ 21/1200.2	985.6	1197	56
282.30.0900.013 Typ 110/1100.2	812	1100	90
282.30.1000.013 Typ 110/1200.2	912	1200	90
282.30.1100.013 Typ 110/1300.2	1012	1300	90
282.30.1200.013 Typ 110/1400.2	1112	1400	90
282.30.1300.013 Typ 110/1500.2	1212	1500	90
282.30.1400.013 Typ 110/1600.2	1310	1600	90
282.30.0975.013 Typ 110/1100.2	812	1098	90
282.30.1075.013 Typ 110/1200.2	912	1198	90
282.30.1175.013 Typ 110/1300.2	1012	1298	90
282.30.1275.013 Typ 110/1400.2	1112	1398	90
282.30.1375.013 Typ 110/1500.2	1212	1498	90
282.30.1475.013 Typ 110/1600.2	1310	1598	90

Series 2

Da:Outer diameter (O.D.) Di:Inner diameter (I.D.)

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

M:Internal bolt hole diameter b:Tooth width

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	M [mm]	t [mm]	n1	H3 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	Hu [mm]	d [mm]	m [mm]	z	b [mm]
VLI200944-N	840	1048	56	67.5	1020	16	18	905	22	M12	20	4	12	944	941	945.5	983	8.5	856	8	107	44.5
VLI200944-N-RL1	840	1048	56	67.5	1020	16	18	905	22	M12	20	4	12	944	941	945.5	983	8.5	856	8	107	44.5
VLI200944-N-RR	840	1048	56	67.5	1020	16	18	905	22	M12	20	4	12	944	941	945.5	983	8.5	856	8	107	44.5
VLI200944-N-ZT	840	1048	56	67.5	1020	16	18	905	22	M12	20	4	12	944	941	945.5	983	8.5	856	8	107	44.5
VLI200944-N-VSP-ZT	840	1048	56	67.5	1020	16	18	905	22	M12	20	4	12	944	941	945.5	983	8.5	856	8	107	44.5
VLI201094-N	984	1198	56	81.5	1170	16	18	1055	24	M12	20	4	12	1094	1091	1095.5	1133	8.5	1000	8	125	44.5
VLI201094-N-RL1	984	1198	56	81.5	1170	16	18	1055	24	M12	20	4	12	1094	1091	1095.5	1133	8.5	1000	8	125	44.5
VLI201094-N-VSP	984	1198	56	81.5	1170	16	18	1055	24	M12	20	4	12	1094	1091	1095.5	1133	8.5	1000	8	125	44.5
VLI201094-N-ZT	984	1198	56	81.5	1170	16	18	1055	24	M12	20	4	12	1094	1091	1095.5	1133	8.5	1000	8	125	44.5
VLI201094-N-VSP-ZT	984	1198	56	81.5	1170	16	18	1055	24	M12	20	4	12	1094	1091	1095.5	1133	8.5	1000	8	125	44.5

Bearing No.	Di[mm]	Da[mm]	H[mm]
VLI200944-N	840	1048	56
VLI200944-N-RL1	840	1048	56
VLI200944-N-RR	840	1048	56
VLI200944-N-ZT	840	1048	56
VLI200944-N-VSP-ZT	840	1048	56
VLI201094-N	984	1198	56
VLI201094-N-RL1	984	1198	56
VLI201094-N-VSP	984	1198	56
VLI201094-N-ZT	984	1198	56
VLI201094-N-VSP-ZT	984	1198	56

Series 3

Da:Outer diameter (O.D.) Di:Inner diameter (I.D.)

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

M:Internal bolt hole diameter b:Tooth width

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	M [mm]	t [mm]	n1	H3 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	Hu [mm]	d [mm]	m [mm]	z	b [mm]
22 0941 01	840	1048	56	72	1020	16	18	905	22	M12	20	4	12	941	939.5	942.5	984	10	856	8	107	46
22 1091 01	986	1198	56	87	1170	16	18	1055	24	M12	20	4	12	1091	1089.5	1092.5	1134	10	1000	8	125	46
22094101	840	1048	56	72	1020	16	18	905	22	M12	20	4	12	941	939.5	942.5	984	10	856	8	107	46
22109101	986	1198	56	87	1170	16	18	1055	24	M12	20	4	12	1091	1089.5	1092.5	1134	10	1000	8	125	46

Bearing No.	Di[mm]	Da[mm]	H[mm]
22 0941 01	840	1048	56
22 1091 01	986	1198	56
22094101	840	1048	56
22109101	986	1198	56

Series 4

Da:Outer diameter (O.D.) Di:Inner diameter (I.D.)

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

M:Internal bolt hole diameter b:Tooth width

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	M [mm]	t [mm]	n1	H3 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	Hu [mm]	d [mm]	m [mm]	z	b [mm]
92-20 0941/1-07262	840	1048	56	69	1020	16	18	905	22	M12	20	4	12	941	942.5	945.5	983	12	856	8	107	44
92-20 1091/1-07272	984	1198	56	83	1170	16	18	1055	24	M12	20	4	12	1091	1092.5	1095.5	1133	12	1000	8	125	44
92-20 0941/1-07263	840	1047	56	69	1020	16	18	905	22	M12	20	4	12	941	942.5	945.5	983	12	856	8	107	44
92-20 1091/1-07273	984	1197	56	83	1170	16	18	1055	24	M12	20	4	12	1091	1092.5	1095.5	1133	12	1000	8	125	44
92-32 0955/1-06215	812	1100	90	159	1060	30	22	894	30	M20	40	6	21	955	955	955	1017	19	830	10	83	71
92-32 1055/1-06225	912	1200	90	176	1160	30	22	994	30	M20	40	6	21	1055	1055	1055	1117	19	930	10	93	71
92-32 1155/1-06235	1012	1300	90	192	1260	36	22	1094	36	M20	40	6	21	1155	1155	1155	1217	19	1030	10	103	71
92-32 1255/1-06245	1112	1400	90	208	1360	42	22	1194	42	M20	40	6	21	1255	1255	1255	1317	19	1130	10	113	71
92-32 1355/1-06255	1212	1500	90	226	1460	42	22	1294	42	M20	40	6	21	1355	1355	1355	1417	19	1230	10	123	71
92-32 1455/1-06265	1312	1600	90	243	1560	48	22	1394	48	M20	40	6	21	1455	1455	1455	1517	19	1330	10	133	71

Bearing No.	Di[mm]	Da[mm]	H[mm]
92-20 0941/1-07262	840	1048	56
92-20 1091/1-07272	984	1198	56
92-20 0941/1-07263	840	1047	56
92-20 1091/1-07273	984	1197	56
92-32 0955/1-06215	812	1100	90
92-32 1055/1-06225	912	1200	90
92-32 1155/1-06235	1012	1300	90
92-32 1255/1-06245	1112	1400	90
92-32 1355/1-06255	1212	1500	90
92-32 1455/1-06265	1312	1600	90

Series 5

Da:Outer diameter (O.D.) Di:Inner diameter (I.D.)

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

M:Internal bolt hole diameter b:Tooth width

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	M [mm]	t [mm]	n1	H3 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	Hu [mm]	d [mm]	m [mm]	z	b [mm]
RKS.22 0941	840	1048	56	71,0	1020	16	18	905	22	M12	20	4	12	941	939.5	942.5	984	10	856	8	107	46
RKS.22 1091	986	1198	56	80,0	1170	16	18	1055	24	M12	20	4	12	1091	1089.5	1092.5	1134	10	1000	8	125	46
RKS.220941	840	1048	56	71,0	1020	16	18	905	22	M12	20	4	12	941	939.5	942.5	984	10	856	8	107	46
RKS.221091	986	1198	56	80,0	1170	16	18	1055	24	M12	20	4	12	1091	1089.5	1092.5	1134	10	1000	8	125	46

Bearing No.	Di[mm]	Da[mm]	H[mm]
RKS.22 0941	840	1048	56
RKS.22 1091	986	1198	56
RKS.220941	840	1048	56
RKS.221091	986	1198	56

Series 6

Da:Outer diameter (O.D.) Di:Inner diameter (I.D.)

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

M:Internal bolt hole diameter b:Tooth width

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	M [mm]	t [mm]	n1	H3 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	Hu [mm]	d [mm]	m [mm]	z	b [mm]
I.1050.20.00.C	841,6	1048	56	65	1020	16	18	905	22	M20	20	4	12	944	942.5	945.5	983	10	856	8	107	46
I.1200.20.00.C	985,6	1198	56	80	1170	16	18	1055	24	M20	20	4	12	1094	1093	1096	1133	10	1000	8	125	46
I.1100.32.00.C	812	1100	80	159	1060	30	22	894	30	M20	40	6	21	955	955	955	1017	19	830	10	83	71
I.1200.32.00.C	912	1200	80	176	1160	30	22	994	30	M20	40	6	21	1055	1055	1055	1117	19	930	10	93	71
I.1300.32.00.C	1012	1300	80	192	1260	36	22	1094	36	M20	40	6	21	1155	1155	1155	1217	19	1030	10	103	71
I.1400.32.00.C	1112	1400	80	208	1360	42	22	1194	42	M20	40	6	21	1255	1255	1255	1317	19	1130	10	113	71
I.1500.32.00.C	1212	1500	80	226	1460	42	22	1294	42	M20	40	6	21	1355	1355	1355	1417	19	1230	10	123	71
I.1600.32.00.C	1310	1600	80	243	1560	48	22	1394	48	M20	40	6	21	1455	1455	1455	1517	19	1330	10	133	71

Bearing No.	Di[mm]	Da[mm]	H[mm]
I.1050.20.00.C	841,6	1048	56
I.1200.20.00.C	985,6	1198	56
I.1100.32.00.C	812	1100	80
I.1200.32.00.C	912	1200	80
I.1300.32.00.C	1012	1300	80
I.1400.32.00.C	1112	1400	80
I.1500.32.00.C	1212	1500	80
I.1600.32.00.C	1310	1600	80

Series 7

Da:Outer diameter (O.D.) Di:Inner diameter (I.D.)

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

M:Internal bolt hole diameter b:Tooth width

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	M [mm]	t [mm]	n1	H3 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	Hu [mm]	d [mm]	m [mm]	z	b [mm]
21-0015	840	1048	56	70	1020	16	18	905	22	M12	20	4	12	944	942.5	945.5	983	10	856	8	107	46
21-0016	984	1198	56	83	1170	16	18	1055	24	M12	20	4	12	1094	1092.5	1095.5	1133	10	1000	8	125	46
21-0027	812	1100	80	159	1060	30	22	894	30	M20	40	6	21	955	953	957	1017	19	830	10	83	71
21-0028	912	1200	80	176	1160	30	22	994	30	M20	40	6	21	1055	1053	1057	1117	19	930	10	93	71
21-0029	1012	1300	80	192	1260	36	22	1094	36	M20	40	6	21	1155	1153	1157	1217	19	1030	10	103	71
21-0030	1112	1400	80	208	1360	42	22	1194	42	M20	40	6	21	1255	1253	1257	1317	19	1130	10	113	71
21-0031	1212	1500	80	226	1460	42	22	1294	42	M20	40	6	21	1355	1353	1357	1417	19	1230	10	123	71
21-0032	1310	1600	80	243	1560	48	22	1394	48	M20	40	6	21	1455	1453	1457	1517	19	1330	10	133	71

Bearing No.	Di[mm]	Da[mm]	H[mm]
21-0015	840	1048	56
21-0016	984	1198	56
21-0027	812	1100	80
21-0028	912	1200	80
21-0029	1012	1300	80
21-0030	1112	1400	80
21-0031	1212	1500	80
21-0032	1310	1600	80

1000mm-2500mm

Series 1

Series 2

Series 3

Series 4

Series 5

Series 6

Series 7
