1000mm-2500mm Flanged four point ball Metric Ungeared

Flanged four point contact ball slewing ring bearing
Metric
Ungeared

1000mm-2500mm

Series 1

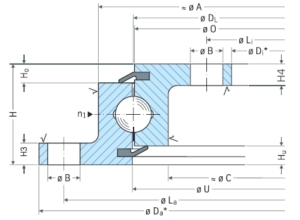

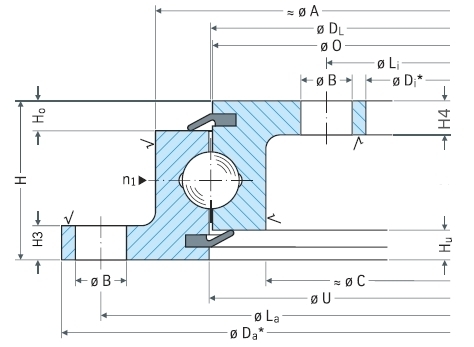

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter Ho:Distance at bottom outer ring

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H3 [mm]	H4 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	C [mm]	Hu [mm]	Ho [mm]
230.20.0900.013 Typ 21/1050.0	834	1048	56	53.1	1020	16	18	862	20	18	–	4	12	12	944	942.5	945.5	983	905	10.5	10.5
230.20.1000.013 Typ 21/1200.0	984	1198	56	61.9	1170	16	18	1012	20	18	–	4	12	12	1094	1092.5	1095.5	1133	1055	10.5	10.5
230.20.0900.503 Typ 21/1050.0	834	1048	56	52.3	1020	32	18	862	40	18	–	4	12	12	944	942.5	945.5	983	905	10.5	10.5
230.20.1000.503 Typ 21/1200.0	984	1198	56	61.1	1170	32	18	1012	40	18	–	4	12	12	1094	1092.5	1095.5	1133	1055	10.5	10.5
230.21.0975.013 Typ 21/1050.0	835	1047	56	53.1	1020	16	18	862	20	18	–	4	12	12	944	942.5	945.5	983	905	10.5	10.5
230.21.1075.013 Typ 21/1210.0	985	1197	56	61.9	1170	16	18	1012	20	18	–	4	12	12	1094	1092.5	1095.5	1133	1055	10.5	10.5
280.30.0900.013 Typ 110/1100.0	805	1100	90	131	1060	30	22	845	30	22	–	6	21	21	955	956.5	953.5	1017	893	19	19
280.30.1000.013 Typ 110/1200.0	905	1200	90	145	1160	30	22	945	30	22	–	6	21	21	1055	1056.5	1.53.5	1117	993	19	19
280.30.1100.013 Typ 110/1300.0	1005	1300	90	159	1260	36	22	1045	36	22	–	6	21	21	1155	1156.5	1153.5	1217	1093	19	19
280.30.1200.013 Typ 110/1400.0	1105	1400	90	172	1360	42	22	1145	42	22	–	6	21	21	1255	1256.5	1253.5	1317	1193	19	19
280.30.1300.013 Typ 110/1500.0	1205	1500	90	186	1460	42	22	1245	42	22	–	6	21	21	1355	1356.5	1353.5	1417	1293	19	19
280.30.1400.013 Typ 110/1600.0	1305	1600	90	200	1560	48	22	1345	48	22	–	6	21	21	1455	1456.5	1453.5	1517	1393	19	19
280.30.0975.013 Typ 110/1100.0	807	1098	90	131	1060	30	22	845	30	22	–	6	21	21	955	956.5	953.5	1017	893	19	19
280.30.1075.013 Typ 110/1200.0	907	1198	90	145	1160	30	22	945	30	22	–	6	21	21	1055	1056.5	1.53.5	1117	993	19	19
280.30.1175.013 Typ 110/1300.0	1007	1298	90	159	1260	36	22	1045	36	22	–	6	21	21	1155	1156.5	1153.5	1217	1093	19	19
280.30.1275.013 Typ 110/1400.0	1107	1398	90	172	1360	42	22	1145	42	22	–	6	21	21	1255	1256.5	1253.5	1317	1193	19	19
280.30.1375.013 Typ 110/1500.0	1207	1498	90	186	1460	42	22	1245	42	22	–	6	21	21	1355	1356.5	1353.5	1417	1293	19	19
280.30.1475.013 Typ 110/1600.0	1307	1598	90	200	1560	48	22	1345	48	22	–	6	21	21	1455	1456.5	1453.5	1517	1393	19	19

Bearing No.	Di[mm]	Da[mm]	H[mm]
230.20.0900.013 Typ 21/1050.0	834	1048	56
230.20.1000.013 Typ 21/1200.0	984	1198	56
230.20.0900.503 Typ 21/1050.0	834	1048	56
230.20.1000.503 Typ 21/1200.0	984	1198	56
230.21.0975.013 Typ 21/1050.0	835	1047	56
230.21.1075.013 Typ 21/1210.0	985	1197	56
280.30.0900.013 Typ 110/1100.0	805	1100	90
280.30.1000.013 Typ 110/1200.0	905	1200	90
280.30.1100.013 Typ 110/1300.0	1005	1300	90
280.30.1200.013 Typ 110/1400.0	1105	1400	90
280.30.1300.013 Typ 110/1500.0	1205	1500	90
280.30.1400.013 Typ 110/1600.0	1305	1600	90
280.30.0975.013 Typ 110/1100.0	807	1098	90
280.30.1075.013 Typ 110/1200.0	907	1198	90
280.30.1175.013 Typ 110/1300.0	1007	1298	90
280.30.1275.013 Typ 110/1400.0	1107	1298	90
280.30.1375.013 Typ 110/1500.0	1207	1498	90
280.30.1475.013 Typ 110/1600.0	1307	1598	90

Series 2

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter Ho:Distance at bottom outer ring

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H3 [mm]	H4 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	C [mm]	Hu [mm]	Ho [mm]
VLU200944	834	1048	56	54	1020	16	18	862	20	18	–	4	12	12	944	942.5	945.5	983	905	8.5	8.5
VLU200944-RL1	834	1048	56	54	1020	16	18	862	20	18	–	4	12	12	944	942.5	945.5	983	905	8.5	8.5
VLU200944-ZT	934	1048	56	54	1020	16	18	862	20	18	–	4	12	12	944	942.5	945.5	983	905	8.5	8.5
VLU200944-ZT-RL1	834	1048	56	54	1020	16	18	862	20	18	–	4	12	12	944	942.5	945.5	983	905	8.5	8.5
VLU201094	984	1198	56	62.5	1170	16	18	1012	20	18	–	4	12	12	1094	1092.5	1095.5	1133	1055	8.5	8.5
VLU201094-RL0	984	1198	56	62.5	1170	16	18	1012	20	18	–	4	12	12	1094	1092.5	1095.5	1133	1055	8.5	8.5
VLU201094-RL1	984	1198	56	62.5	1170	16	18	1012	20	18	–	4	12	12	1094	1092.5	1095.5	1133	1055	8.5	8.5
VLU201094-RL2	984	1198	56	62.5	1170	16	18	1012	20	18	–	4	12	12	1094	1092.5	1095.5	1133	1055	8.5	8.5
VLU201094-VSP	984	1198	56	62.5	1170	16	18	1012	20	18	–	4	12	12	1094	1092.5	1095.5	1133	1055	8.5	8.5
VLU201094-ZT	984	1198	56	62.5	1170	16	18	1012	20	18	–	4	12	12	1094	1092.5	1095.5	1133	1055	8.5	8.5
VLU201094-VSP-ZT	984	1198	56	62.5	1170	16	18	1012	20	18	–	4	12	12	1094	1092.5	1095.5	1133	1055	8.5	8.5
VLU201094-ZT-RL1	984	1198	56	62.5	1170	16	18	1012	20	18	–	4	12	12	1094	1092.5	1095.5	1133	1055	8.5	8.5

Bearing No.	Di[mm]	Da[mm]	H[mm]
VLU200944	834	1048	56
VLU200944-RL1	834	1048	56
VLU200944-ZT	934	1048	56
VLU200944-ZT-RL1	834	1048	56
VLU201094	984	1198	56
VLU201094-RL0	984	1198	56
VLU201094-RL1	984	1198	56
VLU201094-RL2	984	1198	56
VLU201094-VSP	984	1198	56
VLU201094-ZT	984	1198	56
VLU201094-VSP-ZT	984	1198	56
VLU201094-ZT-RL1	984	1198	56

Series 3

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter Ho:Distance at bottom outer ring

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H3 [mm]	H4 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	C [mm]	Hu [mm]	Ho [mm]
23 0941 01	834	1048	56	58	1020	16	18	862	20	18	–	4	12	12	941	939.5	942.5	984	898	10	10
23 1091 01	984	1198	56	68	1170	16	18	1012	20	18	–	4	12	12	1091	1089.5	1092.5	1 134	1 048	10	10
23094101	834	1048	56	58	1020	16	18	862	20	18	–	4	12	12	941	939.5	942.5	984	898	10	10
23109101	984	1198	56	68	1170	16	18	1012	20	18	–	4	12	12	1091	1089.5	1092.5	1 134	1 048	10	10

Bearing No.	Di[mm]	Da[mm]	H[mm]
23 0941 01	834	1048	56
23 1091 01	984	1198	56
23094101	834	1048	56
23109101	984	1198	56

Series 4

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter Ho:Distance at bottom outer ring

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H3 [mm]	H4 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	C [mm]	Hu [mm]	Ho [mm]
90-20 0941/0-07062	834	1048	56	58	1020	16	18	862	20	18	–	4	12	12	941	942.5	945.5	983	899	12	12
90-20 1091/0-07072	984	1198	56	68	1170	16	18	1012	20	18	–	4	12	12	1091	1092.5	1095.5	1133	1049	12	12
90-20 0941/0-07063	835	1047	56	58	1020	16	18	862	20	18	–	4	12	12	941	942.5	945.5	983	899	12	12
90-20 1091/0-07073	965	1197	56	68	1170	16	18	1012	20	18	–	4	12	12	1091	1092.5	1095.5	1133	1049	12	12
90-32 0955/0-06015	805	1100	90	131	1030	30	22	845	30	22	–	6	21	21	955	955	955	1017	893	19	19
90-32 1055/0-06025	905	1200	90	145	1160	30	22	945	30	22	–	6	21	21	1055	1055	1055	1117	993	19	19
90-32 1155/0-06035	1005	1300	90	159	1260	36	22	1045	36	22	–	6	21	21	1155	1155	1155	1217	1093	19	19
90-32 1255/0-06045	1105	1400	90	172	1360	42	22	1145	42	22	–	6	21	21	1255	1255	1255	1317	1193	19	19
90-32 1355/0-06055	1205	1500	90	186	1460	42	22	1245	42	22	–	6	21	21	1355	1355	1355	1417	1293	19	19
90-32 1455/0-06065	1305	1600	90	200	1560	48	22	1345	48	22	–	6	21	21	1455	1455	1455	1517	1393	19	19

Bearing No.	Di[mm]	Da[mm]	H[mm]
90-20 0941/0-07062	834	1048	56
90-20 1091/0-07072	984	1198	56
90-20 0941/0-07063	835	1047	56
90-20 1091/0-07073	965	1197	56
90-32 0955/0-06015	805	1100	90
90-32 1055/0-06025	905	1200	90
90-32 1155/0-06035	1005	1300	90
90-32 1255/0-06045	1105	1400	90
90-32 1355/0-06055	1205	1500	90
90-32 1455/0-06065	1305	1600	90

Series 5

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter Ho:Distance at bottom outer ring

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H3 [mm]	H4 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	C [mm]	Hu [mm]	Ho [mm]
RKS.23 0941	834	1048	56	58	1020	16	18	862	20	18	–	4	12	12	941	939.5	942.5	984	898	10	10
RKS.23 1091	984	1198	56	68	1170	16	18	1012	20	18	–	4	12	12	1091	1089.5	1092.5	1 134	1 048	10	10
RKS.230941	834	1048	56	58	1020	16	18	862	20	18	–	4	12	12	941	939.5	942.5	984	898	10	10
RKS.231091	984	1198	56	68	1170	16	18	1012	20	18	–	4	12	12	1091	1089.5	1092.5	1 134	1 048	10	10

Bearing No.	Di[mm]	Da[mm]	H[mm]
RKS.23 0941	834	1048	56
RKS.23 1091	984	1198	56
RKS.230941	834	1048	56
RKS.231091	984	1198	56

Series 6

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter Ho:Distance at bottom outer ring

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H3 [mm]	H4 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	C [mm]	Hu [mm]	Ho [mm]
VU.10.0942V	834	1048	56	59	1020	16	18	862	20	18	–	–	–	–	–	–	–	–	–	–	–
VU.10.0952V	805	1100	90	133	1060	30	22	845	30	22	–	–	–	–	–	–	–	–	–	–	–
VU.10.1093AV	985	1093	56	71,5	1170	32	18	1015	32	18	–	–	–	–	–	–	–	–	–	–	–
VU.10.1355V	1205	1355	90	214	1460	12	18	1245	18	18	–	–	–	–	–	–	–	–	–	–	–

Bearing No.	Di[mm]	Da[mm]	H[mm]
VU.10.0942V	834	1048	56
VU.10.0952V	805	1100	90
VU.10.1093AV	985	1093	56
VU.10.1355V	1205	1355	90

Series 7

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter Ho:Distance at bottom outer ring

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H3 [mm]	H4 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	C [mm]	Hu [mm]	Ho [mm]
SD.1050.20.00.C	834	1048	56	53	1020	16	18	862	20	18	–	4	12	12	944	942.5	945.5	983	905	10	10
SD.1200.20.00.C	984	1198	56	62	1170	16	18	1012	20	18	–	4	12	12	1094	1092.5	1095.5	1133	1055	10	10
SD.1100.32.00.C	805	1100	90	131	1060	30	22	845	30	22	–	6	21	21	955	955	955	1017	893	19	19
SD.1200.32.00.C	905	1200	90	145	1160	30	22	945	30	22	–	6	21	21	1055	1055	1055	1117	993	19	19
SD.1300.32.00.C	1005	1300	90	159	1260	36	22	1045	36	22	–	6	21	21	1155	1155	1155	1217	1093	19	19
SD.1400.32.00.C	1105	1400	90	172	1360	42	22	1145	42	22	–	6	21	21	1255	1255	1255	1317	1193	19	19
SD.1500.32.00.C	1205	1500	90	186	1460	42	22	1245	42	22	–	6	21	21	1355	1355	1355	1417	1293	19	19
SD.1600.32.00.C	1305	1600	90	200	1560	48	22	1345	48	22	–	6	21	21	1455	1455	1455	1517	1393	19	19

Bearing No.	Di[mm]	Da[mm]	H[mm]
SD.1050.20.00.C	834	1048	56
SD.1200.20.00.C	984	1198	56
SD.1100.32.00.C	805	1100	90
SD.1200.32.00.C	905	1200	90
SD.1300.32.00.C	1005	1300	90
SD.1400.32.00.C	1105	1400	90
SD.1500.32.00.C	1205	1500	90
SD.1600.32.00.C	1305	1600	90

Series 8

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter Ho:Distance at bottom outer ring

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H3 [mm]	H4 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	C [mm]	Hu [mm]	Ho [mm]
22-0015	834	1048	56	59	1020	16	18	862	20	18	–	4	12	12	944	942.5	945.5	1020	900	10	10
22-0016	984	1198	56	68	1170	16	18	1012	20	18	–	4	12	12	1094	1092.5	1095.5	1170	1050	10	10
22-0027	805	1100	90	131	1060	30	22	845	30	22	–	6	21	21	955	953	957	1017	893	19	19
22-0028	905	1200	90	145	1160	30	22	945	30	22	–	6	21	21	1055	1053	1057	1117	993	19	19
22-0029	1005	1300	90	159	1260	36	22	1045	36	22	–	6	21	21	1155	1153	1157	1217	1093	19	19
22-0030	1105	1400	90	172	1360	42	22	1145	42	22	–	6	21	21	1255	1253	1257	1317	1193	19	19
22-0031	1205	1500	90	186	1460	42	22	1245	42	22	–	6	21	21	1355	1353	1357	1417	1293	19	19
22-0032	1305	1600	90	200	1560	48	22	1345	48	22	–	6	21	21	1455	1453	1457	1517	1393	19	19

Bearing No.	Di[mm]	Da[mm]	H[mm]
22-0015	834	1048	56
22-0016	984	1198	56
22-0027	805	1100	90
22-0028	905	1200	90
22-0029	1005	1300	90
22-0030	1105	1400	90
22-0031	1205	1500	90
22-0032	1305	1600	90

Series 9

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	Li [mm]	B [mm]	d [mm]	DL [mm]	n1 [mm]	Da1 [mm]	O [mm]	U [mm]
310.16.0900.000·Typ 16L/1050	886	1054	42	34	1025	910	–	16	970	4	–	996	944

Bearing No.	Di[mm]	Da[mm]	H[mm]
310.16.0900.000·Typ 16L/1050	886	1054	42

Series 10

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	Li [mm]	B [mm]	d [mm]	DL [mm]	n1 [mm]	Da1 [mm]	O [mm]	U [mm]
320.16.0900.000·Typ 16/1050	865.0	1050	48	39	1025	890	–	16	957.5	4	–	984	931

Bearing No.	Di[mm]	Da[mm]	H[mm]
320.16.0900.000·Typ 16/1050	865.0	1050	48

Series 11

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	Li [mm]	B [mm]	d [mm]	DL [mm]	n1 [mm]	Da1 [mm]	O [mm]	U [mm]
330.16.0900.000·Typ 80/1000	882.0	1036	80	58	984	970	–	16	913.5	4	1011	–	898
330.16.1000.000·Typ 80/1090	972.0	1126	80	63	1074	1060	–	16	1003.5	4	1101	–	988
330.16.1000.010·Typ 80/1090	972.0	1126	80	63	1074	1060	18	16	1003.5	4	1101	–	988

Bearing No.	Di [mm]	Da [mm]	H [mm]
330.16.0900.000·Typ 80/1000	882.0	1036	80
330.16.1000.000·Typ 80/1090	972.0	1126	80
330.16.1000.010·Typ 80/1090	972.0	1126	80

Series 12

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	Li [mm]	B [mm]	d [mm]	DL [mm]	n1 [mm]	Da1 [mm]	O [mm]	U [mm]
350.16.1000.000·Typ 80 S/1100	960	1108	80	73	–	–	–	16/14	1002.5/992.5	6	1095	–	994
350.16.1000.010·Typ 80 S/1100	960	1108	80	72.8	1074	1060	16	16/14	1002.5/992.5	6	1095	–	994

Bearing No.	Di[mm]	Da[mm]	H[mm]
350.16.1000.000·Typ 80 S/1100	960	1108	80
350.16.1000.010·Typ 80 S/1100	960	1108	80

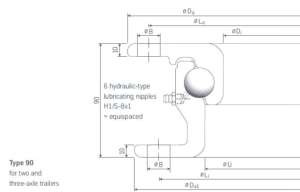

Series 13

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	Li [mm]	B [mm]	d [mm]	DL [mm]	n1 [mm]	Da1 [mm]	O [mm]	U [mm]
360.18.0800.000·Typ 90/1000.18	854	1008	90	64	974	960	–	18	894	6	1000	–	885
360.20.0800.000·Typ 90/1000.20	854	1008	90	64	974	960	–	20	894	6	1000	–	885
360.22.0800.000·Typ 90/1000.22	854	1008	90	64	974	960	–	22	894	6	1000	–	885
360.24.0800.000·Typ 90/1000.24	854	1008	90	64	974	960	–	24	894	6	1000	–	885
360.18.0900.010·Typ 90/1100.18	954	1108	90	71	1074	1060	18	18	994	6	1100	–	985
360.20.0900.010·Typ 90/1100.20	954	1108	90	71	1074	1060	18	20	994	6	1100	–	985
360.22.0900.010·Typ 90/1100.22	954	1108	90	71	1074	1060	18	22	994	6	1100	–	985
360.24.0900.010·Typ 90/1100.24	954	1108	90	71	1074	1060	18	24	994	6	1100	–	985
360.22.1000.010·Typ 90/1200.22	1054	1208	90	79	1174	1160	18	22	1094	6	1200	–	1085
360.24.1000.010·Typ 90/1200.24	1054	1208	90	79	1174	1160	18	24	1094	6	1200	–	1085
360.22.1100.010·Typ 90/1300.22	1154	1308	90	87	1274	1260	18	22	1194	6	1300	–	1185
360.18.0900.000·Typ 90/1100.18	954	1108	90	71	1074	1060	–	18	994	6	1100	–	985
360.20.0900.000·Typ 90/1100.20	954	1108	90	71	1074	1060	–	20	994	6	1100	–	985
360.22.0900.000·Typ 90/1100.22	954	1108	90	71	1074	1060	–	22	994	6	1100	–	985
360.24.0900.000·Typ 90/1100.24	954	1108	90	71	1074	1060	–	24	994	6	1100	–	985
360.22.1000.000·Typ 90/1200.22	1054	1208	90	79	1174	1160	–	22	1094	6	1200	–	1085
360.24.1000.000·Typ 90/1200.24	1054	1208	90	79	1174	1160	–	24	1094	6	1200	–	1085
360.22.1100.000·Typ 90/1300.22	1154	1308	90	87	1274	1260	–	22	1194	6	1300	–	1185

Bearing No.	Di[mm]	Da[mm]	H[mm]
360.18.0800.000·Typ 90/1000.18	854	1008	90
360.20.0800.000·Typ 90/1000.20	854	1008	90
360.22.0800.000·Typ 90/1000.22	854	1008	90
360.24.0800.000·Typ 90/1000.24	854	1008	90
360.18.0900.010·Typ 90/1100.18	954	1108	90
360.20.0900.010·Typ 90/1100.20	954	1108	90
360.22.0900.010·Typ 90/1100.22	954	1108	90
360.24.0900.010·Typ 90/1100.24	954	1108	90
360.22.1000.010·Typ 90/1200.22	1054	1208	90
360.24.1000.010·Typ 90/1200.24	1054	1208	90
360.22.1100.010·Typ 90/1300.22	1154	1308	90
360.18.0900.000·Typ 90/1100.18	954	1108	90
360.20.0900.000·Typ 90/1100.20	954	1108	90
360.22.0900.000·Typ 90/1100.22	954	1108	90
360.24.0900.000·Typ 90/1100.24	954	1108	90
360.22.1000.000·Typ 90/1200.22	1054	1208	90
360.24.1000.000·Typ 90/1200.24	1054	1208	90
360.22.1100.000·Typ 90/1300.22	1154	1308	90

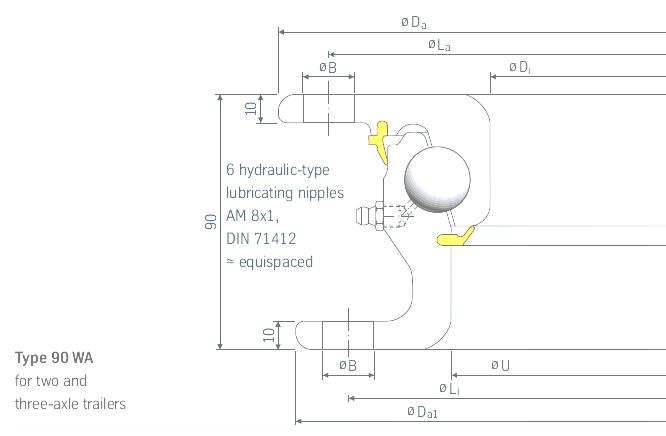

Series 14

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	Li [mm]	B [mm]	d [mm]	DL [mm]	n1 [mm]	Da1 [mm]	O [mm]	U [mm]
360.22.0955.010·Typ 90/1100.22 WA	954	1108	90	71	1074	1060	18	22	994	6	1100	–	985
360.24.0955.010·Typ 90/1100.24 WA	954	1108	90	71	1074	1060	18	24	994	6	1100	–	985
360.22.1055.010·Typ 90/1200.22 WA	1054	1208	90	79	1174	1160	18	22	1094	6	1200	–	1085
360.24.1055.010·Typ 90/1200.24 WA	1054	1208	90	79	1174	1160	18	24	1094	6	1200	–	1085
360.22.1155.010·Typ 90/1300.22 WA	1154	1308	90	87	1274	1260	18	22	1194	6	1300	–	1185

Bearing No.	Di[mm]	Da[mm]	H[mm]
360.22.0955.010·Typ 90/1100.22 WA	954	1108	90
360.24.0955.010·Typ 90/1100.24 WA	954	1108	90
360.22.1055.010·Typ 90/1200.22 WA	1054	1208	90
360.24.1055.010·Typ 90/1200.24 WA	1054	1208	90
360.22.1155.010·Typ 90/1300.22 WA	1154	1308	90

Series 15

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	Li [mm]	B [mm]	d [mm]	DL [mm]	n1 [mm]	Da1 [mm]	O [mm]	U [mm]
370.20.0804.000·Typ 90 S/1000	834	1000	90	82	966	952	–	20/16	880/870	6	987	–	871
370.20.0904.000·Typ 90 S/1100	942	1108	90	92	1074	1060	–	20/16	988/978	6	1095	–	979
370.20.1004.000·Typ 90 S/1200	1042	1208	90	101	1174	1160	–	20/16	1088/1078	6	1195	–	1079
370.24.1004.000·Typ 90 S/1200.SP	1042	1208	90	101	1174	1160	–	24/16	1087/1078	6	1195	–	1079
370.20.0804.010·Typ 90 S/1000	834	1000	90	82	966	952	18	20/16	880/870	6	987	–	871
370.20.0904.010·Typ 90 S/1100	942	1108	90	92	1074	1060	18	20/16	988/978	6	1095	–	979
370.20.1004.010·Typ 90 S/1200	1042	1208	90	101	1174	1160	18	20/16	1088/1078	6	1195	–	1079
370.20.1004.030·Typ 90 S/1200.12	1042	1208	90	101	1174	1160	18	20/16	1088/1078	6	1195	–	1079
370.24.1004.010·Typ 90 S/1200.SP	1042	1208	90	101	1174	1160	18	24/16	1087/1078	6	1195	–	1079

Bearing No.	Di[mm]	Da[mm]	H[mm]
370.20.0804.000·Typ 90 S/1000	834	1000	90
370.20.0904.000·Typ 90 S/1100	942	1108	90
370.20.1004.000·Typ 90 S/1200	1042	1208	90
370.24.1004.000·Typ 90 S/1200.SP	1042	1208	90
370.20.0804.010·Typ 90 S/1000	834	1000	90
370.20.0904.010·Typ 90 S/1100	942	1108	90
370.20.1004.010·Typ 90 S/1200	1042	1208	90
370.20.1004.030·Typ 90 S/1200.12	1042	1208	90
370.24.1004.010·Typ 90 S/1200.SP	1042	1208	90

Series 16

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	Li [mm]	B [mm]	d [mm]	A [mm]	G(n°) [mm]	Db [mm]	O [mm]	U [mm]
U.1000.14	885	1000	65	34	975	–	–	14.288	10	2	1000	–	910
U.1050.14	935	1050	65	36	1025	–	–	14.288	10	2	1050	–	960
U.1100.14	985	1100	65	38	1075	–	–	14.288	10	2	1100	–	1010
U.1015.16	882	1015	80	43	972	–	–	15.875	12	2	1015	–	900
U.1105.16	972	1105	80	38	1060	–	–	15.875	12	2	1105	–	990

Bearing No.	Di[mm]	Da[mm]	H[mm]
U.1000.14	885	1000	65
U.1050.14	935	1050	65
U.1100.14	985	1100	65
U.1015.16	882	1015	80
U.1105.16	972	1105	80

Series 17

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	Li [mm]	B [mm]	d [mm]	A [mm]	G(n°) [mm]	Db [mm]	O [mm]	U [mm]
Z.1050.16	865	1050	52	42	1025	–	–	15.875	10	4	987	–	923

Bearing No.	Di[mm]	Da[mm]	H[mm]
Z.1050.16	865	1050	52

1000mm-2500mm

Series 1

Series 2

Series 3

Series 4

Series 5

Series 6

Series 7

Series 8

Series 9

Series 10

Series 11

Series 12

Series 13

Series 14

Series 15

Series 16

Series 17

Contact Information
