TECHNICAL INFORMATION
16381001 DRAWING AND SPECIFICATION
16381001 SPECIFICATION
Slewing Bearing: 16381001
Inner diameter (di): 97.008 in
Outer diameter (Da): 120.866 in
Overall height (H): 13.701 in
Outer ring height (Ho): 10.157 in
Inner ring height (Hi): 11.732 in
Weight: 10820 Ibs
External bolt circle dia (Lo): 117.717 in
Number of bolt holes per hole circle (no):72
External bolt hole type : Selected by user
External bolt hole diameter (Bo): 1.535 in
Internal bolt circle dia (Li): 104.724 in
Number of bolt holes per hole circle (ni):72
Internal bolt hole type : Selected by user
Internal bolt hole diameter (Bi): 1.535 in
Tooth number (z):113
Module of gear (m):22
Tooth width (b2): 8.000 in

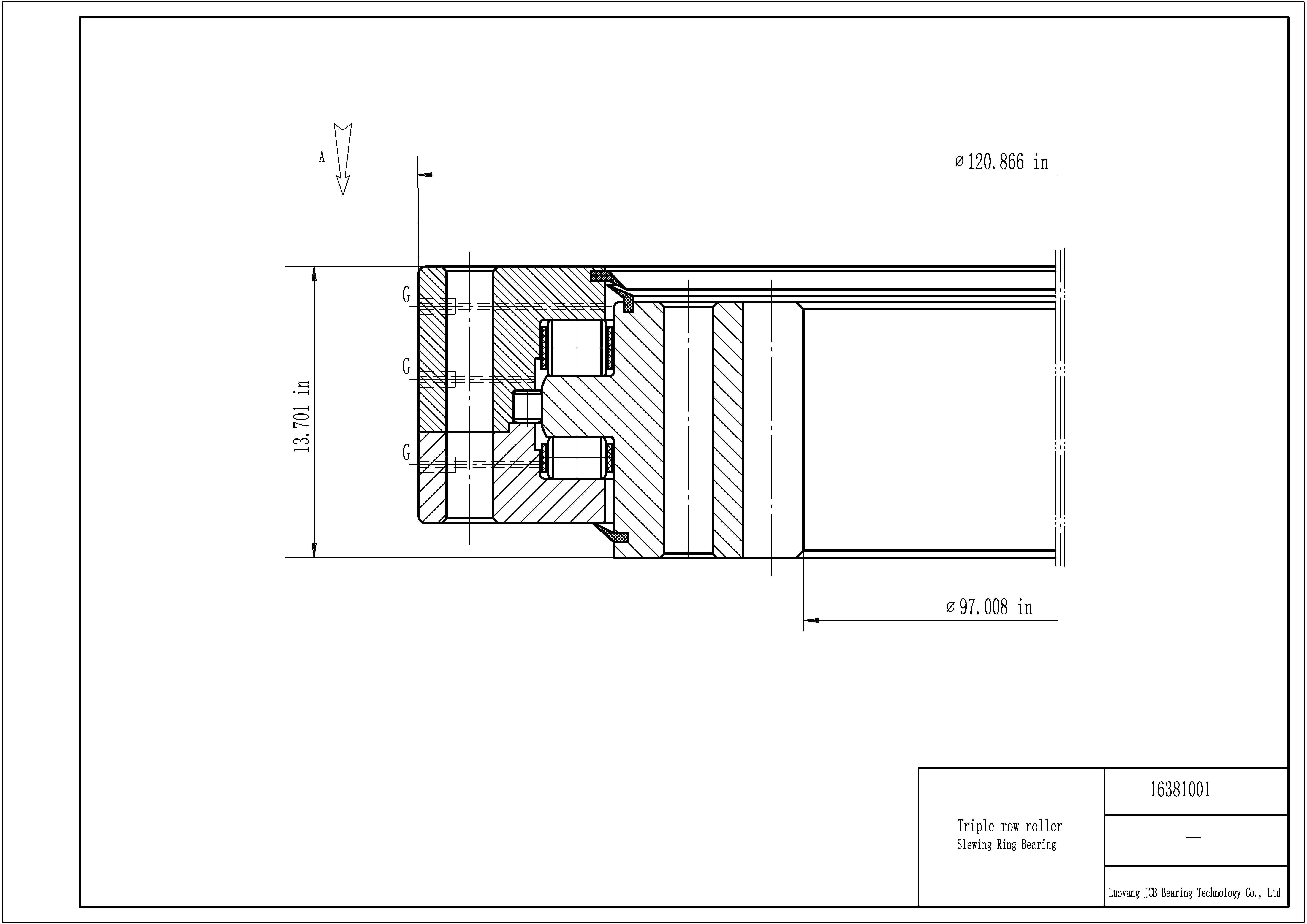

16381001 DRAWING
16381001 drawing is reference for user, if you request for 16381001 formal drawing, please contact with us: sales@jcb-bearing.com, the 16381001 official drawing will be submitted to user.
