2500mm- Crossed roller slewing bearing Metric External Gear

Crossed roller slewing ring bearing
Metric
External Gear

2500mm-

Series 1

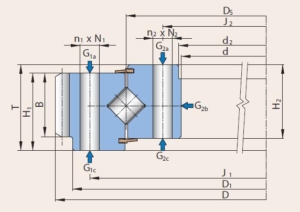

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	t [mm]	do [mm]	m [mm]	z	b [mm]	H1 [mm]	H2 [mm]
161.40.2368.890.11.1503	2192	2620.8	108	993	2478	56	33	2258	56	33	-	2576	16	161	98	98	98
161.40.2368.891.41.1503	2192	2620.8	108	993	2478	56	33	2258	56	33	-	2576	16	161	98	98	98
161.45.2240.890.11.1503	2057	2516.4	119	1122	2357	48	33	2123	48	33	-	2466	18	137	109	109	109
161.45.2240.891.41.1503	2057	2516.4	119	1122	2357	48	33	2123	48	33	-	2466	18	137	109	109	109
161.45.2366.890.11.1503	2183	2642.4	119	1182	2483	52	33	2249	52	33	-	2592	18	144	109	109	109
161.45.2366.891.41.1503	2183	2642.4	119	1182	2483	52	33	2249	52	33	-	2592	18	144	109	109	109
161.45.2510.890.11.1503	2327	2786.4	119	1258	2627	56	33	2393	56	33	-	2736	18	152	109	109	109
161.45.2510.891.41.1503	2327	2786.4	119	1258	2627	56	33	2393	56	33	-	2736	18	152	109	109	109
161.45.2654.890.11.1503	2471	2930.4	119	1329	2771	60	33	2537	60	33	-	2880	18	160	109	109	109
161.45.2654.891.41.1503	2471	2930.4	119	1329	2771	60	33	2537	60	33	-	2880	18	160	109	109	109
161.50.2500.891.41.1503	2309	2796	130	1453	2625	60	33	2375	60	33	-	2740	20	137	120	120	120
161.50.2660.891.41.1503	2469	2956	130	1544	2785	64	33	2535	64	33	-	2900	20	145	120	120	120
161.50.2800.891.41.1503	2609	3096	130	1616	2925	72	33	2675	72	33	-	3040	20	152	120	120	120
161.50.3000.891.41.1503	2809	3296	130	1733	3125	76	33	2875	76	33	-	3240	20	162	120	120	120

Bearing No.	d[mm]	D[mm]	T[mm]
161.40.2368.890.11.1503	2192	2620.8	108
161.40.2368.891.41.1503	2192	2620.8	108
161.45.2240.890.11.1503	2057	2516.4	119
161.45.2240.891.41.1503	2057	2516.4	119
161.45.2366.890.11.1503	2183	2642.4	119
161.45.2366.891.41.1503	2183	2642.4	119
161.45.2510.890.11.1503	2327	2786.4	119
161.45.2510.891.41.1503	2327	2786.4	119
161.45.2654.890.11.1503	2471	2930.4	119
161.45.2654.891.41.1503	2471	2930.4	119
161.50.2500.891.41.1503	2309	2796	130
161.50.2660.891.41.1503	2469	2956	130
161.50.2800.891.41.1503	2609	3096	130
161.50.3000.891.41.1503	2809	3296	130

Series 2

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	t [mm]	do [mm]	m [mm]	z	b [mm]	H1 [mm]	H2 [mm]
9E-1Z36-2435-0349	2320	2613.6	109	710	–	–	–	–	–	–	–	–	–	–	–	–	–
9E-1Z30-2435-0349-1	2320	2613.6	109	702	2510	24	17.5	2360	24	M20		2592	12	216	100	100	79
9E-1Z35-2435-0349	2320	2613.6	109	695	–	–	–	–	–	–	–	–	–	–	–	–	–

Bearing No.	d[mm]	D[mm]	T[mm]
9E-1Z36-2435-0349	2320	2613.6	109
9E-1Z30-2435-0349-1	2320	2613.6	109
9E-1Z35-2435-0349	2320	2613.6	109

Series 3

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	t [mm]	do [mm]	m [mm]	z	b [mm]	H1 [mm]	H2 [mm]
06 2242 00	2042	2534	144	1547	2373	60	33	2112	（60-1）	33		2502	18	138	132	132	122
06 2500 01	2290	2790	164	1914	2640	72	33	2360	（72-1）	33		2757.6	18	151	148	148	142
06 2810 09	2600	3116	164	2218	2950	80	33	2670	（80-1）	33		3080	20	152	148	148	142
06224200	2042	2534	144	1547	2373	60	33	2112	（60-1）	33		2502	18	138	132	132	122
06250001	2290	2790	164	1914	2640	72	33	2360	（72-1）	33		2757.6	18	151	148	148	142
06281009	2600	3116	164	2218	2950	80	33	2670	（80-1）	33		3080	20	152	148	148	142

Bearing No.	d[mm]	D[mm]	T[mm]
06 2242 00	2042	2534	144
06 2500 01	2290	2790	164
06 2810 09	2600	3116	164
06224200	2042	2534	144
06250001	2290	2790	164
06281009	2600	3116	164

Series 4

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	t [mm]	do [mm]	m [mm]	z	b [mm]	H1 [mm]	H2 [mm]
26-0020	2192	2620.8	108	998	2478	56	33	2258	56	33	-	2576	14	161	98	98	98
26-0021	2057	2516.4	120	1122	2357	48	33	2123	48	33	-	2466	18	137	110	110	110
26-0022	2183	2642.4	120	1182	2483	52	33	2249	52	33	-	2592	18	144	110	110	110
26-0023	2327	2786.4	120	1260	2627	56	33	2393	56	33	-	2736	18	152	110	110	110
26-0024	2471	2930.4	120	1330	2771	60	33	2537	60	33	-	2880	18	160	110	110	110
26-0025	2309	2796	130	1450	2625	60	33	2375	60	33	-	2740	20	137	120	120	120
26-0026	2469	2956	130	1545	2785	64	33	2535	64	33	-	2900	20	145	120	120	120
26-0027	2609	3096	130	1620	2925	72	33	2675	72	33	-	3040	20	152	120	120	120

Bearing No.	d[mm]	D[mm]	T[mm]
26-0020	2192	2620.8	108
26-0021	2057	2516.4	120
26-0022	2183	2642.4	120
26-0023	2327	2786.4	120
26-0024	2471	2930.4	120
26-0025	2309	2796	130
26-0026	2469	2956	130
26-0027	2609	3096	130

Series 5

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	t [mm]	do [mm]	m [mm]	z	b [mm]	H1 [mm]	H2 [mm]
1797/2100G2	2100	2700	180	2395	2540	48	32	2200	48	32	–	2664	18	148	130	180	158
1797/2100G2K	2100	2700	180	2392	2540	48	32	2200	48	32	–	2664	18	148	130	180	158
1797/2460G2	2460	3108	220	4091	2930	30	33	2560	30	34	–	3080	14	220	200	220	185
1797/2460G2U	2460	3108	220	4091	2930	30	33	2560	30	34	–	3080	14	220	200	220	185
1797/2460G2K	2460	3108	220	4091	2930	30	33	2560	30	34	–	3080	14	220	200	220	200
1797/2460G2K1	2460	3108	220	4091	2930	30	33	2560	30	34	–	3080	14	220	200	220	200
1797/2500G2	2500	3250	210	4597	2990	36	37	2630	36	37	–	3200	25	128	200	210	200
1797/2500K	2500	3258	260	5407	3060	36	40	2622	36	40	–	3222	18	179	190	260	240
1797/2500G2K1	2500	3258	260	5407	3060	36	40	2622	36	40	–	3222	18	179	190	260	240
1797/2600G	2600	3232.8	200	3936	3050	60	35	2700	60	35	–	3200	20	160	180	200	180
1797/2600G2	2600	3232.8	200	3936	3050	60	35	2700	60	35	–	3200	20	160	180	200	180
1797/2600G2K	2600	3232.8	200	3936	3050	60	35	2700	60	35	–	3200	20	160	180	200	180
1797/2600G2K1	2600	3232.8	200	3558	3050	60	35	2700	60	35	–	3200	20	160	180	200	180
1797/2635G	2635	3440	270	5973	3240	36	42	2755	36	42	–	3400	20	170	200	270	240
1797/2635G2	2635	3440	270	5973	3240	36	42	2755	36	42	–	3400	20	170	200	270	225
1797/3230G	3230	4100	240	7612	3820	52	37	3350	54	37	–	4050	25	162	200	240	220
1797/3230GY	3230	4100	240	7612	3820	52	37	3380	36	37	–	4050	25	162	200	240	220

Bearing No.	d[mm]	D[mm]	T[mm]
1797/2100G2	2100	2700	180
1797/2100G2K	2100	2700	180
1797/2460G2	2460	3108	220
1797/2460G2U	2460	3108	220
1797/2460G2K	2460	3108	220
1797/2460G2K1	2460	3108	220
1797/2500G2	2500	3250	210
1797/2500K	2500	3258	260
1797/2500G2K1	2500	3258	260
1797/2600G	2600	3232.8	200
1797/2600G2	2600	3232.8	200
1797/2600G2K	2600	3232.8	200
1797/2600G2K1	2600	3232.8	200
1797/2635G	2635	3440	270
1797/2635G2	2635	3440	270
1797/3230G	3230	4100	240
1797/3230GY	3230	4100	240

Series 6

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	do [mm]	m [mm]	z	b [mm]	H1 [mm]	H2 [mm]
111.40.2500	2325	2768.4	112	1100	2610	56	33	2391	56	33	2500	－	2718	18	151	90	100	100
112.40.2500	2325	2776	112	1100	2610	56	33	2391	56	33	2500	－	2720	20	136	90	100	100
111.40.2800	2625	3074.4	112	1250	2910	56	33	2691	56	33	2800	－	3024	18	168	90	100	100
112.40.2800	2625	3076	112	1250	2910	56	33	2691	56	33	2800	－	3020	20	151	90	100	100
111.50.3150	2922	3476	134	2150	3286	56	45	3014	56	45	3150	－	3420	20	171	110	122	122
112.50.3150	2922	3471.6	134	2150	3286	56	45	3014	56	45	3150	－	3410	22	155	110	122	122
111.50.3550	3322	3876	134	2470	3686	56	45	3414	56	45	3550	－	3820	20	191	110	122	122
112.50.3550	3322	3889.6	134	2470	3686	56	45	3414	56	45	3550	－	3828	22	174	110	122	122
111.50.4000	3772	4329.6	134	2800	4136	60	45	3864	60	45	4000	－	4268	22	194	110	122	122
112.50.4000	3772	4345	134	2800	4136	60	45	3864	60	45	4000	－	4275	25	171	110	122	122
111.50.4500	4272	4835.6	134	3100	4636	60	45	4364	60	45	4500	－	4774	22	217	110	122	122
112.50.4500	4272	4845	134	3100	4636	60	45	4364	60	45	4500	－	4775	25	191	110	122	122

Bearing No.	d[mm]	D[mm]	T[mm]
111.40.2500	2325	2768.4	112
112.40.2500	2325	2776	112
111.40.2800	2625	3074.4	112
112.40.2800	2625	3076	112
111.50.3150	2922	3476	134
112.50.3150	2922	3471.6	134
111.50.3550	3322	3876	134
112.50.3550	3322	3889.6	134
111.50.4000	3772	4329.6	134
112.50.4000	3772	4345	134
111.50.4500	4272	4835.6	134
112.50.4500	4272	4845	134
