2500mm- Crossed roller slewing bearing Metric Internal Gear

Crossed roller slewing ring bearing
Metric
Internal Gear

2500mm-

Series 1

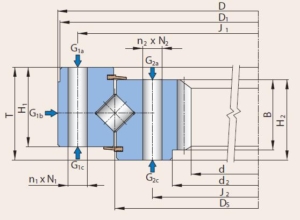

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	do [mm]	m [mm]	z	B [mm]	H1 [mm]	H2 [mm]
162.40.2368.890.11.1503	2112	2544	108	980	2478	56	33	2258	56	33	2368	－	2128	16	133	98	98	98
162.40.2368.891.41.1503	2112	2544	108	980	2478	56	33	2258	56	33	2368	－	2128	16	133	98	98	98
162.45.2366.890.11.1503	2088	2549	119	1160	2483	52	33	2249	52	33	2366	－	2106	18	117	109	109	109
162.45.2366.891.41.1503	2088	2549	119	1160	2483	52	33	2249	52	33	2366	－	2106	18	117	109	109	109
162.45.2510.890.11.1503	2232	2693	119	1231	2627	56	33	2393	56	33	2510	－	2250	18	125	109	109	109
162.45.2510.891.41.1503	2232	2693	119	1231	2627	56	33	2393	56	33	2510	－	2250	18	125	109	109	109
162.45.2654.890.11.1503	2376	2837	119	1302	2771	60	33	2537	60	33	2654	－	2394	18	133	109	109	109
162.45.2654.891.41.1503	2376	2837	119	1302	2771	60	33	2537	60	33	2654	－	2394	18	133	109	109	109
162.50.2500.891.41.1503	2200	2691	130	1423	2625	60	33	2375	60	33	2500	－	2220	20	111	120	120	120
162.50.2660.891.41.1503	2360	2851	130	1515	2785	64	33	2535	64	33	2500	－	2380	20	119	120	120	120
162.50.2800.891.41.1503	2500	2991	130	1588	2925	72	33	2675	72	33	2800	－	2520	20	126	120	120	120
162.50.3000.891.41.1503	2700	3191	130	1706	3125	76	33	2875	76	33	3000	－	2720	20	136	120	120	120

Bearing No.	d[mm]	D[mm]	T[mm]
162.40.2368.890.11.1503	2112	2544	108
162.40.2368.891.41.1503	2112	2544	108
162.45.2366.890.11.1503	2088	2549	119
162.45.2366.891.41.1503	2088	2549	119
162.45.2510.890.11.1503	2232	2693	119
162.45.2510.891.41.1503	2232	2693	119
162.45.2654.890.11.1503	2376	2837	119
162.45.2654.891.41.1503	2376	2837	119
162.50.2500.891.41.1503	2200	2691	130
162.50.2660.891.41.1503	2360	2851	130
162.50.2800.891.41.1503	2500	2991	130
162.50.3000.891.41.1503	2700	3191	130

Series 2

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	do [mm]	m [mm]	z	B [mm]	H1 [mm]	H2 [mm]
9I-1Z60-2435-1221	2092	2650	190	2267	2580	48	39	2290	48	39	2435	－	2112	16	132	110	154	154
9I-1Z60-2435-1218	2126.3	2650	230	2363	2580	48	40	2290	48	40	2435	－	2160	18	120	110	200	174

Bearing No.	d[mm]	D[mm]	T[mm]
9I-1Z60-2435-1221	2092	2650	190
9I-1Z60-2435-1218	2126.3	2650	230

Series 3

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	do [mm]	m [mm]	z	B [mm]	H1 [mm]	H2 [mm]
07 2400 00	2110	2590	160	1626	2520	(80-1)	30	2280	80	30	2400		2142	18	118	145	135	145
07 2810 09	2495	3020	158	2154	2950	(72-1)	36	2670	72	36	2810		2532	20	126	148	140	148
07240000	2110	2590	160	1626	2520	(80-1)	30	2280	80	30	2400		2142	18	118	145	135	145
07281009	2495	3020	158	2154	2950	(72-1)	36	2670	72	36	2810		2532	20	126	148	140	148

Bearing No.	d[mm]	D[mm]	T[mm]
07 2400 00	2110	2590	160
07 2810 09	2495	3020	158
07240000	2110	2590	160
07281009	2495	3020	158

Series 4

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	do [mm]	m [mm]	z	B [mm]	H1 [mm]	H2 [mm]
27-0020	2112	2544	108	980	2478	56	33	2258	56	33	2370	－	2128	16	133	98	98	98
27-0022	2088	2549	120	1160	2483	52	33	2249	52	33	2365	－	2106	18	117	110	110	110
27-0023	2232	2693	120	1231	2627	56	33	2393	56	33	2510	－	2250	18	125	110	110	110
27-0024	2376	2837	120	1302	2771	60	33	2537	60	33	2655	－	2394	18	133	110	110	110
27-0025	2200	2691	130	1425	2625	60	33	2375	60	33	2500	－	2220	20	111	120	120	120
27-0026	2360	2851	130	1515	2785	64	33	2535	64	33	2660	－	2380	20	119	120	120	120
27-0027	2500	2991	130	1590	2925	72	33	2675	72	33	2800	－	2520	20	126	120	120	120

Bearing No.	d[mm]	D[mm]	T[mm]
27-0020	2112	2544	108
27-0022	2088	2549	120
27-0023	2232	2693	120
27-0024	2376	2837	120
27-0025	2200	2691	130
27-0026	2360	2851	130
27-0027	2500	2991	130

Series 5

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	do [mm]	m [mm]	z	b [mm]	H1 [mm]	H2 [mm]
113.40.2500	2239.2	2678	112	1100	2610	56	33	2391	56	33	2500	－	2250	18	125	90	100	100
114.40.2500	2228	2678	112	1100	2610	56	33	2391	56	33	2500	－	2240	20	112	90	100	100
113.40.2800	2527.2	2978	112	1250	2910	56	33	2691	56	33	2800	－	2538	18	141	90	100	100
114.40.2800	2528	2978	112	1250	2910	56	33	2691	56	33	2800	－	2540	20	127	90	100	100
113.50.3150	2828	3376	134	2150	3286	56	45	3014	56	45	3150	－	2840	20	142	110	122	122
114.50.3150	2824.8	3376	134	2150	3286	56	45	3014	56	45	3150	－	2838	22	129	110	122	122
113.50.3550	3228	3776	134	2470	3686	56	45	3414	56	45	3550	－	3240	20	162	110	122	122
114.50.3550	3220.8	3776	134	2470	3686	56	45	3414	56	45	3550	－	3234	22	147	110	122	122
113.50.4000	3660.8	4226	134	2800	4136	60	45	3864	60	45	4000	－	3674	22	167	110	122	122
114.50.4000	3660	4226	134	2800	4136	60	45	3864	60	45	4000	－	3675	25	147	110	122	122
113.50.4500	4166.8	4726	134	3100	4636	60	45	4364	60	45	4500	－	4180	22	190	110	122	122
114.50.4500	4160	4726	134	3100	4636	60	45	4364	60	45	4500	－	4175	25	167	110	122	122

Bearing No.	d[mm]	D[mm]	T[mm]
113.40.2500	2239.2	2678	112
114.40.2500	2228	2678	112
113.40.2800	2527.2	2978	112
114.40.2800	2528	2978	112
113.50.3150	2828	3376	134
114.50.3150	2824.8	3376	134
113.50.3550	3228	3776	134
114.50.3550	3220.8	3776	134
113.50.4000	3660.8	4226	134
114.50.4000	3660	4226	134
113.50.4500	4166.8	4726	134
114.50.4500	4160	4726	134
