Four point contact ball slewing ring bearing
Metric
Ungeared
Series 1

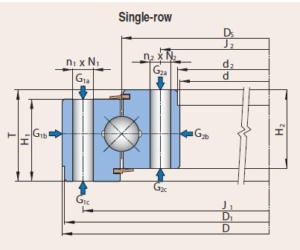

D:Outer diameter d:Inner diameter
T:Overall height N1:External bolt hole diameter
J1:External bolt circle diameter n1:Number of bolt holes per hole circle
J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle
N2:Internal bolt hole diameter H1:Outer ring height
| Bearing No. | d [mm] | D [mm] | T [mm] | [kg] | J1 [mm] | n1 | N1 [mm] | J2 [mm] | n2 | N2 [mm] | Ds [mm] | t [mm] | H1 [mm] | H2 [mm] |
| 9O-1B32-3145-1172 | 3017 | 3271.8 | 85.7 | 671 | – | – | – | – | – | – | 3145 | – | – | – |
| Bearing No. | d[mm] | D[mm] | T[mm] |
| 9O-1B32-3145-1172 | 3017 | 3271.8 | 85.7 |
Series 2
D:Outer diameter d:Inner diameter
T:Overall height N1:External bolt hole diameter
J1:External bolt circle diameter n1:Number of bolt holes per hole circle
J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle
N2:Internal bolt hole diameter H1:Outer ring height
| Bearing No. | d [mm] | D [mm] | T [mm] | [kg] | J1 [mm] | n1 | N1 [mm] | J2 [mm] | n2 | N2 [mm] | Ds [mm] | t [mm] | H1 [mm] | H2 [mm] |
| VU.10.2920 | 2690 | 3155 | 250 | 3415 | 3085 | 52 | 39 | 2750 | 52 | 39 | – | – | – | – |
| Bearing No. | d[mm] | D[mm] | T[mm] |
| VU.10.2920 | 2690 | 3155 | 250 |
Series 3
D:Outer diameter d:Inner diameter
T:Overall height N1:External bolt hole diameter
J1:External bolt circle diameter n1:Number of bolt holes per hole circle
J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle
N2:Internal bolt hole diameter H1:Outer ring height
| Bearing No. | d [mm] | D [mm] | T [mm] | [kg] | J1 [mm] | n1 | N1 [mm] | J2 [mm] | n2 | N2 [mm] | Ds [mm] | t [mm] | H1 [mm] | H2 [mm] |
| 010.60.2500 | 2325 | 2678 | 144 | 1400 | 2610 | 56 | 33 | 2325 | 56 | 33 | 2500 | – | 132 | 132 |
| 010.60.2800 | 2625 | 2978 | 144 | 1600 | 2910 | 56 | 33 | 2625 | 56 | 33 | 2800 | – | 132 | 132 |
| 010.75.3150 | 2922 | 3376 | 174 | 2800 | 3286 | 56 | 45 | 2922 | 56 | 45 | 3150 | – | 162 | 162 |
| 010.75.3550 | 3322 | 3776 | 174 | 3200 | 3686 | 56 | 45 | 3322 | 56 | 45 | 3550 | – | 162 | 162 |
| 010.75.4000 | 3772 | 4226 | 174 | 3600 | 4136 | 60 | 45 | 3772 | 60 | 45 | 4000 | – | 162 | 162 |
| 010.75.4500 | 4272 | 4726 | 174 | 4000 | 4636 | 60 | 45 | 4272 | 60 | 45 | 4500 | – | 162 | 162 |
| 010.40.2500 | 2325 | 2678 | 144 | 1400 | 2610 | 56 | 33 | 2391 | 56 | 33 | 2500 | – | 132 | 132 |
| 010.40.2800 | 2625 | 2978 | 144 | 1600 | 2910 | 56 | 33 | 2691 | 56 | 33 | 2800 | – | 132 | 132 |
| 010.50.3150 | 2922 | 3376 | 174 | 2800 | 3286 | 56 | 45 | 3014 | 56 | 45 | 3150 | – | 162 | 162 |
| 010.50.3550 | 3322 | 3776 | 174 | 3200 | 3686 | 56 | 45 | 3414 | 56 | 45 | 3550 | – | 162 | 162 |
| 010.50.4000 | 3772 | 4226 | 174 | 3600 | 4136 | 60 | 45 | 3864 | 60 | 45 | 4000 | – | 162 | 162 |
| 010.50.4500 | 4272 | 4726 | 174 | 4000 | 4636 | 60 | 45 | 4364 | 60 | 45 | 4500 | – | 162 | 162 |
| Bearing No. | d[mm] | D[mm] | T[mm] |
| 010.60.2500 | 2325 | 2678 | 144 |
| 010.60.2800 | 2625 | 2978 | 144 |
| 010.75.3150 | 2922 | 3376 | 174 |
| 010.75.3550 | 3322 | 3776 | 174 |
| 010.75.4000 | 3772 | 4226 | 174 |
| 010.75.4500 | 4272 | 4726 | 174 |
| 010.40.2500 | 2325 | 2678 | 144 |
| 010.40.2800 | 2625 | 2978 | 144 |
| 010.50.3150 | 2922 | 3376 | 174 |
| 010.50.3550 | 3322 | 3776 | 174 |
| 010.50.4000 | 3772 | 4226 | 174 |
| 010.50.4500 | 4272 | 4726 | 174 |
Series 4
D:Outer diameter d:Inner diameter
T:Overall height N1:External bolt hole diameter
J1:External bolt circle diameter n1:Number of bolt holes per hole circle
J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle
N2:Internal bolt hole diameter H1:Outer ring height
| Bearing No. | d [mm] | D [mm] | T [mm] | [kg] | J1 [mm] | n1 | N1 [mm] | J2 [mm] | n2 | N2 [mm] | Ds [mm] | t [mm] | H1 [mm] | H2 [mm] |
| VS285A00 | 2590 | 2853 | 108 | 830 | 2813 | 24 | M18 | 2625 | 24 | M18 | 2719.5 | – | – | – |
| Bearing No. | d[mm] | D[mm] | T[mm] |
| VS285A00 | 2590 | 2853 | 108 |
