39.3700in-98.4251in Four point ball slewing ringInchExternal

Four point contact ball slewing ring bearing
Inch
External gear

39.3700in-98.4251in

Series 1

JCB BEARING four point contact ball external gear 39.3700in~98.4251in

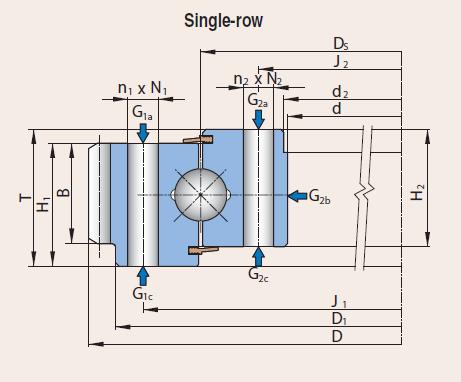

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [in]	D [in]	T [in]	[Ibs]	J1 [in]	n1	N1 [in]	J2 [in]	n2	N2 [in]	Ds [in]	H1 [in]	H2 [in]	PD [in]	DP or (m)	z	B [in]
A10-34E6	29.500	39.400	3.250	387	37.125	30	3/4-10	31.125	36	3/4-10	34.125	2.880	2.880	39.333	3	118	2.50
A12-34E2AG	29.620	39.833	4.920	390	35.750	24	1-8	30.000	30-1	1.13	33.630	4.530	3.750	38.250	4	153	3.27
A13-38E1	32.530	45.600	4.630	669	41.500	28	1.06	34.500	35	1.06	38.000	3.380	4.250	44.800	2.5	112	2.88
A8-39E12	34.880	42.598	3.230	310	39.961	30	M16x2	36.299	30	M16x2	38.445	2.870	2.640	41.260	3.175	131	2.87
A8-41E1	36.290	46.640	3.500	456	43.500	36	0.94	37.875	36	0.94	40.865	3.000	2.620	46.000	2.5	115	3.00
A12-42E3	36.750	48.533	4.000	688	45.250	36	1.00-8	38.750	42-1	1.00-8	42.005	3.500	3.500	48.000	3	144	2.75
A18-46E4D	39.030	55.000	4.750	1186	50.250	27	1.31	41.375	36-1	1.31	45.850	4.380	4.380	54.000	2	108	4.00
A10-47E1	42.000	54.300	4.630	783	50.375	30	1.06	44.125	36	1.06	47.250	3.630	3.630	53.500	2	107	3.00
A12-48E12	43.000	54.240	4.000	720	50.790	36	0.94	44.690	36	0.94	47.755	3.380	3.500	53.600	2.5	134	3.25
A14-48E22	41.380	56.240	4.750	1170	52.000	36	1.25-7	44.000	36	1.25-7	48.000	3.850	4.400	55.600	2.5	139	3.85
A16-53E1A	47.120	61.300	5.880	1540	57.375	40	1.06	49.250	45-1	1.06	53.315	4.690	4.690	60.500	2	121	4.00
A18-60E2	51.750	68.800	5.500	1972	64.250	54	1.25-7	54.500	54-1	1.25-7	59.500	5.130	5.130	68.000	2	136	3.75
A18-74E3	65.500	84.571	7.000	2940	78.625	60	1.38	68.750	52	1.38	74.000	5.440	6.190	83.429	1.75	146	4.38
A16-78E4	71.310	86.800	5.000	2033	82.125	48	1.31	73.688	48	1.31	77.895	4.500	4.500	86.000	2	172	4.00
A18-80E1	69.500	91.199	7.000	4806	85.500	48	1.50-6	73.000	52-1	1.50-6	79.500	6.500	6.500	90.286	1.75	158	5.00
S8-50E1	46.500	54.867	2.880	417	52.500	24	0.56	47.500	24	0.56	50.000	2.620	2.250	54.333	3	163	2.620
S8-56E1	52.500	60.867	2.880	469	58.500	24	0.56	53.500	24	0.56	56.000	2.620	2.250	60.333	3	181	2.620
S10-63E1	58.380	67.867	3.190	629	65.500	24	0.69	59.500	24	0.69	62.500	2.880	2.560	67.333	3	202	2.880
S12-70E1	65.380	76.240	3.440	906	73.250	24	0.81	66.750	24	0.81	70.000	3.120	2.810	75.600	2.5	189	3.120
S14-80E1	74.620	86.640	4.380	1440	83.500	24	0.94	76.250	24	0.94	79.875	4.000	3.380	86.000	2.5	215	4.000
S14-90E1	84.620	96.640	4.380	1624	93.500	24	0.94	86.250	24	0.94	89.875	4.000	3.380	96.000	2.5	240	4.000

Bearing No.	d[in]	D[in]	T[in]
A10-34E6	29.500	39.400	3.250
A12-34E2AG	29.620	39.833	4.920
A13-38E1	32.530	45.600	4.630
A8-39E12	34.880	42.598	3.230
A8-41E1	36.290	46.640	3.500
A12-42E3	36.750	48.533	4.000
A18-46E4D	39.030	55.000	4.750
A10-47E1	42.000	54.300	4.630
A12-48E12	43.000	54.240	4.000
A14-48E22	41.380	56.240	4.750
A16-53E1A	47.120	61.300	5.880
A18-60E2	51.750	68.800	5.500
A18-74E3	65.500	84.571	7.000
A16-78E4	71.310	86.800	5.000
A18-80E1	69.500	91.199	7.000
S8-50E1	46.500	54.867	2.880
S8-56E1	52.500	60.867	2.880
S10-63E1	58.380	67.867	3.190
S12-70E1	65.380	76.240	3.440
S14-80E1	74.620	86.640	4.380
S14-90E1	84.620	96.640	4.380

Series 2

JCB BEARING four point contact ball external gear 39.3700in~98.4251in

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [in]	D [in]	T [in]	[Ibs]	J1 [in]	n1	N1 [in]	J2[in]	n2	N2 [in]	Ds [in]	H1 [in]	H2 [in]	PD [in]	DP or (m)	z	B [in]
HS6-37E1Z	32.830	41.200	2.200	207	38.880	28	0.500-13UNC-2B	34.380	20	0.888	－	1.800	1.800	40.667	3	122	1.800
HS6-43E1Z	38.750	46.870	2.200	237	44.630	32	0.500-13UNC-2B	40.250	24	0.888	－	1.800	1.800	46.330	3	139	1.800
HT10-36E1Z	30.000	41.840	3.500	481	38.750	28	0.750-10UNC-2B	32.750	32	0.813	－	3.000	3.000	41.200	2.5	103	3.000
HT10-42E1Z	36.000	47.840	3.500	562	44.750	32	0.750-10UNC-2B	38.750	36	0.813	－	3.000	3.000	47.200	2.5	118	3.000
HT10-48E1Z	42.000	53.840	3.500	660	50.750	36	0.750-10UNC-2B	44.750	40	0.813	－	3.000	3.000	53.200	2.5	133	3.000
HT10-54E1Z	48.000	59.840	3.500	742	56.750	40	0.750-10UNC-2B	50.750	44	0.813	－	3.000	3.000	59.200	2.5	148	3.000
HT10-60E1Z	54.000	65.840	3.500	800	62.750	44	0.750-10UNC-2B	56.750	48	0.813	－	3.000	3.000	65.200	2.5	163	3.000
MTE-730	28.750	41.850	3.250	491	38.000	20	1.063	31.000	24	1.063	－	2.880	2.880	41.200	2.5	103	2.880
MTE-730T	28.750	41.850	3.250	491	38.000	20	1-8	31.000	24	1-8	－	2.880	2.880	41.200	2.5	103	2.880
MTE-870	34.250	47.444	4.250	771	43.875	24	1.188	36.250	28	1.188	－	3.875	3.875	46.800	2.5	117	3.875
MTE-870T	34.250	47.444	4.250	771	43.875	24	11/8-7	36.250	28	11/8-7	－	3.875	3.875	46.800	2.5	117	3.875
12440001	29.500	39.400	3.875	390	36.750	36	0.813	31.250	39	0.813	－	3.031	3.031	39.000	4	156	2.750
16308001	37.750	50.640	4.000	770	47.000	30	1.031	40.000	29	1.031	－	3.620	3.620	50.000	2.5	125	3.620
12288001	42.000	54.300	4.625	770	50.375	30	1.062	44.125	36	1.062	－	3.625	3.625	53.500	2	107	3.000
16309001	41.370	56.240	4.750	1133	52.000	28	1.313	44.000	28	1.313	－	3.850	3.850	55.600	2.5	139	3.850
16310001	47.125	61.300	5.875	1420	57.375	40	1.063	49.250	44	1.063	－	4.688	4.688	60.500	2	121	4.000
16311001	54.500	75.000	6.500	2865	70.250	40	1.313	58.500	40	1.313	－	5.875	5.875	74.000	2	148	4.000
16312001	66.750	85.067	7.120	3410	80.125	48	1.313	69.250	48	1.313	－	6.500	6.500	84.000	1.5	126	6.000

Bearing No.	d[in]	D[in]	T[in]
HS6-37E1Z	32.830	41.200	2.200
HS6-43E1Z	38.750	46.870	2.200
HT10-36E1Z	30.000	41.840	3.500
HT10-42E1Z	36.000	47.840	3.500
HT10-48E1Z	42.000	53.840	3.500
HT10-54E1Z	48.000	59.840	3.500
HT10-60E1Z	54.000	65.840	3.500
MTE-730	28.750	41.850	3.250
MTE-730T	28.750	41.850	3.250
MTE-870	34.250	47.444	4.250
MTE-870T	34.250	47.444	4.250
12440001	29.500	39.400	3.875
16308001	37.750	50.640	4.000
12288001	42.000	54.300	4.625
16309001	41.370	56.240	4.750
16310001	47.125	61.300	5.875
16311001	54.500	75.000	6.500
16312001	66.750	85.067	7.120
