39.3700in-98.4251in Four point ball slewing ringInchInternal

Four point contact ball slewing ring bearing
Inch
Internal gear

39.3700in-98.4251in

Series 1

JCB BEARING four point contact ball internal gear 39.3700in~98.4251in

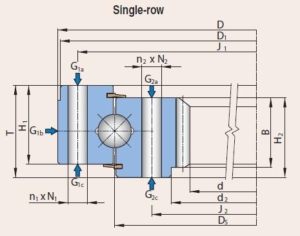

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [in]	D [in]	T [in]	[Ibs]	J1 [in]	n1	N1 [in]	J2 [in]	n2	N2 [in]	Ds [in]	H1 [in]	H2 [in]	PD [in]	DP or (m)	z	B [in]
A12-35N5	30.400	39.470	5.000	486	37.170	36	7/8-9	33.460	36	7/8-9	35.315	4.000	4.000	30.857	3.5	108	3.00
A7-38N1	33.110	41.750	2.170	232	40.157	16	5/8-11	35.630	16	5/8-11	37.890	1.890	1.890	33.701	3.175	107	1.77
A10-43N28D	37.680	46.250	4.250	448	44.650	36	3/4-10	40.940	36	3/4-10	42.830	3.380	3.750	38.400	2.5	96	2.75
A13-46N1A	39.760	51.130	4.190	722	49.125	303	1.06	43.000	223	1.00-8	45.845	3.620	3.810	40.400	2.5	101	3.81
A12-47N3E	41.760	52.750	4.780	783	51.000	30	1.06	45.250	30	1.00-8	47.435	3.880	4.130	42.400	2.5	106	3.00
A14-47N5A	41.280	52.000	5.060	770	50.375	36	0.94	44.495	40	7/8-9	46.750	3.620	4.690	41.600	2.5	104	4.00
A9-54N2	47.831	58.620	4.720	925	56.850	40	0.87	51.772	40	M20x2.5	54.140	3.540	4.090	47.717	2.1167	101	4.06
A14-54N10C	46.700	60.000	5.500	1150	58.000	36	1.06	50.500	36	1.06	54.260	4.500	4.500	47.500	2	95	3.25
A16-56N5	46.884	61.620	5.250	1295	59.750	42	1.06	51.750	42	1.06	55.745	4.500	4.250	47.429	1.75	83	4.25
A16-59N2	49.700	66.220	4.250	1400	63.500	38	1.31	55.000	36	1.31	59.255	3.880	3.880	50.667	1.5	76	3.50
A20-72N5A	61.600	79.940	5.120	2159	77.060	48-1	1.63	66.940	48	1.63	72.005	4.750	4.750	62.667	1.5	94	3.75
A18-80N1	70.267	89.000	4.880	2425	85.000	60-1	1.56	75.500	60	1.56	80.250	4.500	4.500	71.333	1.5	107	4.50

Bearing No.	d[in]	D[in]	T[in]
A12-35N5	30.400	39.470	5.000
A7-38N1	33.110	41.750	2.170
A10-43N28D	37.680	46.250	4.250
A13-46N1A	39.760	51.130	4.190
A12-47N3E	41.760	52.750	4.780
A14-47N5A	41.280	52.000	5.060
A9-54N2	47.831	58.620	4.720
A14-54N10C	46.700	60.000	5.500
A16-56N5	46.884	61.620	5.250
A16-59N2	49.700	66.220	4.250
A20-72N5A	61.600	79.940	5.120
A18-80N1	70.267	89.000	4.880

Series 2

JCB BEARING four point contact ball internal gear 39.3700in~98.4251in

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [in]	D [in]	T [in]	[Ibs]	J1 [in]	n1	N1 [in]	J2 [in]	n2	N2 [in]	Ds [in]	H1 [in]	H2 [in]	PD [in]	DP or (m)	z	B [in]
HS6-37N1Z	33.133	41.250	2.200	226	39.750	18	0.688	35.500	32	0.688	－	1.800	1.800	33.667	3	101	1.800
HS6-43N1Z	39.130	47.180	2.200	253	45.620	20	0.688	41.500	36	0.688	－	1.800	1.800	39.667	3	119	1.800
HT10-36N1Z	30.160	42.000	3.500	517	39.250	28	0.813	33.250	32	0.813	－	3.000	3.000	30.800	2.5	77	3.000
HT10-42N1Z	36.160	48.000	3.500	580	45.250	32	0.813	39.250	36	0.813	－	3.000	3.000	36.800	2.5	92	3.000
HT10-48N1Z	42.160	54.000	3.500	689	51.250	36	0.813	45.250	40	0.813	－	3.000	3.000	42.800	2.5	107	3.000
HT10-54N1Z	48.160	60.000	3.500	775	57.250	40	0.813	51.250	44	0.813	－	3.000	3.000	48.800	2.5	122	3.000
HT10-60N1Z	54.160	66.000	3.500	842	63.250	44	0.813	57.250	48	0.813	－	3.000	3.000	54.800	2.5	137	3.000
16390001	30.560	40.880	3.380	375	39.250	40	0.813	33.750	40	0.813	－	2.560	3.000	31.200	2.5	78	2.750
16374001	36.400	48.250	4.000	660	46.125	30	0.938	39.875	36	0.938	－	3.500	3.500	37.200	2.5	93	3.250
16297001	41.280	54.375	5.000	1090	52.500	48	0.938	45.250	48	0.938	－	3.875	4.625	41.600	2.5	104	3.000
16298001	47.760	62.250	4.875	1370	59.750	48	1.063	51.750	48	1.063	－	4.375	4.375	48.400	2.5	121	4.312
16299001	57.000	72.500	6.000	1900	69.750	48	1.063	61.500	48	1.063	－	5.000	5.000	58.000	2	116	4.500
16300001	62.267	81.750	6.500	3080	78.750	52	1.312	67.625	52	1.312	－	5.625	6.125	63.333	1.5	95	5.000

Bearing No.	d[in]	D[in]	T[in]
HS6-37N1Z	33.133	41.250	2.200
HS6-43N1Z	39.130	47.180	2.200
HT10-36N1Z	30.160	42.000	3.500
HT10-42N1Z	36.160	48.000	3.500
HT10-48N1Z	42.160	54.000	3.500
HT10-54N1Z	48.160	60.000	3.500
HT10-60N1Z	54.160	66.000	3.500
16390001	30.560	40.880	3.380
16374001	36.400	48.250	4.000
16297001	41.280	54.375	5.000
16298001	47.760	62.250	4.875
16299001	57.000	72.500	6.000
16300001	62.267	81.750	6.500
