Four point contact ball slewing ring bearing
Inch
Ungeared
Series 1

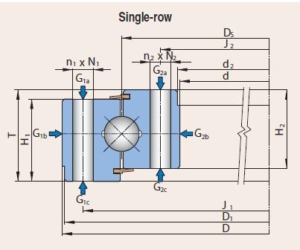

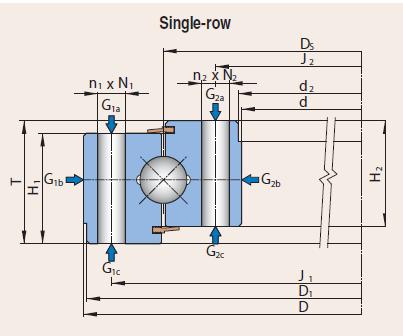

D:Outer diameter d:Inner diameter
T:Overall height N1:External bolt hole diameter
J1:External bolt circle diameter n1:Number of bolt holes per hole circle
J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle
N2:Internal bolt hole diameter H1:Outer ring height
| Bearing No. | d [in] | D [in] | T [in] | [Ibs] | J1 [in] | n1 | N1 [in] | J2 [in] | n2 | N2 [in] | Ds [in] | t [in] | H1 [in] | H2 [in] |
| A12-34P2B | 29.65 | 39.80 | 3.25 | 426 | 37.000 | 24 | 0.69 | 30.750 | 24 | 5/8-11 | 34.13 | — | 2.88 | 2.88 |
| A14-43P1 | 38.13 | 48.25 | 3.81 | 605 | 46.625 | 36 | 0.81 | 39.750 | 36 | 0.81 | 43.20 | — | 3.44 | 3.44 |
| A12-47P2 | 41.76 | 52.75 | 4.78 | 824 | 51.000 | 30 | 1.06 | 45.250 | 30 | 1.00-8 | 47.44 | — | 3.88 | 4.13 |
| A14-49P1A | 43.38 | 53.62 | 4.19 | 703 | 52.000 | 50-1 | 0.94 | 45.000 | 60 | 0.94 | 48.50 | — | 3.81 | 3.81 |
| A14-56P1E | 49.50 | 61.64 | 5.34 | 1005 | 59.625 | 36 | 1.06 | 52.000 | 36 | 1.00-8 | 55.81 | — | 4.52 | 4.09 |
| A18-60P1B | 54.00 | 66.63 | 5.63 | 1593 | 64.625 | 40 | 1.06 | 56.000 | 40 | 1.06 | 60.31 | — | 5.13 | 5.00 |
| A16-67P2 | 60.25 | 73.88 | 4.50 | 1442 | 71.250 | 60-1 | 1.31 | 62.750 | 60 | 1.25-7 | 67.01 | — | 4.00 | 4.00 |
| A16-79P1A | 72.75 | 84.75 | 4.25 | 1510 | 82.750 | 32 | 1.00-8 | 74.750 | 32 | 1.00-8 | 78.75 | — | 3.88 | 3.88 |
| A16-86P1 | 80.00 | 91.00 | 6.00 | 1822 | 89.000 | 48 | 3/4-10 | 83.000 | 48 | 3/4-10 | 85.51 | — | 4.75 | 4.75 |
| A14-89P1 | 84.50 | 49.62 | 4.63 | 1476 | 92.500 | 20 | 3/4-10 | 86.000 | 20 | 0.81 | 89.63 | — | 4.25 | 3.62 |
| A18-89P1 | 82.28 | 96.50 | 6.30 | 2623 | 93.504 | 48 | 1.30 | 84.449 | 48 | 1.3 | 89.00 | — | 4.76 | 5.91 |
| W13-35P1 | 29.53 | 40.56 | 3.74 | 510 | 38.785 | 16 | 5/8-11 | — | — | — | 35.04 | — | 3.74 | 2.96 |
| W13-38P1 | 32.28 | 43.31 | 3.74 | 564 | 41.540 | 16 | 5/8-11 | 34.250 | 16 | 5/8-11 | 37.80 | — | 3.74 | 2.96 |
| W13-43P2 | 37.40 | 48.43 | 3.74 | 629 | 46.659 | 16 | 5/8-11 | — | — | — | 42.92 | — | 3.74 | 2.96 |
| W13-49P1 | 43.31 | 55.12 | 3.94 | 807 | 52.950 | 24 | 5/8-11 | 45.470 | 24 | 5/8-11 | 49.22 | — | 3.94 | 3.16 |
| W13-51P1D | 45.28 | 57.09 | 3.94 | 860 | 54.915 | 24 | 5/8-11 | — | — | — | 51.18 | — | 3.94 | 3.16 |
| W14-60P1 | 53.15 | 66.53 | 4.33 | 1270 | 63.980 | 24 | 5/8-11 | 56.100 | 24 | 3/4-10 | 59.85 | — | 4.33 | 3.55 |
| W14-71P1 | 63.78 | 78.74 | 4.72 | 1911 | 75.390 | 24 | 5/8-11 | 67.320 | 24 | 3/4-10 | 71.26 | — | 4.72 | 3.94 |
| W16-84P1 | 75.59 | 91.34 | 5.11 | 2504 | 88.580 | 30 | 1-8 | 79.530 | 30 | 1-8 | 83.85 | — | 5.11 | 4.33 |
| Bearing No. | d[in] | D[in] | T[in] |
| A12-34P2B | 29.65 | 39.80 | 3.25 |
| A14-43P1 | 38.13 | 48.25 | 3.81 |
| A12-47P2 | 41.76 | 52.75 | 4.78 |
| A14-49P1A | 43.38 | 53.62 | 4.19 |
| A14-56P1E | 49.50 | 61.64 | 5.34 |
| A18-60P1B | 54.00 | 66.63 | 5.63 |
| A16-67P2 | 60.25 | 73.88 | 4.50 |
| A16-79P1A | 72.75 | 84.75 | 4.25 |
| A16-86P1 | 80.00 | 91.00 | 6.00 |
| A14-89P1 | 84.50 | 49.62 | 4.63 |
| A18-89P1 | 82.28 | 96.50 | 6.30 |
| W13-35P1 | 29.53 | 40.56 | 3.74 |
| W13-38P1 | 32.28 | 43.31 | 3.74 |
| W13-43P2 | 37.40 | 48.43 | 3.74 |
| W13-49P1 | 43.31 | 55.12 | 3.94 |
| W13-51P1D | 45.28 | 57.09 | 3.94 |
| W14-60P1 | 53.15 | 66.53 | 4.33 |
| W14-71P1 | 63.78 | 78.74 | 4.72 |
| W16-84P1 | 75.59 | 91.34 | 5.11 |
Series 2
D:Outer diameter d:Inner diameter
T:Overall height N1:External bolt hole diameter
J1:External bolt circle diameter n1:Number of bolt holes per hole circle
J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle
N2:Internal bolt hole diameter H1:Outer ring height
| Bearing No. | d [in] | D [in] | T [in] | [Ibs] | J1 [in] | n1 | N1 [in] | J2 [in] | n2 | N2 [in] | Ds [in] | t [in] | H1 [in] | H2 [in] |
| HS6-37P1Z | 32.830 | 41.250 | 2.200 | 233 | 39.750 | 18 | 0.688 | 34.380 | 20 | 0.688 | － | － | 1.800 | 1.800 |
| HS6-43P1Z | 38.750 | 47.180 | 2.200 | 269 | 45.600 | 20 | 0.688 | 40.250 | 24 | 0.688 | － | － | 1.800 | 1.800 |
| HT10-36P1Z | 30.000 | 42.000 | 3.500 | 521 | 39.250 | 28 | 0.813 | 32.750 | 32 | 0.813 | － | － | 3.000 | 3.000 |
| HT10-42P1Z | 36.000 | 48.000 | 3.500 | 628 | 45.250 | 32 | 0.813 | 38.750 | 36 | 0.813 | － | － | 3.000 | 3.000 |
| HT10-48P1Z | 42.000 | 54.000 | 3.500 | 719 | 51.250 | 36 | 0.813 | 44.750 | 40 | 0.813 | － | － | 3.000 | 3.000 |
| HT10-54P1Z | 48.000 | 60.000 | 3.500 | 809 | 57.250 | 40 | 0.813 | 50.750 | 44 | 0.813 | － | － | 3.000 | 3.000 |
| HT10-60P1Z | 54.000 | 66.000 | 3.500 | 865 | 63.250 | 44 | 0.813 | 56.750 | 48 | 0.813 | － | － | 3.000 | 3.000 |
| 12785001 | 28.750 | 41.850 | 3.250 | 530 | 38.000 | 20 | 1.063 | 31.000 | 24 | 1.063 | － | － | 2.880 | 2.880 |
| 12790001 | 34.250 | 47.444 | 4.250 | 835 | 43.875 | 24 | 1.188 | 36.250 | 28 | 1.188 | － | － | 3.875 | 3.875 |
| 16289001 | 52.325 | 61.250 | 3.540 | 585 | 59.625 | 30 | 0.844 | 54.000 | 30 | 0.844 | － | － | 2.800 | 2.800 |
| 16389001 | 69.094 | 87.992 | 6.024 | 3330 | 83.543 | 52 | 1.535 | 73.543 | 52 | 1.535 | － | － | 5.512 | 5.512 |
| Bearing No. | d[in] | D[in] | T[in] |
| HS6-37P1Z | 32.830 | 41.250 | 2.200 |
| HS6-43P1Z | 38.750 | 47.180 | 2.200 |
| HT10-36P1Z | 30.000 | 42.000 | 3.500 |
| HT10-42P1Z | 36.000 | 48.000 | 3.500 |
| HT10-48P1Z | 42.000 | 54.000 | 3.500 |
| HT10-54P1Z | 48.000 | 60.000 | 3.500 |
| HT10-60P1Z | 54.000 | 66.000 | 3.500 |
| 12785001 | 28.750 | 41.850 | 3.250 |
| 12790001 | 34.250 | 47.444 | 4.250 |
| 16289001 | 52.325 | 61.250 | 3.540 |
| 16389001 | 69.094 | 87.992 | 6.024 |
