50mm-1000mm Crossed roller slewing ring Metric InternalGear

Crossed roller slewing ring bearing
Metric
Internal Gear

50mm-1000mm

Series 1

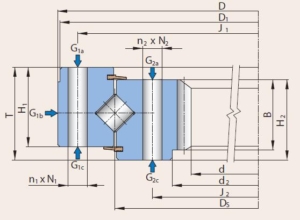

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	do [mm]	m [mm]	z	B [mm]	H1 [mm]	H2 [mm]
162.16.0400.890.11.1503	304	475	55	31	448	16	13.5	352	16	13.5	400	－	308	4	77	46	46	46
162.16.0400.891.21.1503	304	475	55	31	448	16	13.5	352	16	13.5	400	－	308	4	77	46	46	46
162.16.0450.890.11.1503	345	531	55	40	500	16	15.5	400	16	15.5	450	－	350	5	70	46	46	46
162.16.0450.891.21.1503	345	531	55	40	500	16	15.5	400	16	15.5	450	－	350	5	70	46	46	46
162.16.0560.890.11.1503	455	641	55	49	610	20	15.5	510	20	15.5	560	－	460	5	92	46	46	46
162.16.0560.891.21.1503	455	641	55	49	610	20	15.5	510	20	15.5	560	－	460	5	92	46	46	46
162.16.0630.890.11.1503	516	717	55	59	682	20	17.5	578	20	17.5	630	－	522	6	87	46	46	46
162.16.0630.891.21.1503	516	717	55	59	682	20	17.5	578	20	17.5	630	－	522	6	87	46	46	46
162.20.0450.890.11.1503	336	536	62	48	505	16	15.5	395	16	15.5	450	－	342	6	57	53	53	53
162.20.0450.891.21.1503	336	536	62	48	505	16	15.5	395	16	15.5	450	－	342	6	57	53	53	53
162.20.0560.890.11.1503	444	646	62	60	615	20	15.5	505	20	15.5	560	－	450	6	75	53	53	53
162.20.0560.891.21.1503	444	646	62	60	615	20	15.5	505	20	15.5	560	－	450	6	75	53	53	53
162.20.0630.890.11.1503	496	722	62	75	687	20	17.5	573	20	17.5	630	－	504	8	63	53	53	53
162.20.0630.891.21.1503	496	722	62	75	687	20	17.5	573	20	17.5	630	－	504	8	63	53	53	53
162.20.0710.890.11.1503	576	802	62	84	767	24	17.5	653	24	17.5	710	－	584	8	73	53	53	53
162.20.0710.891.21.1503	576	802	62	84	767	24	17.5	653	24	17.5	710	－	584	8	73	53	53	53
162.25.0764.890.11.1503	636	866	73	113	830	24	17.5	698	24	17.5	764	－	642	6	107	64	64	64
162.25.0764.891.21.1503	636	866	73	113	830	24	17.5	698	24	17.5	764	－	642	6	107	64	64	64
162.25.0886.890.11.1503	744	988	73	138	952	30	17.5	820	30	17.5	886	－	752	8	94	64	64	64
162.25.0886.891.21.1503	744	988	73	138	952	30	17.5	820	30	17.5	886	－	752	8	94	64	64	64

Bearing No.	d[mm]	D[mm]	T[mm]
162.16.0400.890.11.1503	304	475	55
162.16.0400.891.21.1503	304	475	55
162.16.0450.890.11.1503	345	531	55
162.16.0450.891.21.1503	345	531	55
162.16.0560.890.11.1503	455	641	55
162.16.0560.891.21.1503	455	641	55
162.16.0630.890.11.1503	516	717	55
162.16.0630.891.21.1503	516	717	55
162.20.0450.890.11.1503	336	536	62
162.20.0450.891.21.1503	336	536	62
162.20.0560.890.11.1503	444	646	62
162.20.0560.891.21.1503	444	646	62
162.20.0630.890.11.1503	496	722	62
162.20.0630.891.21.1503	496	722	62
162.20.0710.890.11.1503	576	802	62
162.20.0710.891.21.1503	576	802	62
162.25.0764.890.11.1503	636	866	73
162.25.0764.891.21.1503	636	866	73
162.25.0886.890.11.1503	744	988	73
162.25.0886.891.21.1503	744	988	73

Series 2

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	do [mm]	m [mm]	z	B [mm]	H1 [mm]	H2 [mm]
9I-1Z12-0288-0991	216	340	38	12	324	20	9	252	20	9	288	－	224	4	56	34	33	34
9I-1Z16-0415-0196	325.5	486	56	32	460	24	M12	375	24	13	415	－	335	5	67	48	44	48
9I-1Z16-0415-0196-1	325.5	486	56	32	460	24	13	375	24	13	415	－	335	5	67	48	44	48
9I-1Z16-0415-0510	332.8	486	56	31	460	24	M12	375	24	13	415	－	340	4	85	48	44	48
9I-1Z18-0489-1337	385	562	60	45	538	30	13	440	30	13	489	－	396	6	66	45	50	50
9I-1Z18-0635-1402	504	722	54	67	690	24	18	580	24	18	635	－	520	8	65	47	47	47
9I-1Z20-0742-1335	644	820	54	62	792	20	M12	692	20	M12	742	－	648	4	162	35	45	45
9I-1Z25-0886-0538	744	988	73	144	952	30	18	820	30	M16	886	－	752	8	94	64	64	64
9I-1Z16-0298-0556	235.9	378	57	22	－	－	－	－	－	－	298	－	－	－	－	－	－	－
9I-1Z20-0390-0557	312.1	476	84	51	－	－	－	－	－	－	390	－	－	－	－	－	－	－
9I-1Z16-0415-0189	325.5	486	56	31	－	－	－	－	－	－	415	－	－	－	－	－	－	－
9I-1Z45-0550-1362	440.5	644	91.5	90	－	－	－	－	－	－	550	－	－	－	－	－	－	－
9I-1Z14-0626-1391	517	698	60	53.5	－	－	－	－	－	－	626	－	－	－	－	－	－	－
9I-1Z30-0790-0475	634	905	85	161	860	36	21	715	36	21	790	－	648	8	81	68	75	75

Bearing No.	d[mm]	D[mm]	T[mm]
9I-1Z12-0288-0991	216	340	38
9I-1Z16-0415-0196	325.5	486	56
9I-1Z16-0415-0196-1	325.5	486	56
9I-1Z16-0415-0510	332.8	486	56
9I-1Z18-0489-1337	385	562	60
9I-1Z18-0635-1402	504	722	54
9I-1Z20-0742-1335	644	820	54
9I-1Z25-0886-0538	744	988	73
9I-1Z16-0298-0556	235.9	378	57
9I-1Z20-0390-0557	312.1	476	84
9I-1Z16-0415-0189	325.5	486	56
9I-1Z45-0550-1362	440.5	644	91.5
9I-1Z14-0626-1391	517	698	60
9I-1Z30-0790-0475	634	905	85

Series 3

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	do [mm]	m [mm]	z	B [mm]	H1 [mm]	H2 [mm]
XSI140414-N	325	484	56	31	460	24	14	375	24	M12	414	20	335	5	67	40	44.5	44.5
XSI140544-N	444	614	56	43	590	32	14	505	32	M12	544	20	456	6	76	44.5	44.5	44.5
XSI140644-N	546	714	56	50	690	36	14	605	36	M12	644	20	558	6	93	44.5	44.5	44.5
XSI140644-N-RR	546	714	56	50	690	36	14	605	36	M12	644	20	558	6	93	44.5	44.5	44.5
XSI140744-N	648	814	56	58	790	40	14	705	40	M12	744	20	660	6	110	44.5	44.5	44.5
XSI140844-N	736	914	56	69	890	40	14	805	40	M12	844	20	752	8	94	44.5	44.5	44.5
XI120288-N	216	340	38	12	324	20	9	252	20	9	288	－	224	4	56	34	33	34
XI120288-N-ZT	216	338	38	12	324	20	9	252	20	9	288	－	224	4	56	34	33	34

Bearing No.	d[mm]	D[mm]	T[mm]
XSI140414-N	325	484	56
XSI140544-N	444	614	56
XSI140644-N	546	714	56
XSI140644-N-RR	546	714	56
XSI140744-N	648	814	56
XSI140844-N	736	914	56
XI120288-N	216	340	38
XI120288-N-ZT	216	338	38

Series 4

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	do [mm]	m [mm]	z	B [mm]	H1 [mm]	H2 [mm]
07 0380 01	291	451	55	28	450	24	13.5	335	24	13.5	380		300	5	60	40	45	45
07 0489 11	385	562	60	44	538	30	13.5	440	30	13.5	489		396	6	66	43	50	50
07 0573 00	457	665	60	61	630	28	17.5	517	27	17.5	573		468	6	77	45	50	50
07 0673 00	541	771	70	96	736	32	17.5	610	32	17.5	673		552	6	91	55	60	60
07 0770 00	634	871	70	113	870	36	17.5	707	36	17.5	770		648	8	80	55	60	60
07 0849 00	706	960	75	144	914	30	22	784	30	22	849		720	8	89	60	65	65
07 0885 01	784	975	82	120	944	36	17.5	850	36	M16	885	25	800	8	100	62	67	70
07038001	291	451	55	28	450	24	13.5	335	24	13.5	380		300	5	60	40	45	45
07048911	385	562	60	44	538	30	13.5	440	30	13.5	489		396	6	66	43	50	50
07057300	457	665	60	61	630	28	17.5	517	27	17.5	573		468	6	77	45	50	50
07067300	541	771	70	96	736	32	17.5	610	32	17.5	673		552	6	91	55	60	60
07077000	634	871	70	113	870	36	17.5	707	36	17.5	770		648	8	80	55	60	60
07084900	706	960	75	144	914	30	22	784	30	22	849		720	8	89	60	65	65
07088501	784	975	82	120	944	36	17.5	850	36	M16	885	25	800	8	100	62	67	70

Bearing No.	d[mm]	D[mm]	T[mm]
07 0380 01	291	451	55
07 0489 11	385	562	60
07 0573 00	457	665	60
07 0673 00	541	771	70
07 0770 00	634	871	70
07 0849 00	706	960	75
07 0885 01	784	975	82
07038001	291	451	55
07048911	385	562	60
07057300	457	665	60
07067300	541	771	70
07077000	634	871	70
07084900	706	960	75
07088501	784	975	82

Series 5

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	do [mm]	m [mm]	z	B [mm]	H1 [mm]	H2 [mm]
RKS.162.14.0414	326.5	486	56	31	460	24	14	375	24	M12	414	－	335	5	67	44.5	44.5	44.5
RKS.162.14.0544	445.2	616	56	42	590	32	14	505	32	M12	544	－	456	6	76	44.5	44.5	44.5
RKS.162.14.0644	547.2	716	56	50	690	36	14	605	36	M12	644	－	558	6	93	44.5	44.5	44.5
RKS.162.14.0744	649.2	816	56	58	790	40	14	705	40	M12	744	－	660	6	110	44.5	44.5	44.5
RKS.162.14.0844	737.6	916	56	69	890	40	14	805	40	M12	844	－	752	8	94	44.5	44.5	44.5
RKS.111280101002	384.6	562	60	42	538	30	14	440	30	14	489	－	396	6	66	45	60	50
RKS.212140106001	567.5	825	90	133	785	26	18	640	20	18	713	－	574	7	82	67	72	78
RKS.211430101001	785.6	972	82	110	944	36	M16	850	36	M16	885	30	800	8	100	60	71	68

Bearing No.	d[mm]	D[mm]	T[mm]
RKS.162.14.0414	326.5	486	56
RKS.162.14.0544	445.2	616	56
RKS.162.14.0644	547.2	716	56
RKS.162.14.0744	649.2	816	56
RKS.162.14.0844	737.6	916	56
RKS.111280101002	384.6	562	60
RKS.212140106001	567.5	825	90
RKS.211430101001	785.6	972	82

Series 6

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	do [mm]	m [mm]	z	B [mm]	H1 [mm]	H2 [mm]
I.562.18.15.D.1-RV	384.6	562	60	44	538	30	14	440	30	14	－	－	396	6	66	45	50	45
I.665.18.15.D.1-RV	457	665	60	75	630	28	18	517	28	18	－	－	462	6	77	45	50	45
I.695.25.15.D.1-RV	446	695	85	83	640	30	21	508	30	21	－	－	456	6	76	53	69	53
I.750.25.15.D.3-RV	546	750	82	98	720	20	17	605	20	M16	－	－	558	6	93	70	66	70
I.815.25.15.D.1-RV	593	815	80	110	780	30	18	660	30	18	－	－	608	8	76	60	68	60
I.976.25.15.D.5-RV	786	976	82	124	944	36	M16	850	36	M16	－	－	800	8	100	63	66	63

Bearing No.	d[mm]	D[mm]	T[mm]
I.562.18.15.D.1-RV	384.6	562	60
I.665.18.15.D.1-RV	457	665	60
I.695.25.15.D.1-RV	446	695	85
I.750.25.15.D.3-RV	546	750	82
I.815.25.15.D.1-RV	593	815	80
I.976.25.15.D.5-RV	786	976	82

Series 7

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	do [mm]	m [mm]	z	B [mm]	H1 [mm]	H2 [mm]
27-0001	636	866	73	113	830	24	17.5	698	24	17.5	764	－	642	6	107	64	64	64
27-0002	744	988	73	138	952	30	17.5	820	30	17.5	886	－	752	8	94	64	64	64

Bearing No.	d[mm]	D[mm]	T[mm]
27-0001	636	866	73
27-0002	744	988	73

Series 8

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	do [mm]	m [mm]	z	b [mm]	H1 [mm]	H2 [mm]
113.25.500	367	602	75	80	566	20	18	434	20	18	500	－	370	5	74	60	65	65
114.25.500	368.4	602	75	80	566	20	18	434	20	18	500	－	372	6	62	60	65	65
113.25.560	427	662	75	90	626	20	18	494	20	18	560	－	430	5	86	60	65	65
114.25.560	428.4	662	75	90	626	20	18	494	20	18	560	－	432	6	72	60	65	65
113.25.630	494.4	732	75	100	696	24	18	564	24	18	630	－	498	6	83	60	65	65
114.25.630	491.2	732	75	100	696	24	18	564	24	18	630	－	496	8	62	60	65	65
113.25.710	572.4	812	75	110	776	24	18	644	24	18	710	－	576	6	96	60	65	65
114.25.710	571.2	812	75	110	776	24	18	644	24	18	710	－	576	8	72	60	65	65
113.28.800	635.2	922	82	170	878	30	22	722	30	22	800	－	640	8	80	65	72	72
114.28.800	634	922	82	170	878	30	22	722	30	22	800	－	640	10	64	65	72	72

Bearing No.	d[mm]	D[mm]	T[mm]
113.25.500	367	602	75
114.25.500	368.4	602	75
113.25.560	427	662	75
114.25.560	428.4	662	75
113.25.630	494.4	732	75
114.25.630	491.2	732	75
113.25.710	572.4	812	75
114.25.710	571.2	812	75
113.28.800	635.2	922	82
114.28.800	634	922	82

Series 9

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	do [mm]	m [mm]	z	B [mm]	H1 [mm]	H2 [mm]
V18I082	385	562	60	45	538	30	M12	440	30	M12	488	－	396	6	66	45	－	－
V18I087	385	562	60	45	538	30	M12	440	30	M12	488	－	396	6	66	45	－	－
V18I095	390	587	60	45	556	30	M12	458	30	M12	506	－	410	10	40	45	－	－
V25I208	386	620	85	85	580	24	M20	448	24	M20	514.5	－	396	6	66	53	－	－
V18I089	457	665	60	62	630	28	M16	517	28	M16	574	－	468	6	77	45	－	－
V25I185	446	695	85	100	640	30	M20	508	30	M20	575	－	456	6	76	53	－	－
V25I217	446	695	85	100	640	30	M20	508	30	M20	574.5	－	456	6	76	53	－	－
V25I215	480	715	80	100	680	30	M16	555	30	M16	615.5	－	496	8	62	65	－	－
V25I001	546	750	82	100	720	20	M16	605	20	M16	662	－	558	6	93	70	－	－
V25I209	534	771	70	100	736	32	M16	610	32	M16	673.5	－	546	6	91	60	－	－
V25I194	542	795	85	125	740	36	M20	608	36	M20	674.5	－	552	6	92	53	－	－
V25I192	593	815	80	110	780	30	M16	660	30	M16	719.5	－	608	8	76	60	－	－
V25I212	638	895	85	130	840	40	M20	708	40	M20	774.5	－	648	6	108	53	－	－
V25I167	786	976	82	110	944	36	M16	850	36	M16	886	－	800	8	100	63	－	－
V25I020	786	976	82	110	944	36	M16	850	36	M16	886	－	800	8	100	63	－	－
V25I161	786	976	82	110	944	36	M16	850	36	M16	886	－	800	8	100	63	－	－

Bearing No.	d[mm]	D[mm]	T[mm]
V18I082	385	562	60
V18I087	385	562	60
V18I095	390	587	60
V25I208	386	620	85
V18I089	457	665	60
V25I185	446	695	85
V25I217	446	695	85
V25I215	480	715	80
V25I001	546	750	82
V25I209	534	771	70
V25I194	542	795	85
V25I192	593	815	80
V25I212	638	895	85
V25I167	786	976	82
V25I020	786	976	82
V25I161	786	976	82

Series 10

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter B:Tooth width

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	do [mm]	m [mm]	z	B [mm]	H1 [mm]	H2 [mm]
XI.10.0543TNP4	441.5	632	102	73.4	602	12	18	508	20	M12	－	－	－	－	－	－	－	－

Bearing No.	d[mm]	D[mm]	T[mm]
XI.10.0543TNP4	441.5	632	102

50mm-1000mm

Series 1

Series 2

Series 3

Series 4

Series 5

Series 6

Series 7

Series 8

Series 9

Series 10

Contact Information
