50mm-1000mm Flanged four point ball Metric External Gear

Flanged four point contact ball slewing ring bearing
Metric
External Gear

50mm-1000mm

Series 1

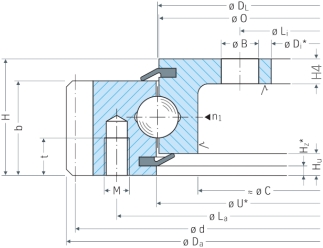

Da:Outer diameter (O.D.) Di:Inner diameter (I.D.)

H:Overall height M:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter d:Gear P.C.D.

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	M [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H4 [mm]	DL [mm]	O [mm]	U [mm]	C [mm]	Hu [mm]	d [mm]	m [mm]	z	b [mm]
231.20.0400.013 Typ 21/520.1	304	504	56	29.3	455	10	M12	332	12	18	20	4	12	414	412.5	415.5	375	10.5	495	5	99	45.5
231.20.0500.013 Typ 21/650.1	434	640.8	56	39.5	585	14	M12	462	14	18	20	4	12	544	542.5	545.5	505	10.5	630	6	105	45.5
231.20.0600.013 Typ 21/750.1	534	742.8	56	47.6	685	16	M12	562	16	18	20	4	12	644	642.5	645.5	605	10.5	732	6	122	45.5
231.20.0700.013 Typ 21/850.1	634	838.8	56	53.5	785	18	M12	662	16	18	20	4	12	744	742.5	745.5	705	10.5	828	6	138	45.5
231.20.0800.013 Typ 21/950.1	734	950.4	56	65.1	885	18	M12	762	18	18	20	4	12	844	842.5	845.5	805	10.5	936	8	117	45.5
231.20.0400.503 Typ 21/520.1	304	504	56	29.0	455	10	M12	332	24	18	20	4	12	414	412.5	415.5	375	10.5	495	5	99	45.5
231.20.0500.503 Typ 21/650.1	434	640.8	56	39.2	585	14	M12	462	28	18	20	4	12	544	542.5	545.5	505	10.5	630	6	105	45.5
231.20.0600.503 Typ 21/750.1	534	742.8	56	47.2	685	16	M12	562	32	18	20	4	12	644	642.5	645.5	605	10.5	732	6	122	45.5
231.20.0700.503 Typ 21/850.1	634	838.8	56	53.1	785	18	M12	662	32	18	20	4	12	744	742.5	745.5	705	10.5	828	6	138	45.5
231.20.0800.503 Typ 21/950.1	734	950.4	56	64.7	885	18	M12	762	36	18	20	4	12	844	842.5	845.5	805	10.5	936	8	117	45.5
231.21.0475.013 Typ 21/520.1	305	504	56	29.3	455	10	M12	332	12	18	20	4	12	414	412.5	417	375	10.5	495	5	99	45.5
231.21.0575.013 Typ 21/650.1	435	640.8	56	39.5	585	14	M12	462	14	18	20	4	12	544	542.5	547	505	10.5	630	6	105	45.5
231.21.0675.013 Typ 21/750.1	535	742.8	56	47.6	685	16	M12	562	16	18	20	4	12	644	642.5	647	605	10.5	732	6	122	45.5
231.21.0775.013 Typ 21/850.1	635	838.8	56	53.5	785	18	M12	662	16	18	20	4	12	744	742.5	747	705	10.5	828	6	138	45.5
231.21.0875.013 Typ 21/950.1	735	950.4	56	65.1	885	18	M12	762	18	18	20	4	12	844	842.5	847	805	10.5	936	8	117	45.5

Bearing No.	Di [mm]	Da [mm]	H [mm]
231.20.0400.013 Typ 21/520.1	304	504	56
231.20.0500.013 Typ 21/650.1	434	640.8	56
231.20.0600.013 Typ 21/750.1	534	742.8	56
231.20.0700.013 Typ 21/850.1	634	838.8	56
231.20.0800.013 Typ 21/950.1	734	950.4	56
231.20.0400.503 Typ 21/520.1	304	504	56
231.20.0500.503 Typ 21/650.1	434	640.8	56
231.20.0600.503 Typ 21/750.1	534	742.8	56
231.20.0700.503 Typ 21/850.1	634	838.8	56
231.20.0800.503 Typ 21/950.1	734	950.4	56
231.21.0475.013 Typ 21/520.1	305	504	56
231.21.0575.013 Typ 21/650.1	435	640.8	56
231.21.0675.013 Typ 21/750.1	535	742.8	56
231.21.0775.013 Typ 21/850.1	635	838.8	56
231.21.0875.013 Typ 21/950.1	735	950.4	56

Series 2

Da:Outer diameter (O.D.) Di:Inner diameter (I.D.)

H:Overall height M:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter d:Gear P.C.D.

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	M [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H4 [mm]	DL [mm]	O [mm]	U [mm]	C [mm]	Hu [mm]	d [mm]	m [mm]	z	b [mm]
VLA200414-N	304	503.3	56	29.5	455	10	M12	332	12	18	20	4	12	414	412.5	415.5	375	8.5	495	5	99	44.5
VLA200414-N-RL1	304	503.3	56	29.5	455	10	M12	332	12	18	20	4	12	414	412.5	415.5	375	8.5	495	5	99	44.5
VLA200414-N-RL2	304	503.3	56	29.5	455	10	M12	332	12	18	20	4	12	414	412.5	415.5	375	8.5	495	5	99	44.5
VLA200414-N-RL3	304	503.3	56	29.5	455	10	M12	332	12	18	20	4	12	414	412.5	415.5	375	8.5	495	5	99	44.5
VLA200414-N-RR	304	503.3	56	29.5	455	10	M12	332	12	18	20	4	12	414	412.5	415.5	375	8.5	495	5	99	44.5
VLA200414-N-VSP	304	503.3	56	29.5	455	10	M12	332	12	18	20	4	12	414	412.5	415.5	375	8.5	495	5	99	44.5
VLA200414-N-ZT	304	503.3	56	29.5	455	10	M12	332	12	18	20	4	12	414	412.5	415.5	375	8.5	495	5	99	44.5
VLA200414-N-VSP-ZT	304	503.3	56	29.5	455	10	M12	332	12	18	20	4	12	414	412.5	415.5	375	8.5	495	5	99	44.5
VLA200414-N-ZT-RL0	304	503.3	56	29.5	455	10	M12	332	12	18	20	4	12	414	412.5	415.5	375	8.5	495	5	99	44.5
VLA200414-N-ZT-RL1	304	503.3	56	29.5	455	10	M12	332	12	18	20	4	12	414	412.5	415.5	375	8.5	495	5	99	44.5
VLA200544-N	434	640.3	56	41.5	585	14	M12	462	14	18	20	4	12	544	542.5	545.5	505	8.5	630	6	105	44.5
VLA200544-N-RL1	434	640.3	56	41.5	585	14	M12	462	14	18	20	4	12	544	542.5	545.5	505	8.5	630	6	105	44.5
VLA200544-N-RR	434	640.3	56	41.5	585	14	M12	462	14	18	20	4	12	544	542.5	545.5	505	8.5	630	6	105	44.5
VLA200544-N-VSP	434	640.3	56	41.5	585	14	M12	462	14	18	20	4	12	544	542.5	545.5	505	8.5	630	6	105	44.5
VLA200544-N-ZT	434	640.3	56	41.5	585	14	M12	462	14	18	20	4	12	544	542.5	545.5	505	8.5	630	6	105	44.5
VLA200544-N-VSP-ZT	434	640.3	56	41.5	585	14	M12	462	14	18	20	4	12	544	542.5	545.5	505	8.5	630	6	105	44.5
VLA200544-N-ZT-RL1	434	640.3	56	41.5	585	14	M12	462	14	18	20	4	12	544	542.5	545.5	505	8.5	630	6	105	44.5
VLA 200544 N_RL2	434	640.3	56	41.5	585	14	M12	462	14	18	20	4	12	544	542.5	545.5	505	8.5	630	6	105	44.5
VLA200644-N	534	742.3	56	48.5	685	16	M12	562	16	18	20	4	12	644	642.5	645.5	605	8.5	732	6	122	44.5
VLA200644-N-RL1	534	742.3	56	48.5	685	16	M12	562	16	18	20	4	12	644	642.5	645.5	605	8.5	732	6	122	44.5
VLA200644-N-RL2	534	742.3	56	48.5	685	16	M12	562	16	18	20	4	12	644	642.5	645.5	605	8.5	732	6	122	44.5
VLA200644-N-VSP	534	742.3	56	48.5	685	16	M12	562	16	18	20	4	12	644	642.5	645.5	605	8.5	732	6	122	44.5
VLA200644-N-ZT	534	742.3	56	48.5	685	16	M12	562	16	18	20	4	12	644	642.5	645.5	605	8.5	732	6	122	44.5
VLA200644-N-ZT-RL1	534	742.3	56	48.5	685	16	M12	562	16	18	20	4	12	644	642.5	645.5	605	8.5	732	6	122	44.5
VLA200744-N	634	838.1	56	54.5	785	18	M12	662	16	18	20	4	12	744	742.5	745.5	705	8.5	828	6	138	44.5
VLA200744-N-RL1	634	838.1	56	54.5	785	18	M12	662	16	18	20	4	12	744	742.5	745.5	705	8.5	828	6	138	44.5
VLA200744-N-RL2	634	838.1	56	54.5	785	18	M12	662	16	18	20	4	12	744	742.5	745.5	705	8.5	828	6	138	44.5
VLA200744-N-VSP	634	838.1	56	54.5	785	18	M12	662	16	18	20	4	12	744	742.5	745.5	705	8.5	828	6	138	44.5
VLA200744-N-ZT	634	838.1	56	54.5	785	18	M12	662	16	18	20	4	12	744	742.5	745.5	705	8.5	828	6	138	44.5
VLA200744-N-VSP-ZT	634	838.1	56	54.5	785	18	M12	662	16	18	20	4	12	744	742.5	745.5	705	8.5	828	6	138	44.5
VLA 200744 N ZT_RL1	634	838.1	56	54.5	785	18	M12	662	16	18	20	4	12	744	742.5	745.5	705	8.5	828	6	138	44.5
VLA200844-N	734	950.1	56	65.5	885	18	M12	762	18	18	20	4	12	844	842.5	845.5	805	8.5	936	8	117	44.5
VLA200844-N-RL1	734	950.1	56	65.5	885	18	M12	762	18	18	20	4	12	844	842.5	845.5	805	8.5	936	8	117	44.5
VLA200844-N-VSP	734	950.1	56	65.5	885	18	M12	762	18	18	20	4	12	844	842.5	845.5	805	8.5	936	8	117	44.5
VLA200844-N-VSP-ZT	734	950.1	56	65.5	885	18	M12	762	18	18	20	4	12	844	842.5	845.5	805	8.5	936	8	117	44.5

Bearing No.	Di [mm]	Da [mm]	H [mm]
VLA200414-N	304	503.3	56
VLA200414-N-RL1	304	503.3	56
VLA200414-N-RL2	304	503.3	56
VLA200414-N-RL3	304	503.3	56
VLA200414-N-RR	304	503.3	56
VLA200414-N-VSP	304	503.3	56
VLA200414-N-ZT	304	503.3	56
VLA200414-N-VSP-ZT	304	503.3	56
VLA200414-N-ZT-RL0	304	503.3	56
VLA200414-N-ZT-RL1	304	503.3	56
VLA200544-N	434	640.3	56
VLA200544-N-RL1	434	640.3	56
VLA200544-N-RR	434	640.3	56
VLA200544-N-VSP	434	640.3	56
VLA200544-N-ZT	434	640.3	56
VLA200544-N-VSP-ZT	434	640.3	56
VLA200544-N-ZT-RL1	434	640.3	56
VLA 200544 N_RL2	434	640.3	56
VLA200644-N	534	742.3	56
VLA200644-N-RL1	534	742.3	56
VLA200644-N-RL2	534	742.3	56
VLA200644-N-VSP	534	742.3	56
VLA200644-N-ZT	534	742.3	56
VLA200644-N-ZT-RL1	534	742.3	56
VLA200744-N	634	838.1	56
VLA200744-N-RL1	634	838.1	56
VLA200744-N-RL2	634	838.1	56
VLA200744-N-VSP	634	838.1	56
VLA200744-N-ZT	634	838.1	56
VLA200744-N-VSP-ZT	634	838.1	56
VLA 200744 N ZT_RL1	634	838.1	56
VLA200844-N	734	950.1	56
VLA200844-N-RL1	734	950.1	56
VLA200844-N-VSP	734	950.1	56
VLA200844-N-VSP-ZT	734	950.1	56

Series 3

Da:Outer diameter (O.D.) Di:Inner diameter (I.D.)

H:Overall height M:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter d:Gear P.C.D.

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	M [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H4 [mm]	DL [mm]	O [mm]	U [mm]	C [mm]	Hu [mm]	d [mm]	m [mm]	z	b [mm]
21 0411 01	304	505	56	32	455	10	M12	332	12	18	20	4	12	411	409.5	412.5	368	10	495	5	99	46
21 0541 01	434	640	56	43	585	14	M12	462	14	18	20	4	12	541	539.5	542.5	498	10	630	6	105	46
21 0641 01	534	742	56	52	685	16	M12	562	16	18	20	4	12	641	639.5	642.5	598	10	732	6	122	46
21 0741 01	634	840	56	58	785	18	M12	662	16	18	20	4	12	741	739.5	742.5	698	10	828	6	138	46
21 0841 01	734	950	56	70	885	18	M12	762	18	18	20	4	12	841	839.5	842.5	798	10	936	8	117	46
21041101	304	505	56	32	455	10	M12	332	12	18	20	4	12	411	409.5	412.5	368	10	495	5	99	46
21054101	434	640	56	43	585	14	M12	462	14	18	20	4	12	541	539.5	542.5	498	10	630	6	105	46
21064101	534	742	56	52	685	16	M12	562	16	18	20	4	12	641	639.5	642.5	598	10	732	6	122	46
21074101	634	840	56	58	785	18	M12	662	16	18	20	4	12	741	739.5	742.5	698	10	828	6	138	46
21084101	734	950	56	70	885	18	M12	762	18	18	20	4	12	841	839.5	842.5	798	10	936	8	117	46

Bearing No.	Di[mm]	Da[mm]	H[mm]
21 0411 01	304	505	56
21 0541 01	434	640	56
21 0641 01	534	742	56
21 0741 01	634	840	56
21 0841 01	734	950	56
21041101	304	505	56
21054101	434	640	56
21064101	534	742	56
21074101	634	840	56
21084101	734	950	56

Series 4

Da:Outer diameter (O.D.) Di:Inner diameter (I.D.)

H:Overall height M:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter d:Gear P.C.D.

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	M [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H4 [mm]	DL [mm]	O [mm]	U [mm]	C [mm]	Hu [mm]	d [mm]	m [mm]	z	b [mm]
91-20 0311/1-07102	204	404	56	23	355	10	M12	232	12	18	20	4	12	311	312.5	315.5	269	12	395	5	79	44
91-20 0411/1-07112	304	504	56	30	455	10	M12	332	12	18	20	4	12	411	412.5	415.5	369	12	495	5	99	44
91-20 0541/1-07122	434	640.8	56	42	585	14	M12	462	14	18	20	4	12	541	542.5	545.5	499	12	630	6	105	44
91-20 0641/1-07132	534	742.8	56	53	685	16	M12	562	16	18	20	4	12	641	642.5	645.5	599	12	732	6	122	44
91-20 0741/1-07142	634	838.8	56	56	785	18	M12	662	16	18	20	4	12	741	742.5	745.5	699	12	828	6	138	44
91-20 0841/1-07152	734	950.4	56	68	885	18	M12	762	18	18	20	4	12	841	842.5	845.5	799	12	936	8	117	44
91-20 0311/1-07103	205	404	56	23	355	10	M12	232	12	18	20	4	12	311	312.5	315.5	269	12	395	5	79	44
91-20 0411/1-07113	305	504	56	30	455	10	M12	332	12	18	20	4	12	411	412.5	415.5	369	12	495	5	99	44
91-20 0541/1-07123	435	640.8	56	42	585	14	M12	462	14	18	20	4	12	541	542.5	545.5	499	12	630	6	105	44
91-20 0641/1-07133	535	742.8	56	53	685	16	M12	562	16	18	20	4	12	641	642.5	645.5	599	12	732	6	122	44
91-20 0741/1-07143	635	838.8	56	56	785	18	M12	662	16	18	20	4	12	741	742.5	745.5	699	12	828	6	138	44
91-20 0841/1-07153	735	850.4	56	68	885	18	M12	762	18	18	20	4	12	841	842.5	845.5	799	12	936	8	117	44

Bearing No.	Di[mm]	Da[mm]	H[mm]
91-20 0311/1-07102	204	404	56
91-20 0411/1-07112	304	504	56
91-20 0541/1-07122	434	640.8	56
91-20 0641/1-07132	534	742.8	56
91-20 0741/1-07142	634	838.8	56
91-20 0841/1-07152	734	950.4	56
91-20 0311/1-07103	205	404	56
91-20 0411/1-07113	305	504	56
91-20 0541/1-07123	435	640.8	56
91-20 0641/1-07133	535	742.8	56
91-20 0741/1-07143	635	838.8	56
91-20 0841/1-07153	735	850.4	56

Series 5

Da:Outer diameter (O.D.) Di:Inner diameter (I.D.)

H:Overall height M:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter d:Gear P.C.D.

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	M [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H4 [mm]	DL [mm]	O [mm]	U [mm]	C [mm]	Hu [mm]	d [mm]	m [mm]	z	b [mm]
E.505.20.00.C	304	504	56	29	455	10	M12	332	12	18	20	4	12	414	412.5	415.5	375	10	495	5	99	46
E.650.20.00.C	434	640,8	56	40	585	14	M12	462	14	18	20	4	12	544	542.5	545.5	505	10	630	6	105	46
E.750.20.00.C	534	742,8	56	47	685	16	M12	562	16	18	20	4	12	644	642.5	645.5	605	10	732	6	122	46
E.850.20.00.C	634	838,8	56	53	785	18	M12	662	16	18	20	4	12	744	742.5	745.5	705	10	828	6	138	46
E.950.20.00.C	734	950,4	56	64	885	18	M12	762	18	18	20	4	12	844	842.5	845.5	805	10	936	8	117	46

Bearing No.	Di[mm]	Da[mm]	H[mm]
E.505.20.00.C	304	504	56
E.650.20.00.C	434	640,8	56
E.750.20.00.C	534	742,8	56
E.850.20.00.C	634	838,8	56
E.950.20.00.C	734	950,4	56

Series 6

Da:Outer diameter (O.D.) Di:Inner diameter (I.D.)

H:Overall height M:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter d:Gear P.C.D.

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	M [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H4 [mm]	DL [mm]	O [mm]	U [mm]	C [mm]	Hu [mm]	d [mm]	m [mm]	z	b [mm]
RKS.21 0411	304	505	56	32	455	10	M12	332	12	18	20	4	12	411	409.5	412.5	368	10	495	5	99	46
RKS.21 0541	434	640	56	44	585	14	M12	462	14	18	20	4	12	541	539.5	542.5	498	10	630	6	105	46
RKS.21 0641	534	742	56	52	685	16	M12	562	16	18	20	4	12	641	639.5	642.5	598	10	732	6	122	46
RKS.21 0741	634	840	56	60	785	18	M12	662	16	18	20	4	12	741	739.5	742.5	698	10	828	6	138	46
RKS.21 0841	734	950	56	68	885	18	M12	762	18	18	20	4	12	841	839.5	842.5	798	10	936	8	117	46
RKS.210411	304	505	56	32	455	10	M12	332	12	18	20	4	12	411	409.5	412.5	368	10	495	5	99	46
RKS.210541	434	640	56	44	585	14	M12	462	14	18	20	4	12	541	539.5	542.5	498	10	630	6	105	46
RKS.210641	534	742	56	52	685	16	M12	562	16	18	20	4	12	641	639.5	642.5	598	10	732	6	122	46
RKS.210741	634	840	56	60	785	18	M12	662	16	18	20	4	12	741	739.5	742.5	698	10	828	6	138	46
RKS.210841	734	950	56	68	885	18	M12	762	18	18	20	4	12	841	839.5	842.5	798	10	936	8	117	46

Bearing No.	Di[mm]	Da[mm]	H[mm]
RKS.21 0411	304	505	56
RKS.21 0541	434	640	56
RKS.21 0641	534	742	56
RKS.21 0741	634	840	56
RKS.21 0841	734	950	56
RKS.210411	304	505	56
RKS.210541	434	640	56
RKS.210641	534	742	56
RKS.210741	634	840	56
RKS.210841	734	950	56

Series 7

Da:Outer diameter (O.D.) Di:Inner diameter (I.D.)

H:Overall height M:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter d:Gear P.C.D.

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	M [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H4 [mm]	DL [mm]	O [mm]	U [mm]	C [mm]	Hu [mm]	d [mm]	m [mm]	z	b [mm]
VE.10.0544F	434	642	56	40.2	585	14	M12	462	14	18	20	－	－	－	－	－	－	－	－	－	－	－
VE.10.0744F	634	834	56	56	785	16	M12	662	16	18	20	－	－	－	－	－	－	－	－	－	－	－

Bearing No.	Di[mm]	Da[mm]	H[mm]
VE.10.0544F	434	642	56
VE.10.0744F	634	834	56

Series 8

Da:Outer diameter (O.D.) Di:Inner diameter (I.D.)

H:Overall height M:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter d:Gear P.C.D.

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	M [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H4 [mm]	DL [mm]	O [mm]	U [mm]	C [mm]	Hu [mm]	d [mm]	m [mm]	z	b [mm]
20-0009	204	404	56	23	355	10	M12	232	12	18	20	4	12	314	312.5	315.5	370	10	395	5	79	46
20-0010	304	504	56	29	455	10	M12	332	12	18	20	4	12	414	412.5	415.5	370	10	495	5	99	46
20-0011	434	640,8	56	41	585	14	M12	462	14	18	20	4	12	544	542.5	545.5	500	10	630	6	105	46
20-0012	534	742,8	56	53	685	16	M12	562	16	18	20	4	12	644	642.5	645.5	600	10	732	6	122	46
20-0013	634	838,8	56	57	785	18	M12	662	16	18	20	4	12	744	742.5	745.5	700	10	828	6	138	46
20-0014	734	950,4	56	69	885	18	M12	762	18	18	20	4	12	844	842.5	845.5	800	10	936	8	117	46

Bearing No.	Di[mm]	Da[mm]	H[mm]
20-0009	204	404	56
20-0010	304	504	56
20-0011	434	640,8	56
20-0012	534	742,8	56
20-0013	634	838,8	56
20-0014	734	950,4	56

50mm-1000mm

Series 1

Series 2

Series 3

Series 4

Series 5

Series 6

Series 7

Series 8

Contact Information
