50mm-1000mm Flanged four point ball Metric Ungeared

Flanged four point contact ball slewing ring bearing
Metric
Ungeared

50mm-1000mm

Series 1

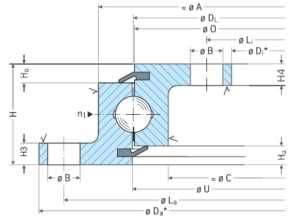

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter Ho:Distance at bottom outer ring

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H3 [mm]	H4 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	C [mm]	Hu [mm]	Ho [mm]
230.20.0400.013 Typ 21/520.0	304	518	56	23.4	490	8	18	332	12	18	–	4	12	12	414	412.5	415.5	453	375	10.5	10.5
230.20.0500.013 Typ 21/650.0	434	648	56	31.0	620	10	18	462	14	18	–	4	12	12	544	542.5	545.5	583	505	10.5	10.5
230.20.0600.013 Typ 21/750.0	534	748	56	36.4	720	12	18	562	16	18	–	4	12	12	644	642.5	645.5	683	605	10.5	10.5
230.20.0700.013 Typ 21/850.0	634	848	56	42.8	820	12	18	662	16	18	–	4	12	12	744	742.5	745.5	783	705	10.5	10.5
230.20.0800.013 Typ 21/950.0	734	948	56	47.8	920	14	18	762	18	18	–	4	12	12	844	842.5	845.5	883	805	10.5	10.5
230.20.0400.503 Typ 21/520.0	304	518	56	23.0	490	16	18	332	24	18	–	4	12	12	414	412.5	415.5	453	375	10.5	10.5
230.20.0500.503 Typ 21/650.0	434	648	56	30.4	620	20	18	462	28	18	–	4	12	12	544	542.5	545.5	583	505	10.5	10.5
230.20.0600.503 Typ 21/750.0	534	748	56	35.8	720	24	18	562	32	18	–	4	12	12	644	642.5	645.5	683	605	10.5	10.5
230.20.0700.503 Typ 21/850.0	634	848	56	42.2	820	24	18	662	32	18	–	4	12	12	744	742.5	745.5	783	705	10.5	10.5
230.20.0800.503 Typ 21/950.0	734	948	56	47.1	920	28	18	762	36	18	–	4	12	12	844	842.5	845.5	883	805	10.5	10.5
230.21.0475.013 Typ 21/520.0	305	517	56	23.4	490	8	18	332	12	18	–	4	12	12	414	412.5	415.5	453	375	10.5	10.5
230.21.0575.013 Typ 21/650.0	435	647	56	31.0	620	10	18	462	14	18	–	4	12	12	544	542.5	545.5	583	505	10.5	10.5
230.21.0675.013 Typ 21/750.0	535	747	56	36.4	720	12	18	562	16	18	–	4	12	12	644	642.5	645.5	683	605	10.5	10.5
230.21.0775.013 Typ 21/850.0	635	847	56	42.8	820	12	18	662	16	18	–	4	12	12	744	742.5	745.5	783	705	10.5	10.5
230.21.0875.013 Typ 21/950.0	735	947	56	47.8	920	14	18	762	18	18	–	4	12	12	844	842.5	845.5	883	805	10.5	10.5

Bearing No.	Di[mm]	Da[mm]	H[mm]
230.20.0400.013 Typ 21/520.0	304	518	56
230.20.0500.013 Typ 21/650.0	434	648	56
230.20.0600.013 Typ 21/750.0	534	748	56
230.20.0700.013 Typ 21/850.0	634	848	56
230.20.0800.013 Typ 21/950.0	734	948	56
230.20.0400.503 Typ 21/520.0	304	518	56
230.20.0500.503 Typ 21/650.0	434	648	56
230.20.0600.503 Typ 21/750.0	534	748	56
230.20.0700.503 Typ 21/850.0	634	848	56
230.20.0800.503 Typ 21/950.0	734	948	56
230.21.0475.013 Typ 21/520.0	305	517	56
230.21.0575.013 Typ 21/650.0	435	647	56
230.21.0675.013 Typ 21/750.0	535	747	56
230.21.0775.013 Typ 21/850.0	635	847	56
230.21.0875.013 Typ 21/950.0	735	947	56

Series 2

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter Ho:Distance at bottom outer ring

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H3 [mm]	H4 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	C [mm]	Hu [mm]	Ho [mm]
VLU200414	304	518	56	23.5	490	8	18	332	12	18	–	4	12	12	414	412.5	415.5	453	375	8.5	8.5
VLU200414-RL0	304	518	56	23.5	490	8	18	332	12	18	–	4	12	12	414	412.5	415.5	453	375	8.5	8.5
VLU200414-RL1	304	518	56	23.5	490	8	18	332	12	18	–	4	12	12	414	412.5	415.5	453	375	8.5	8.5
VLU200414-RL2	304	518	56	23.5	490	8	18	332	12	18	–	4	12	12	414	412.5	415.5	453	375	8.5	8.5
VLU200414-RL3	304	518	56	23.5	490	8	18	332	12	18	–	4	12	12	414	412.5	415.5	453	375	8.5	8.5
VLU200414-RR	304	518	56	23.5	490	8	18	332	12	18	–	4	12	12	414	412.5	415.5	453	375	8.5	8.5
VLU200414-VSP	304	518	56	23.5	490	8	18	332	12	18	–	4	12	12	414	412.5	415.5	453	375	8.5	8.5
VLU200414-ZT	304	518	56	23.5	490	8	18	332	12	18	–	4	12	12	414	412.5	415.5	453	375	8.5	8.5
VLU200414-ZT-RL0	304	518	56	23.5	490	8	18	332	12	18	–	4	12	12	414	412.5	415.5	453	375	8.5	8.5
VLU200414-ZT-RL1	304	518	56	23.5	490	8	18	332	12	18	–	4	12	12	414	412.5	415.5	453	375	8.5	8.5
VLU200414-ZT-RL2	304	518	56	23.5	490	8	18	332	12	18	–	4	12	12	414	412.5	415.5	453	375	8.5	8.5
VLU200414-ZT-RL3	304	518	56	23.5	490	8	18	332	12	18	–	4	12	12	414	412.5	415.5	453	375	8.5	8.5
VLU200544	434	648	56	31	620	10	18	462	14	18	–	4	12	12	544	542.5	545.5	583	505	8.5	8.5
VLU200544-RL1	434	648	56	31	620	10	18	462	14	18	–	4	12	12	544	542.5	545.5	583	505	8.5	8.5
VLU200544-RL2	434	648	56	31	620	10	18	462	14	18	–	4	12	12	544	542.5	545.5	583	505	8.5	8.5
VLU200544-RR	434	648	56	31	620	10	18	462	14	18	–	4	12	12	544	542.5	545.5	583	505	8.5	8.5
VLU200544-VSP	434	648	56	31	620	10	18	462	14	18	–	4	12	12	544	542.5	545.5	583	505	8.5	8.5
VLU200544-ZT	434	648	56	33.3	620	10	18	462	14	18	–	4	12	12	544	542.5	545.5	583	505	8.5	8.5
VLU200544-VSP-ZT	434	648	56	33.3	620	10	18	462	14	18	–	4	12	12	544	542.5	545.5	583	505	8.5	8.5
VLU200544-ZT-RL1	434	648	56	33.3	620	10	18	462	14	18	–	4	12	12	544	542.5	545.5	583	505	8.5	8.5
VLU200544-ZT-RL2	434	648	56	33.3	620	10	18	462	14	18	–	4	12	12	544	542.5	545.5	583	505	8.5	8.5
VLU200544-ZT-RL3	434	648	56	33.3	620	10	18	462	14	18	–	4	12	12	544	542.5	545.5	583	505	8.5	8.5
VLU200644	534	748	56	36.5	720	12	18	562	16	18	–	4	12	12	644	642.5	645.5	683	605	8.5	8.5
VLU200644-RL0	534	748	56	36.5	720	12	18	562	16	18	–	4	12	12	644	642.5	645.5	683	605	8.5	8.5
VLU200644-RL1	534	748	56	36.5	720	12	18	562	16	18	–	4	12	12	644	642.5	645.5	683	605	8.5	8.5
VLU200644-RR	534	748	56	36.5	720	12	18	562	16	18	–	4	12	12	644	642.5	645.5	683	605	8.5	8.5
VLU200644-VSP	534	748	56	36.5	720	12	18	562	16	18	–	4	12	12	644	642.5	645.5	683	605	8.5	8.5
VLU200644-ZT	534	748	56	36.5	720	12	18	562	16	18	–	4	12	12	644	642.5	645.5	683	605	8.5	8.5
VLU200744	634	848	56	42.5	820	12	18	662	16	18	–	4	12	12	744	742.5	745.5	783	705	8.5	8.5
VLU200744-RL1	634	848	56	42.5	820	12	18	662	16	18	–	4	12	12	744	742.5	745.5	783	705	8.5	8.5
VLU200744-RL3	634	848	56	42.5	820	12	18	662	16	18	–	4	12	12	744	742.5	745.5	783	705	8.5	8.5
VLU200744-RR	634	848	56	42.5	820	12	18	662	16	18	–	4	12	12	744	742.5	745.5	783	705	8.5	8.5
VLU200744-VSP	634	848	56	42.5	820	12	18	662	16	18	–	4	12	12	744	742.5	745.5	783	705	8.5	8.5
VLU200744-ZT	634	848	56	42.5	820	12	18	662	16	18	–	4	12	12	744	742.5	745.5	783	705	8.5	8.5
VLU200744-VSP-ZT	634	848	56	42.5	820	12	18	662	16	18	–	4	12	12	744	742.5	745.5	783	705	8.5	8.5
VLU200744-ZT-RL1	634	848	56	42.5	820	12	18	662	16	18	–	4	12	12	744	742.5	745.5	783	705	8.5	8.5
VLU200844	734	948	56	48	920	14	18	762	18	18	–	4	12	12	844	842.5	845.5	883	805	8.5	8.5
VLU200844-RL1	734	948	56	48	920	14	18	762	18	18	–	4	12	12	844	842.5	845.5	883	805	8.5	8.5
VLU200844-RR	734	948	56	48	920	14	18	762	18	18	–	4	12	12	844	842.5	845.5	883	805	8.5	8.5
VLU200844-VSP	734	948	56	48	920	14	18	762	18	18	–	4	12	12	844	842.5	845.5	883	805	8.5	8.5
VLU200844-ZT	734	948	56	48	920	14	18	762	18	18	–	4	12	12	844	842.5	845.5	883	805	8.5	8.5

Bearing No.	Di[mm]	Da[mm]	H[mm]
VLU200414	304	518	56
VLU200414-RL0	304	518	56
VLU200414-RL1	304	518	56
VLU200414-RL2	304	518	56
VLU200414-RL3	304	518	56
VLU200414-RR	304	518	56
VLU200414-VSP	304	518	56
VLU200414-ZT	304	518	56
VLU200414-ZT-RL0	304	518	56
VLU200414-ZT-RL1	304	518	56
VLU200414-ZT-RL2	304	518	56
VLU200414-ZT-RL3	304	518	56
VLU200544	434	648	56
VLU200544-RL1	434	648	56
VLU200544-RL2	434	648	56
VLU200544-RR	434	648	56
VLU200544-VSP	434	648	56
VLU200544-ZT	434	648	56
VLU200544-VSP-ZT	434	648	56
VLU200544-ZT-RL1	434	648	56
VLU200544-ZT-RL2	434	648	56
VLU200544-ZT-RL3	434	648	56
VLU200644	534	748	56
VLU200644-RL0	534	748	56
VLU200644-RL1	534	748	56
VLU200644-RR	534	748	56
VLU200644-VSP	534	748	56
VLU200644-ZT	534	748	56
VLU200744	634	848	56
VLU200744-RL1	634	848	56
VLU200744-RL3	634	848	56
VLU200744-RR	634	848	56
VLU200744-VSP	634	848	56
VLU200744-ZT	634	848	56
VLU200744-VSP-ZT	634	848	56
VLU200744-ZT-RL1	634	848	56
VLU200844	734	948	56
VLU200844-RL1	734	948	56
VLU200844-RR	734	948	56
VLU200844-VSP	734	948	56
VLU200844-ZT	734	948	56

Series 3

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter Ho:Distance at bottom outer ring

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H3 [mm]	H4 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	C [mm]	Hu [mm]	Ho [mm]
23 0411 01	304	518	56	25	490	8	18	332	12	18	–	4	12	12	411	409.5	412.5	454	368	10	10
23 0541 01	434	648	56	34	620	10	18	462	14	18	–	4	12	12	541	539.5	542.5	584	498	10	10
23 0641 01	534	748	56	40	720	12	18	562	16	18	–	4	12	12	641	639.5	642.5	684	598	10	10
23 0741 01	634	848	56	46	820	12	18	662	16	18	–	4	12	12	741	739.5	742.5	784	698	10	10
23 0841 01	734	948	56	52	920	14	18	762	18	18	–	4	12	12	841	839.5	842.5	884	798	10	10
23041101	304	518	56	25	490	8	18	332	12	18	–	4	12	12	411	409.5	412.5	454	368	10	10
23054101	434	648	56	34	620	10	18	462	14	18	–	4	12	12	541	539.5	542.5	584	498	10	10
23064101	534	748	56	40	720	12	18	562	16	18	–	4	12	12	641	639.5	642.5	684	598	10	10
23074101	634	848	56	46	820	12	18	662	16	18	–	4	12	12	741	739.5	742.5	784	698	10	10
23084101	734	948	56	52	920	14	18	762	18	18	–	4	12	12	841	839.5	842.5	884	798	10	10

Bearing No.	Di[mm]	Da[mm]	H[mm]
23 0411 01	304	518	56
23 0541 01	434	648	56
23 0641 01	534	748	56
23 0741 01	634	848	56
23 0841 01	734	948	56
23041101	304	518	56
23054101	434	648	56
23064101	534	748	56
23074101	634	848	56
23084101	734	948	56

Series 4

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter Ho:Distance at bottom outer ring

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H3 [mm]	H4 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	C [mm]	Hu [mm]	Ho [mm]
90-20 0311/0-07002	204	418	56	19	390	8	18	232	12	18	–	4	12	12	311	312.5	315.5	353	269	12	12
90-20 0411/0-07012	304	518	56	25	490	8	18	332	12	18	–	4	12	12	411	412.5	415.5	453	369	12	12
90-20 0541/0-07022	434	648	56	33	620	10	18	462	14	18	–	4	12	12	541	542.5	545.5	583	499	12	12
90-20 0641/0-07032	534	748	56	40	720	12	18	562	16	18	–	4	12	12	641	642.5	645.5	683	599	12	12
90-20 0741/0-07042	634	848	56	46	820	12	18	662	16	18	–	4	12	12	741	742.5	745.5	783	699	12	12
90-20 0841/0-07052	734	948	56	52	920	14	18	762	18	18	–	4	12	12	841	842.5	845.5	883	799	12	12
90-20 0311/0-07003	205	417	56	19	390	8	18	232	12	18	–	4	12	12	311	312.5	315.5	353	269	12	12
90-20 0411/0-07013	305	517	56	25	490	8	18	332	12	18	–	4	12	12	411	412.5	415.5	453	369	12	12
90-20 0541/0-07023	435	647	56	33	620	10	18	462	14	18	–	4	12	12	541	542.5	545.5	583	499	12	12
90-20 0641/0-07033	535	747	56	40	720	12	18	562	16	18	–	4	12	12	641	642.5	645.5	683	599	12	12
90-20 0741/0-07043	635	847	56	46	820	12	18	662	16	18	–	4	12	12	741	742.5	745.5	783	699	12	12
90-20 0841/0-07053	735	947	56	52	920	14	18	762	18	18	–	4	12	12	841	842.5	845.5	883	799	12	12

Bearing No.	Di[mm]	Da[mm]	H[mm]
90-20 0311/0-07002	204	418	56
90-20 0411/0-07012	304	518	56
90-20 0541/0-07022	434	648	56
90-20 0641/0-07032	534	748	56
90-20 0741/0-07042	634	848	56
90-20 0841/0-07052	734	948	56
90-20 0311/0-07003	205	417	56
90-20 0411/0-07013	305	517	56
90-20 0541/0-07023	435	647	56
90-20 0641/0-07033	535	747	56
90-20 0741/0-07043	635	847	56
90-20 0841/0-07053	735	947	56

Series 5

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter Ho:Distance at bottom outer ring

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H3 [mm]	H4 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	C [mm]	Hu [mm]	Ho [mm]
RKS.23 0411	304	518	56	25	490	8	18	332	12	18	–	4	12	12	411	409.5	412.5	454	368	10	10
RKS.23 0541	434	648	56	34	620	10	18	462	14	18	–	4	12	12	541	539.5	542.5	584	498	10	10
RKS.23 0641	534	748	56	40	720	12	18	562	16	18	–	4	12	12	641	639.5	642.5	684	598	10	10
RKS.23 0741	634	848	56	46	820	12	18	662	16	18	–	4	12	12	741	739.5	742.5	784	698	10	10
RKS.23 0841	734	948	56	52	920	14	18	762	18	18	–	4	12	12	841	839.5	842.5	884	798	10	10
RKS.230411	304	518	56	25	490	8	18	332	12	18	–	4	12	12	411	409.5	412.5	454	368	10	10
RKS.230541	434	648	56	34	620	10	18	462	14	18	–	4	12	12	541	539.5	542.5	584	498	10	10
RKS.230641	534	748	56	40	720	12	18	562	16	18	–	4	12	12	641	639.5	642.5	684	598	10	10
RKS.230741	634	848	56	46	820	12	18	662	16	18	–	4	12	12	741	739.5	742.5	784	698	10	10
RKS.230841	734	948	56	52	920	14	18	762	18	18	–	4	12	12	841	839.5	842.5	884	798	10	10

Bearing No.	Di[mm]	Da[mm]	H[mm]
RKS.23 0411	304	518	56
RKS.23 0541	434	648	56
RKS.23 0641	534	748	56
RKS.23 0741	634	848	56
RKS.23 0841	734	948	56
RKS.230411	304	518	56
RKS.230541	434	648	56
RKS.230641	534	748	56
RKS.230741	634	848	56
RKS.230841	734	948	56

Series 6

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter Ho:Distance at bottom outer ring

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H3 [mm]	H4 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	C [mm]	Hu [mm]	Ho [mm]
SD.505.20.00.C	304	518	56	23,5	490	8	18	332	12	18	–	4	12	12	414	412.5	415.5	453	375	10	10
SD.650.20.00.C	434	648	56	31	620	10	18	462	14	18	–	4	12	12	544	542.5	545.5	583	505	10	10
SD.750.20.00.C	534	748	56	36,5	720	12	18	562	16	18	–	4	12	12	644	642.5	645.5	683	605	10	10
SD.850.20.00.C	634	848	56	43	820	12	18	662	16	18	–	4	12	12	744	742.5	745.5	783	705	10	10
SD.950.20.00.C	734	948	56	48	920	14	18	762	18	18	–	4	12	12	844	842.5	845.5	883	805	10	10

Bearing No.	Di[mm]	Da[mm]	H[mm]
SD.505.20.00.C	304	518	56
SD.650.20.00.C	434	648	56
SD.750.20.00.C	534	748	56
SD.850.20.00.C	634	848	56
SD.950.20.00.C	734	948	56

Series 7

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter Ho:Distance at bottom outer ring

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H3 [mm]	H4 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	C [mm]	Hu [mm]	Ho [mm]
22-0009	204	418	56	19	390	8	18	232	12	18	–	4	12	12	314	312.5	315.5	390	370	10	10
22-0010	304	518	56	25	490	8	18	332	12	18	–	4	12	12	414	412.5	415.5	490	370	10	10
22-0011	434	648	56	33	620	10	18	462	14	18	–	4	12	12	544	542.5	545.5	620	500	10	10
22-0012	534	748	56	41	720	12	18	562	16	18	–	4	12	12	644	642.5	645.5	720	600	10	10
22-0013	634	848	56	47	820	12	18	662	16	18	–	4	12	12	744	742.5	745.5	820	700	10	10
22-0014	734	948	56	53	920	14	18	762	18	18	–	4	12	12	844	842.5	845.5	920	800	10	10

Bearing No.	Di[mm]	Da[mm]	H[mm]
22-0009	204	418	56
22-0010	304	518	56
22-0011	434	648	56
22-0012	534	748	56
22-0013	634	848	56
22-0014	734	948	56

Series 8

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter Ho:Distance at bottom outer ring

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	na	B [mm]	Li [mm]	ni	B [mm]	t [mm]	n1	H3 [mm]	H4 [mm]	DL [mm]	O [mm]	U [mm]	A [mm]	C [mm]	Hu [mm]	Ho [mm]
VU.10.0387V	300	475	50	29,7	450	12	M14	340	12	11	11	–	12	12	387	–	–	–	–	–	–
VU.10.0414V	304	518	56	24,7	490	12	18	332	8	18	–	–	12	12	414	–	–	–	–	–	–
VU.10.0544V	434	648	56	35,5	620	14	18	462	10	18	–	–	12	12	544	–	–	–	–	–	–
VU.10.0544AV	505	648	56	31,0	620	14	18	462	10	18	–	–	12	12	544	–	–	–	–	–	–
VU.10.0641V	534	748	56	40,0	720	16	18	562	12	18	–	–	12	12	641	–	–	–	–	–	–
VU.10.0741V	634	848	56	46,5	820	16	18	662	12	18	–	–	12	12	741	–	–	–	–	–	–
VU.10.0844V	734	948	56	50,5	920	18	18	762	14	18	–	–	12	12	844	–	–	–	–	–	–

Bearing No.	Di[mm]	Da[mm]	H[mm]
VU.10.0387V	300	475	50
VU.10.0414V	304	518	56
VU.10.0544V	434	648	56
VU.10.0544AV	505	648	56
VU.10.0641V	534	748	56
VU.10.0741V	634	848	56
VU.10.0844V	734	948	56

Series 9

flanged four point contact ball ungeared 50mm-1000mm

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	Li [mm]	na	B [mm]	ni	B [mm]	t [mm]	n1	D1 [mm]	d2 [mm]	DL [mm]	O [mm]	U [mm]
250.14.0300.013 Typ 13/400	233	401	40	9.6	380	260	8	14	8	14	–	4	–	–	323	348.0	298
250.14.0400.013 Typ 13/500	333	501	40	13.1	480	360	8	14	8	14	–	4	–	–	421	446.0	396
250.15.0300.013 Typ 13/400	233	401	40	9.6	380	260	8	14	8	14	–	4	–	–	323	348.0	298
250.15.0400.013 Typ 13/500	333	501	40	13.1	480	360	8	14	8	14	–	4	–	–	421	446.0	396
250.15.0375.013 Typ 13/400	234	400	40	9.6	380	260	8	14	8	14	–	4	–	–	323	348.0	298
250.15.0475.013 Typ 13/500	334	500	40	13.1	480	360	8	14	8	14	–	4	–	–	421	446.0	396

Bearing No.	Di[mm]	Da[mm]	H[mm]
250.14.0300.013 Typ 13/400	233	401	40
250.14.0400.013 Typ 13/500	333	501	40
250.15.0300.013 Typ 13/400	233	401	40
250.15.0400.013 Typ 13/500	333	501	40
250.15.0375.013 Typ 13/400	234	400	40
250.15.0475.013 Typ 13/500	334	500	40

Series 10

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	Li [mm]	B [mm]	d [mm]	DL [mm]	n1 [mm]	Da1 [mm]	O [mm]	U [mm]
310.16.0300.000·Typ 16L/400	236.0	404	42	11.0	375	260	–	16	320	4	–	346	294
310.16.0400.000·Typ 16L/500	336.0	504	42	15.0	475	360	–	16	420	4	–	446	394
310.16.0500.000·Typ 16L/650	486.0	654	42	20.0	625	510	–	16	570	4	–	596	544
310.16.0600.000·Typ 16L/750	586.0	754	42	23.0	725	610	–	16	670	4	–	696	644
310.16.0700.000·Typ 16L/850	686.0	854	42	27.0	825	710	–	16	770	4	–	796	744
310.16.0800.000·Typ 16L/950	786.0	954	42	30.0	925	810	–	16	870	4	–	896	844

Bearing No.	Di[mm]	Da[mm]	H[mm]
310.16.0300.000·Typ 16L/400	236.0	404	42
310.16.0400.000·Typ 16L/500	336.0	504	42
310.16.0500.000·Typ 16L/650	486.0	654	42
310.16.0600.000·Typ 16L/750	586.0	754	42
310.16.0700.000·Typ 16L/850	686.0	854	42
310.16.0800.000·Typ 16L/950	786.0	954	42

Series 11

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	Li [mm]	B [mm]	d [mm]	DL [mm]	n1 [mm]	Da1 [mm]	O [mm]	U [mm]

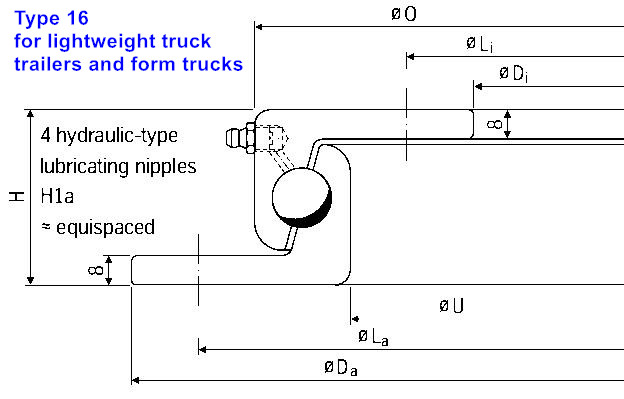

320.16.0400.000·Typ 16/500	315.0	500	48	17.0	475	340	–	16	408	4	–	434	381
320.16.0500.000·Typ 16/650	465.0	650	48	23.0	625	490	–	16	558	4	–	584	531
320.16.0600.000·Typ 16/750	565.0	750	48	26.0	725	590	–	16	658	4	–	684	631
320.16.0700.000·Typ 16/850	665.0	850	48	30.0	825	690	–	16	758	4	–	784	731
320.16.0800.000·Typ 16/950	765.0	950	48	34.0	925	790	–	16	858	4	–	884	831

Bearing No.	Di[mm]	Da[mm]	H[mm]
320.16.0400.000·Typ 16/500	315.0	500	48
320.16.0500.000·Typ 16/650	465.0	650	48
320.16.0600.000·Typ 16/750	565.0	750	48
320.16.0700.000·Typ 16/850	665.0	850	48
320.16.0800.000·Typ 16/950	765.0	950	48

Series 12

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	Li [mm]	B [mm]	d [mm]	DL [mm]	n1 [mm]	Da1 [mm]	O [mm]	U [mm]
330.16.0500.000·Typ 80/685	567.0	721	80	38.0	671	657	–	16	599	4	696	–	583
330.16.0700.000·Typ 80/880	762.0	916	80	48.0	866	852	–	16	794	4	891	–	778
330.16.0700.010·Typ 80/880	762.0	916	80	48.0	866	852	16	16	794	4	891	–	778

Bearing No.	Di[mm]	Da[mm]	H[mm]
330.16.0500.000·Typ 80/685	567.0	721	80
330.16.0700.000·Typ 80/880	762.0	916	80
330.16.0700.010·Typ 80/880	762.0	916	80

Series 13

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	Li [mm]	B [mm]	d [mm]	DL [mm]	n1 [mm]	Da1 [mm]	O [mm]	U [mm]

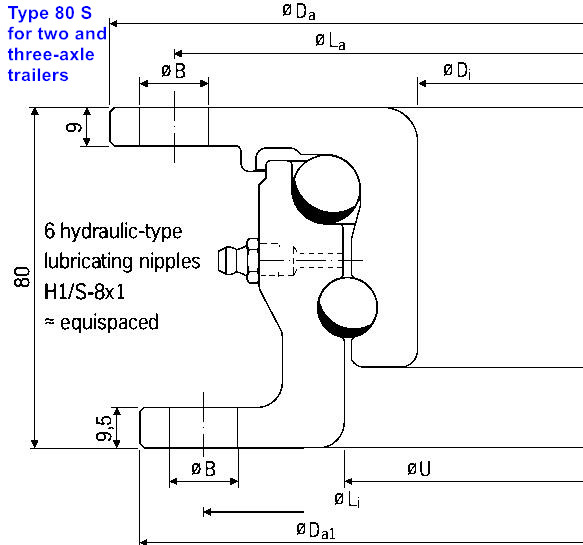

350.16.0700.000·Typ 80 S/890	749.5	894	80	57.0	–	–	–	16/14	792.5/782.5	6	880	–	784
350.16.0500.000·Typ 80 S/660	519.5	664	80	40.6	–	–	–	16/14	562.5/552.5	6	650	–	554
350.16.0710.010·Typ 80 S/890A	749.5	894	80	56.7	866	852	16	16/14	792.5/782.5	6	880	–	784
350.16.0700.010·Typ 80 S/890	749.5	894	80	56.8	866	852	16	16/14	792.5/782.5	6	880	–	784
350.16.0500.010·Typ 80 S/660	519.5	664	80	40.4	636	622	14	16/14	562.5/552.5	6	650	–	554

Bearing No.	Di[mm]	Da[mm]	H[mm]
350.16.0700.000·Typ 80 S/890	749.5	894	80
350.16.0500.000·Typ 80 S/660	519.5	664	80
350.16.0710.010·Typ 80 S/890A	749.5	894	80
350.16.0700.010·Typ 80 S/890	749.5	894	80
350.16.0500.010·Typ 80 S/660	519.5	664	80

Series 14

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	Li [mm]	B [mm]	d [mm]	A [mm]	G(n°) [mm]	Db [mm]	O [mm]	U [mm]
U.300.12	200	295	55	6	270	–	–	12.7	10	1	295	–	220
U.400.12	292	400	55	8	375	–	–	12.7	10	1	400	–	310
U.500.12	392	500	55	10	475	–	–	12.7	10	1	500	–	410
U.600.14	485	600	65	18	575	–	–	14.288	10	2	600	–	510
U.650.14	535	650	65	20	625	–	–	14.288	10	2	650	–	560
U.700.14	585	700	65	22	675	–	–	14.288	10	2	700	–	610
U.750.14	635	750	65	24	725	–	–	14.288	10	2	750	–	660
U.800.14	685	800	65	26	775	–	–	14.288	10	2	800	–	710
U.850.14	735	850	65	28	825	–	–	14.288	10	2	850	–	760
U.900.14	785	900	65	30	875	–	–	14.288	10	2	900	–	810
U.950.14	835	950	65	32	925	–	–	14.288	10	2	950	–	860
U.895.16	762	890	80	36	852	–	–	15.875	12	2	895	–	780

Bearing No.	Di[mm]	Da[mm]	H[mm]
U.300.12	200	295	55
U.400.12	292	400	55
U.500.12	392	500	55
U.600.14	485	600	65
U.650.14	535	650	65
U.700.14	585	700	65
U.750.14	635	750	65
U.800.14	685	800	65
U.850.14	735	850	65
U.900.14	785	900	65
U.950.14	835	950	65
U.895.16	762	890	80

Series 15

Da:Outer diameter Di:Inner diameter

H:Overall height B:External bolt hole diameter

La:External bolt circle diameter na:Number of bolt holes per hole circle

Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle

B:Internal bolt hole diameter

Bearing No.	Di [mm]	Da [mm]	H [mm]	[kg]	La [mm]	Li [mm]	B [mm]	d [mm]	A [mm]	G(n°) [mm]	Db [mm]	O [mm]	U [mm]
Z.400.14	215	400	52	14	375	–	–	14.288	8	4	334	–	281
Z.500.14	315	500	52	18	475	–	–	14.288	8	4	434	–	381
Z.650.14	465	650	52	24	625	–	–	14.288	8	4	584	–	531
Z.750.16	565	750	52	28	725	–	–	15.875	10	4	687	–	623
Z.850.16	665	850	52	33	825	–	–	15.875	10	4	787	–	723
Z.950.16	765	950	52	36	925	–	–	15.875	10	4	887	–	823

Bearing No.	Di[mm]	Da[mm]	H[mm]
Z.400.14	215	400	52
Z.500.14	315	500	52
Z.650.14	465	650	52
Z.750.16	565	750	52
Z.850.16	665	850	52
Z.950.16	765	950	52

50mm-1000mm

Series 1

Series 2

Series 3

Series 4

Series 5

Series 6

Series 7

Series 8

Series 9

Series 10

Series 11

Series 12

Series 13

Series 14

Series 15

Contact Information
