Crossed roller slewing ring bearing
Inch
External gear
Series 1

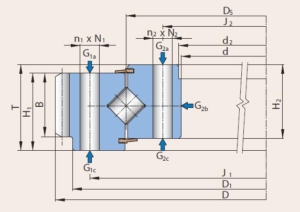

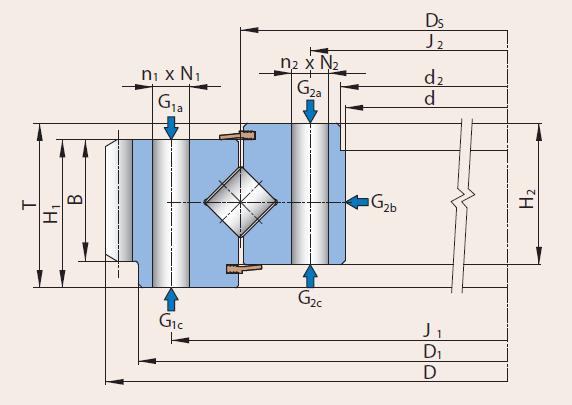

D:Outer diameter d:Inner diameter
T:Overall height N1:External bolt hole diameter
J1:External bolt circle diameter n1:Number of bolt holes per hole circle
J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle
N2:Internal bolt hole diameter B:Tooth width
| Bearing No. | d [in] | D [in] | T [in] | [Ibs] | J1 [in] | n1 | N1 [in] | J2 [in] | n2 | N2 [in] | D1 [in] | d2 [in] | H1 [in] | H2 [in] | PD [in] | DP or (m) | z | B [in] |
| 16347001 | 84.000 | 100.667 | 6.500 | 3240 | 95.000 | 48 | 1-8 | 87.000 | 48 | 1.063 | 98.750 | 84.250 | 6.500 | 4.000 | 100.000 | 3 | 300 | 6.000 |
| 16348001 | 141.732 | 159.843 | 6.142 | 5480 | 154.528 | 100 | 1.299 | 144.685 | 100 | 1.299 | － | － | 5.748 | 5.748 | 158.100 | （16） | 251 | 5.748 |
| 16393001 | 188.583 | 209.843 | 7.047 | 9750 | 202.362 | 100 | 1.299 | 191.339 | 100 | 1.299 | 206.299 | 188.858 | 6.417 | 6.024 | 206.929 | （18） | 292 | 6.102 |
