Crossed roller slewing ring bearing
Inch
Internal gear
Series 1

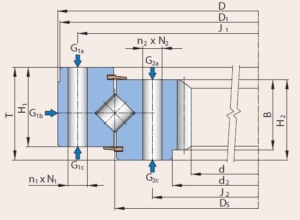

D:Outer diameter d:Inner diameter
T:Overall height N1:External bolt hole diameter
J1:External bolt circle diameter n1:Number of bolt holes per hole circle
J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle
N2:Internal bolt hole diameter B:Tooth width
| Bearing No. | d [in] | D [in] | T [in] | [Ibs] | J1 [in] | n1 | N1 [in] | J2 [in] | n2 | N2 [in] | D1 [in] | d2 [in] | H1 [in] | H2 [in] | PD [in] | DP or (m) | z | B [in] |
| 16334001 | 95.000 | 114.000 | 6.000 | 4250 | 111.000 | 48 | 1.063 | 100.000 | 48 | 1-8 | － | 97.500 | 5.500 | 5.500 | 96.000 | 2 | 192 | 5.000 |
| 16335001 | 97.717 | 121.496 | 6.772 | 6080 | 117.795 | 72 | 1.535 | 105.512 | 72 | 1.535 | － | － | 6.299 | 6.299 | 98.268 | （24） | 104 | 6.299 |
| 16336001 | 123.200 | 142.000 | 6.000 | 5370 | 139.000 | 72 | 1.063 | 128.000 | 72 | 1.063 | － | － | 5.500 | 5.500 | 124.000 | 2 | 248 | 5.500 |
