Double row ball slewing ring bearing
Inch
Internal gear

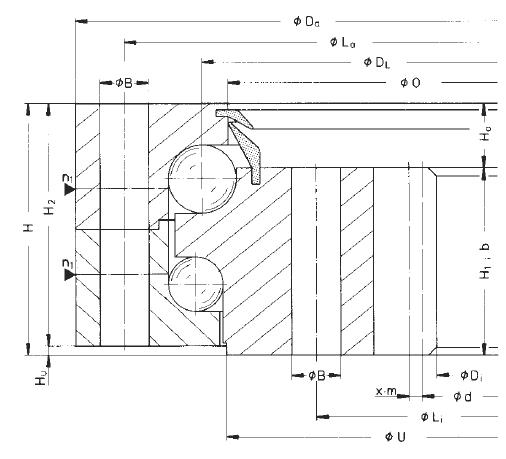

0in~39.3700in
Da:Outer diameter Di:Inner diameter
H:Overall height B:External bolt hole diameter
La:External bolt circle diameter na:Number of bolt holes per hole circle
Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle
B:Internal bolt hole diameter b:Tooth width
| Bearing No. | Di [in] | Da [in] | H [in] | [Ibs] | La [in] | na | B [in] | Li [in] | ni | B [in] | H2 [in] | H1 [in] | Ho [in] | do [in] | DP or (m) | z | b [in] | O [in] | U [in] |
| H7-35N1 | 31.00 | 38.30 | 3.23 | 270 | 37.17 | 30 | 5/8-11 | 33.46 | 30 | 5/8-11 | 3.07 | 2.28 | 0.95 | 31.43 | 3.5 | 110 | 1.97 | 33.62 | 34.60 |
| Bearing No. | Di[in] | Da[in] | H[in] |
| H7-35N1 | 31.00 | 38.30 | 3.23 |

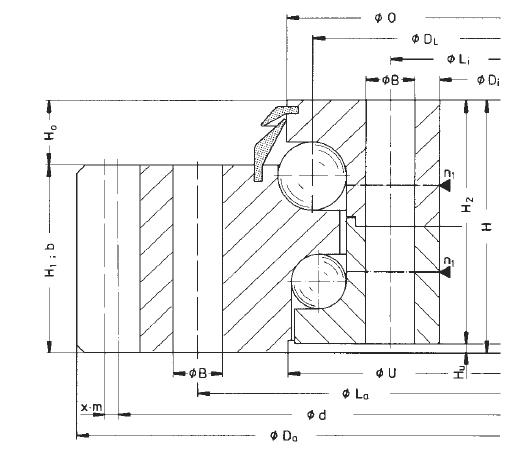

39.3700in~98.4251in
Da:Outer diameter Di:Inner diameter
H:Overall height B:External bolt hole diameter
La:External bolt circle diameter na:Number of bolt holes per hole circle
Li:Internal bolt circle diameter ni:Number of bolt holes per hole circle
B:Internal bolt hole diameter b:Tooth width
| Bearing No. | Di [in] | Da [in] | H [in] | [Ibs] | La [in] | na | B [in] | Li [in] | ni | B [in] | H2 [in] | H1 [in] | Ho [in] | do [in] | DP or (m) | z | b [in] | O [in] | U [in] |
| H7-43N1 | 37.70 | 45.80 | 3.54 | 350 | 44.65 | 36 | 5/8-11 | 40.49 | 36 | 5/8-11 | 3.07 | 2.59 | 0.95 | 38.40 | 2.5 | 96 | 2.17 | 41.10 | 42.10 |
| H7-43N3A | 37.80 | 45.80 | 6.84 | 355 | 44.65 | 36 | 0.71 | 40.49 | 36 | 5/8-11 | 3.07 | 2.60 | 0.94 | 38.40 | 2.5 | 96 | 2.60 | 41.10 | 42.10 |
| H8-54N1 | 46.56 | 57.60 | 4.02 | 760 | 56.10 | 40 | 0.91 | 50.00 | 40 | 0.91 | 3.78 | 3.04 | 0.98 | 47.20 | 2.5 | 118 | 2.76 | 51.57 | 53.00 |
