Double row ball slewing ring bearing
Inch
External gear
0in~39.3700in

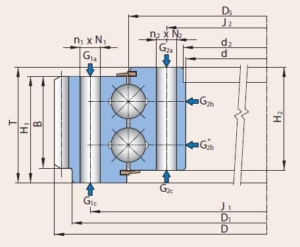

D:Outer diameter d:Inner diameter
T:Overall height N1:External bolt hole diameter
J1:External bolt circle diameter n1:Number of bolt holes per hole circle
J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle
N2:Internal bolt hole diameter B:Tooth width
| Bearing No. | d [in] | D [in] | T [in] | [Ibs] | J1 [in] | n1 | N1 [in] | J2 [in] | n2 | N2 [in] | H1 [in] | H2 [in] | D1 [in] | do [in] | DP or (m) | z | B [in] |
| 16258001 | 10.250 | 17.086 | 3.313 | 105 | 15.534 | 18 | 0.563 | 11.614 | 24 | 0.563 | 3.000 | 3.000 | 17.086 | 16.800 | 5/7 | 84 | 1.750 |
| Bearing No. | d[in] | D[in] | T[in] |
| 16258001 | 10.250 | 17.086 | 3.313 |
39.3700in~98.4251in
D:Outer diameter d:Inner diameter
T:Overall height N1:External bolt hole diameter
J1:External bolt circle diameter n1:Number of bolt holes per hole circle
J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle
N2:Internal bolt hole diameter B:Tooth width
| Bearing No. | d [in] | D [in] | T [in] | [Ibs] | J1 [in] | n1 | N1 [in] | J2 [in] | n2 | N2 [in] | H1 [in] | H2 [in] | D1 [in] | do [in] | DP or (m) | z | B [in] |
| 16264001 | 30.504 | 50.016 | 5.512 | 870 | 46.496 | 42 | M24×3 | 40.551 | 48 | 1.024 | 5.157 | 4.567 | 48.425 | 49.134 | （8） | 156 | 3.346 |
| 16265001 | 41.370 | 56.240 | 7.125 | 1730 | 52.000 | 30 | 1.313 | 44.000 | 30 | 1.313 | 6.688 | 6.688 | 54.675 | 55.600 | 2.5 | 139 | 4.000 |
| 16266001 | 51.250 | 68.800 | 7.375 | 2850 | 64.250 | 36 | 1.438 | 55.000 | 42 | 1.438 | 6.875 | 7.000 | 68.800 | 68.000 | 2 | 136 | 4.000 |
| 16267001 | 58.500 | 75.394 | 6.110 | 2450 | 70.500 | 48 | 1.313 | 61.366 | 48 | 1.313 | 5.750 | 5.750 | 73.307 | 74.016 | （10） | 188 | 4.130 |
| 16268001 | 71.400 | 89.181 | 7.090 | 3360 | 83.622 | 60 | 1.299 | 74.016 | 60 | 1.299 | 6.650 | 6.730 | 96.566 | 87.638 | （14） | 159 | 5.080 |
| 16269001 | 72.250 | 94.742 | 9.125 | 5560 | 89.750 | 60 | 1.625 | 75.250 | 68 | 1.625 | 8.375 | 8.750 | 92.500 | 94.000 | 2 | 188 | 5.500 |
98.4251in~
D:Outer diameter d:Inner diameter
T:Overall height N1:External bolt hole diameter
J1:External bolt circle diameter n1:Number of bolt holes per hole circle
J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle
N2:Internal bolt hole diameter B:Tooth width
| Bearing No. | d [in] | D [in] | T [in] | [Ibs] | J1 [in] | n1 | N1 [in] | J2 [in] | n2 | N2 [in] | H1 [in] | H2 [in] | D1 [in] | do [in] | DP or (m) | z | B [in] |
| 16270001 | 84.134 | 102.992 | 7.205 | 3970 | 95.906 | 64 | 1.299 | 87.205 | 68 | 1.535 | 6.654 | 6.654 | 99.331 | 100.787 | （20） | 128 | 5.709 |
| 16271001 | 98.375 | 124.800 | 11.250 | 10500 | 117.625 | 72 | 1.875 | 103.625 | 72 | 1.875 | 9.375 | 10.750 | 124.800 | 123.000 | 1.25 | 154 | 6.000 |
| 16272001 | 114.000 | 143.800 | 11.062 | 14980 | 136.625 | 72 | 2.156 | 121.375 | 72 | 2.156 | 10.250 | 10.437 | 143.800 | 143.000 | 2 | 286 | 8.000 |
| 16273001 | 150.000 | 180.000 | 10.625 | 22100 | 170.000 | 80 | 1.875 | 156.250 | 80 | 1.875 | 10.000 | 10.000 | 175.250 | 178.000 | 1 | 178 | 7.000 |
