Double row ball slewing ring bearing
Inch
Ungeared
0in~39.3700in

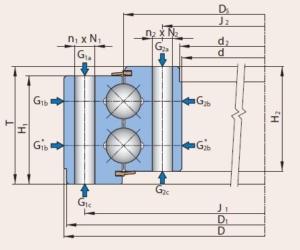

D:Outer diameter d:Inner diameter
T:Overall height N1:External bolt hole diameter
J1:External bolt circle diameter n1:Number of bolt holes per hole circle
J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle
N2:Internal bolt hole diameter H1:Outer ring height
39.3700in~98.4251in
D:Outer diameter d:Inner diameter
T:Overall height N1:External bolt hole diameter
J1:External bolt circle diameter n1:Number of bolt holes per hole circle
J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle
N2:Internal bolt hole diameter H1:Outer ring height
| Bearing No. | d [in] | D [in] | T [in] | [Ibs] | J1 [in] | n1 | N1 [in] | J2 [in] | n2 | N2 [in] | H1 [in] | H2 [in] |
| 16284001 | 30.236 | 41.417 | 7.480 | 1060 | 39.449 | 36 | 0.866 | 32.205 | 36 | 0.866 | 6.890 | 6.890 |
| 16015001 | 43.750 | 56.250 | 6.750 | 1520 | 53.630 | 36 | 1.313 | 46.380 | 36 | 11/4-7 | 6.380 | 6.380 |
| 16285001 | 59.750 | 75.750 | 8.750 | 3540 | 73.625 | 48 | 1.004 | 62.375 | 36 | 1.250 | 8.375 | 8.375 |
