1000mm-2500mm Four point ball slewing bearing MetricUngeared

Four point contact ball slewing ring bearing
Metric
Ungeared

1000mm-2500mm

Series 1

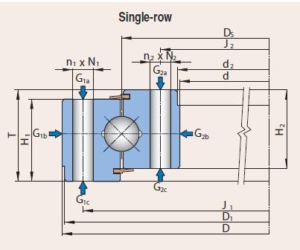

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter H1:Outer ring height

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	H1 [mm]	H2 [mm]
060.20.0944.500.01.1503	872	1016	56	67	990	44	13.5	898	44	13.5	944	–	45.5	45.5
060.20.1094.500.01.1503	1022	1166	56	77	1140	48	13.5	1048	48	13.5	1094	–	45.5	45.5
060.20.0944.575.01.1403	873.5	1014.5	56	67	990	44	13.5	898	44	13.5	944	–	45.5	45.5
060.20.1094.575.01.1403	1023.5	1164.5	56	77	1140	48	13.5	1048	48	13.5	1094	–	45.5	45.5
060.25.0955.500.11.1503	855	1055	63	113	1015	30	22	895	30	22	955	–	54	54
060.25.1055.500.11.1503	955	1155	63	124	1115	30	22	995	30	22	1055	–	54	54
060.25.1155.500.11.1503	1055	1255	63	139	1215	36	22	1095	36	22	1155	–	54	54
060.25.1255.500.11.1503	1155	1355	63	148	1315	42	22	1195	42	22	1255	–	54	54
060.25.1355.500.11.1503	1255	1455	63	161	1415	42	22	1295	42	22	1355	–	54	54
060.25.1455.500.11.1503	1355	1555	63	171	1515	48	22	1395	48	22	1455	–	54	54
060.25.0955.575.11.1403	857	1053	63	113	1015	30	22	895	30	22	955	–	54	54
060.25.1055.575.11.1403	957	1153	63	124	1115	30	22	995	30	22	1055	–	54	54
060.25.1155.575.11.1403	1057	1253	63	139	1215	36	22	1095	36	22	1155	–	54	54
060.25.1255.575.11.1403	1157	1353	63	148	1315	42	22	1195	42	22	1255	–	54	54
060.25.1355.575.11.1403	1257	1453	63	161	1415	42	22	1295	42	22	1355	–	54	54
060.25.1455.575.11.1403	1357	1553	63	171	1515	48	22	1395	48	22	1455	–	54	54

Bearing No.	d[mm]	D[mm]	T[mm]
060.20.0944.500.01.1503	872	1016	56
060.20.1094.500.01.1503	1022	1166	56
060.20.0944.575.01.1403	873.5	1014.5	56
060.20.1094.575.01.1403	1023.5	1164.5	56
060.25.0955.500.11.1503	855	1055	63
060.25.1055.500.11.1503	955	1155	63
060.25.1155.500.11.1503	1055	1255	63
060.25.1255.500.11.1503	1155	1355	63
060.25.1355.500.11.1503	1255	1455	63
060.25.1455.500.11.1503	1355	1555	63
060.25.0955.575.11.1403	857	1053	63
060.25.1055.575.11.1403	957	1153	63
060.25.1155.575.11.1403	1057	1253	63
060.25.1255.575.11.1403	1157	1353	63
060.25.1355.575.11.1403	1257	1453	63
060.25.1455.575.11.1403	1357	1553	63

Series 2

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter H1:Outer ring height

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	H1 [mm]	H2 [mm]
9O-1B40-0883-1354	726.4	1041.4	98.6	285	990.6	20	3/4-10 UNC	787.4	20	21	883	–	88.9	88.9
9O-1B50-0953-1299	771.7	1133.6	114.3	352	1060.5	(40-1)	33	844.5	40	33	953	–	101.6	101.6
9O-1B50-0900-0579	745	1065	110	290	1000	36	31	800	36	31	900	–	100	100
9O-1B35-0867-1122	753.1	1010.9	82.6	188	939.8	24	17.5	781.05	24	5/8-11 UNC	867	–	73.2	73.2
9O-1B32-0910-0791	803.1	1016	76.2	140	981.075	36	21	838.2	36	3/4-10 UNC	910	–	66.5	66.5
9O-1B30-1079-0898	957.6	1200	74	176.5	1154	36	22	1004	36	22	1079	–	63.5	63.5
9O-1B20-1177-0655	1093	1261	67	132	1231	24	14	1123	24	14	1177	–	58	58
9O-1B50-1200-1239	1040	1360	120	430	1300	40	30	1100	40	30	1200	–	110	110
9O-1B14-1229-0657	1184.6	1271.98	65	62	1256	36	M10	1202	36	M10	1229	–	50	50
9O-1B45-1455-0857	1301	1604	101	430	1560	48	22	1345	48	22	1455	–	91	91
9O-1B25-1455-1334	1355	1555	63	163	1515	48	22	1395	48	22	1455	–	54	54
9O-1B40-2000-0980	1884	2116	100	411.5	2076	92	22	1924	(92-1)	22	2000	–	86	86
9O-1B25-2300-0107	2200	2400	73	300	2360	60	22	2240	60	22	2300	–	63	63
9O-1B57-0892-0928	665	1065	110	357	–	–	–	–	–	–	892	–	–	–
9O-1B50-0900-0773	665	1065	110	343	–	–	–	–	–	–	900	–	–	–
9O-1B30-0885-0979	776	1059	60	166	–	–	–	–	–	–	885	–	–	–
9O-1B20-0944-0666JU	834	1048	56	53	–	–	–	–	–	–	944	–	–	–
9O-1B20-0944-0666JUA	834	1048	56	53	–	–	–	–	–	–	944	–	–	–
9O-1B20-0944-0919	834	1048	56	53	–	–	–	–	–	–	944	–	–	–
9O-1B32-0970-0911	850.9	1089.2	79.2	152	–	–	–	–	–	–	970	–	–	–
9O-1B25-0955-0535	855	1055	63	103	–	–	–	–	–	–	955	–	–	–
9O-1B25-0955-0535-1	855	1055	63	119	–	–	–	–	–	–	955	–	–	–
9O-1B20-0941-0357	872	1016	56	70	–	–	–	–	–	–	941	–	–	–
9O-1B30-0984-0943	876	1102	50	121	–	–	–	–	–	–	984	–	–	–
9O-1B30-1000-0887	878.6	1122	72	165	–	–	–	–	–	–	1000	–	–	–
9O-1B17-0945-0426	880	1023.5	42.5	49.5	–	–	–	–	–	–	945	–	–	–
9O-1B20-0944-0772	890	1020	56	30	–	–	–	–	–	–	944	–	–	–
9O-1B35-1065-0474	935	1195	93	270	–	–	–	–	–	–	1065	–	–	–
9O-1B32-1095-1171	952.5	1193.8	78.7	226	–	–	–	–	–	–	1095	–	–	–
9O-1B22-1094-1016	964	1198	56	101.5	–	–	–	–	–	–	1094	–	–	–
9O-1B20-1094-0823	984	1198	56	63	–	–	–	–	–	–	1094	–	–	–
9O-1B22-1094-0767	984	1198	56	118	–	–	–	–	–	–	1094	–	–	–
9O-1B22-1094-0207	984	1198	56	118	–	–	–	–	–	–	1094	–	–	–
9O-1B20-1093-0941	985	1200	56	70	–	–	–	–	–	–	1093	–	–	–
9O-1B20-1093-0941-1	985	1200	56	70	–	–	–	–	–	–	1093	–	–	–
9O-1B36-1282-0422	1127	1447	65	280	–	–	–	–	–	–	1282	–	–	–
9O-1B70-1315-1083	1155	1485	166	759	–	–	–	–	–	–	1315	–	–	–
9O-1B50-1354-1256	1184	1524	125	544	–	–	–	–	–	–	1354	–	–	–
9O-1B45-1422-0890	1217.1	1562.6	134.9	577	–	–	–	–	–	–	1422	–	–	–
9O-1B25-1627-1225	1484	1746	86	331	–	–	–	–	–	–	1627	–	–	–
9O-1B45-1848-0905	1562	2040	120	954	–	–	–	–	–	–	1848	–	–	–
9O-1B50-1778-1012	1628	1927	130	701	–	–	–	–	–	–	1778	–	–	–
9O-1B25-1898-0127	1810	1985	80	262.5	–	–	–	–	–	–	1898	–	–	–
9O-1B32-2219-1183	2093.9	2343.2	85.7	442	–	–	–	–	–	–	2219	–	–	–
9O-1B20-0941-0357 S	872	1016	56	70	–	–	–	–	–	–	941	–	–	–
9O-1B30-1000-0380	878.6	1121	74	162	–	–	–	–	–	–	1000	–	–	–

Bearing No.	d[mm]	D[mm]	T[mm]
9O-1B40-0883-1354	726.4	1041.4	98.6
9O-1B50-0953-1299	771.7	1133.6	114.3
9O-1B50-0900-0579	745	1065	110
9O-1B35-0867-1122	753.1	1010.9	82.6
9O-1B32-0910-0791	803.1	1016	76.2
9O-1B30-1079-0898	957.6	1200	74
9O-1B20-1177-0655	1093	1261	67
9O-1B50-1200-1239	1040	1360	120
9O-1B14-1229-0657	1184.6	1271.98	65
9O-1B45-1455-0857	1301	1604	101
9O-1B25-1455-1334	1355	1555	63
9O-1B40-2000-0980	1884	2116	100
9O-1B25-2300-0107	2200	2400	73
9O-1B57-0892-0928	665	1065	110
9O-1B50-0900-0773	665	1065	110
9O-1B30-0885-0979	776	1059	60
9O-1B20-0944-0666JU	834	1048	56
9O-1B20-0944-0666JUA	834	1048	56
9O-1B20-0944-0919	834	1048	56
9O-1B32-0970-0911	850.9	1089.2	79.2
9O-1B25-0955-0535	855	1055	63
9O-1B25-0955-0535-1	855	1055	63
9O-1B20-0941-0357	872	1016	56
9O-1B30-0984-0943	876	1102	50
9O-1B30-1000-0380	878.6	1121	74
9O-1B30-1000-0887	878.6	1122	72
9O-1B17-0945-0426	880	1023.5	42.5
9O-1B20-0944-0772	890	1020	56
9O-1B35-1065-0474	935	1195	93
9O-1B32-1095-1171	952.5	1193.8	78.7
9O-1B22-1094-1016	964	1198	56
9O-1B20-1094-0823	984	1198	56
9O-1B22-1094-0767	984	1198	56
9O-1B22-1094-0207	984	1198	56
9O-1B20-1093-0941	985	1200	56
9O-1B20-1093-0941-1	985	1200	56
9O-1B36-1282-0422	1127	1447	65
9O-1B70-1315-1083	1155	1485	166
9O-1B50-1354-1256	1184	1524	125
9O-1B45-1422-0890	1217.1	1562.6	134.9
9O-1B25-1627-1225	1484	1746	86
9O-1B45-1848-0905	1562	2040	120
9O-1B50-1778-1012	1628	1927	130
9O-1B25-1898-0127	1810	1985	80
9O-1B32-2219-1183	2093.9	2343.2	85.7
9O-1B20-0941-0357 S	872	1016	56

Series 3

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter H1:Outer ring height

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	H1 [mm]	H2 [mm]
VSU200944	872	1016	56	67	990	44	14	898	44	14	944	–	44.5	44.5
VSU200944-RR	872	1016	56	67	990	44	14	898	44	14	944	–	44.5	44.5
VSU200944-ZT	872	1016	56	67	990	44	14	898	44	14	944	–	44.5	44.5
VSU200944-ZT-RL2	872	1016	56	67	990	44	14	898	44	14	944	–	44.5	44.5
VSU201094	1022	1166	56	77	1140	48	14	1048	48	14	1094	–	44.5	44.5
VSU201094-RL1	1022	1166	56	77	1140	48	14	1048	48	14	1094	–	44.5	44.5
VSU201094-VSP	1022	1166	56	77	1140	48	14	1048	48	14	1094	–	44.5	44.5
VSU201094-ZT	1022	1166	56	77	1140	48	14	1048	48	14	1094	–	44.5	44.5
VSU201094-VSP-ZT	1022	1166	56	77	1140	48	14	1048	48	14	1094	–	44.5	44.5
VSU201094-ZT-RL1	1022	1166	56	77	1140	48	14	1048	48	14	1094	–	44.5	44.5
VSU201094-ZT-RL2	1022	1166	56	77	1140	48	14	1048	48	14	1094	–	44.5	44.5
VSU201094-ZT-RL3	1022	1166	56	77	1140	48	14	1048	48	14	1094	–	44.5	44.5
VSU250955	855	1055	63	115	1015	30	22	895	30	22	955	–	54	54
VSU250955-ZT	855	1055	63	115	1015	30	22	895	30	22	955	–	54	54
VSU250955-VSP-ZT	855	1055	63	115	1015	30	22	895	30	22	955	–	54	54
VSU251055	955	1155	63	128	1115	30	22	995	30	22	1055	–	54	54
VSU251055-VSP	955	1155	63	128	1115	30	22	995	30	22	1055	–	54	54
VSU251055-VSP-ZT	955	1155	63	128	1115	30	22	995	30	22	1055	–	54	54

Bearing No.	d[mm]	D[mm]	T[mm]
VSU200944	872	1016	56
VSU200944-RR	872	1016	56
VSU200944-ZT	872	1016	56
VSU200944-ZT-RL2	872	1016	56
VSU201094	1022	1166	56
VSU201094-RL1	1022	1166	56
VSU201094-VSP	1022	1166	56
VSU201094-ZT	1022	1166	56
VSU201094-VSP-ZT	1022	1166	56
VSU201094-ZT-RL1	1022	1166	56
VSU201094-ZT-RL2	1022	1166	56
VSU201094-ZT-RL3	1022	1166	56
VSU250955	855	1055	63
VSU250955-ZT	855	1055	63
VSU250955-VSP-ZT	855	1055	63
VSU251055	955	1155	63
VSU251055-VSP	955	1155	63
VSU251055-VSP-ZT	955	1155	63

Series 4

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter H1:Outer ring height

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	H1 [mm]	H2 [mm]
03 0980 02	845	1130	100	286	1070	36	26	890	(36-1)	26	980	–	90	90
33 0941 01	872	1016	56	67	990	44	14	898	44	14	941	–	46	46
33 1091 01	1022	1166	56	81	1140	48	14	1048	48	14	1091	–	46	46
03098002	845	1130	100	286	1070	36	26	890	(36-1)	26	980	–	90	90
33094101	872	1016	56	67	990	44	14	898	44	14	941	–	46	46
33109101	1022	1166	56	81	1140	48	14	1048	48	14	1091	–	46	46

Bearing No.	d[mm]	D[mm]	T[mm]
03 0980 02	845	1130	100
33 0941 01	872	1016	56
33 1091 01	1022	1166	56
03098002	845	1130	100
33094101	872	1016	56
33109101	1022	1166	56

Series 5

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter H1:Outer ring height

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	H1 [mm]	H2 [mm]
10-20 0941/0-02062	872	1016	56	66	990	44	14	898	44	14	941	–	44	44
10-20 1091/0-02072	1022	1166	56	77	1140	48	14	1048	48	14	1091	–	44	44
10-20 0941/0-02063	870	1016	56	66	990	44	14	898	44	14	941	–	44	44
10-20 1091/0-02073	1022	1166	56	77	1140	48	14	1048	48	14	1091	–	44	44
10-25 0955/0-03020	855	1055	63	115	1015	30	14	895	30	14	955	–	54	54
10-25 1055/0-03030	955	1155	63	128	1115	30	14	995	30	14	1055	–	54	54
10-25 1155/0-03040	1055	1255	63	139	1215	36	14	1095	36	14	1155	–	54	54
10-25 1255/0-03050	1155	1355	63	150	1315	42	14	1195	42	14	1255	–	54	54
10-25 1355/0-03060	1255	1455	63	163	1415	42	14	1295	42	14	1355	–	54	54
10-25 1455/0-03070	1355	1555	63	174	1515	48	14	1395	48	14	1455	–	54	54

Bearing No.	d[mm]	D[mm]	T[mm]
10-20 0941/0-02062	872	1016	56
10-20 1091/0-02072	1022	1166	56
10-20 0941/0-02063	870	1016	56
10-20 1091/0-02073	1022	1166	56
10-25 0955/0-03020	855	1055	63
10-25 1055/0-03030	955	1155	63
10-25 1155/0-03040	1055	1255	63
10-25 1255/0-03050	1155	1355	63
10-25 1355/0-03060	1255	1455	63
10-25 1455/0-03070	1355	1555	63

Series 6

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter H1:Outer ring height

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	H1 [mm]	H2 [mm]
RKS.060.20.0944	872	1016	56	67	990	44	13.5	898	44	13.5	944	–	44.5	44.5
RKS.060.20.1094	1022	1166	56	77	1140	48	13.5	1048	48	13.5	1094	–	44.5	44.5
RKS.060.25.1204	1119	1289	68	120	1257	45	16	1151	45	16	1204	–	58	58
RKS.060.25.1314	1229	1399	68	132	1367	50	16	1261	50	16	1314	–	58	58
RKS.060.25.1424	1339	1509	68	155	1477	54	16	1371	54	16	1424	–	58	58
RKS.060.25.1534	1449	1619	68	155	1587	60	16	1481	60	16	1534	–	58	58
RKS.060.25.1644	1536	1752	68	210	1708	54	22	1580	54	22	1644	–	58	58
RKS.060.25.1754	1646	1862	68	222	1818	60	22	1690	60	22	1754	–	58	58
RKS.060.30.1904	1796	2012	68	240	1968	64	22	1840	64	22	1904	–	58	58

Bearing No.	d[mm]	D[mm]	T[mm]
RKS.060.20.0944	872	1016	56
RKS.060.20.1094	1022	1166	56
RKS.060.25.1204	1119	1289	68
RKS.060.25.1314	1229	1399	68
RKS.060.25.1424	1339	1509	68
RKS.060.25.1534	1449	1619	68
RKS.060.25.1644	1536	1752	68
RKS.060.25.1754	1646	1862	68
RKS.060.30.1904	1796	2012	68

Series 7

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter H1:Outer ring height

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]
VU.10.0870TN	650	1170	104	404	1110	12	22	730	12	M20	870
VU.20.0884AV	700	1000	86	99	970	8	16.5	730	8	16.5	884
VU.10.1048V	950	1150	80	202	–	–	–	995	6	M16	1048
VU.10.1235F	1093	1377	140	367	1335	42	M20	1135	42	M20	1235
VU.10.1500TN	1380	1620	120	475	1580	24	M16	1420	24	M16	1500
M-VU.10.1600V	–	1880	240	264	–	–	–	1950	–	–	1600
VU.10.2115F	2030	2200	65	261	2170	18	18	2060	36	18	2115

Bearing No.	d[mm]	D[mm]	T[mm]
VU.10.0870TN	650	1170	104
VU.20.0884AV	700	1000	86
VU.10.1048V	950	1150	80
VU.10.1235F	1093	1377	140
VU.10.1500TN	1380	1620	120
M-VU.10.1600V	–	1880	240
VU.10.2115F	2030	2200	65

Series 8

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter H1:Outer ring height

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	H1 [mm]	H2 [mm]
SD.1016.20.00.B	872	1016	56	67	990	44	14	898	44	14	944		44.5	44.5
SD.1166.20.00.B	1022	1166	56	77	1140	48	14	1048	48	14	1094		44.5	44.5
SD.1055.25.00.B	857	1053	63	115	1015	30	22	895	30	22	956		54	54
SD.1155.25.00.B	957	1153	63	128	1115	30	22	995	30	22	1056		54	54

Bearing No.	d[mm]	D[mm]	T[mm]
SD.1016.20.00.B	872	1016	56
SD.1166.20.00.B	1022	1166	56
SD.1055.25.00.B	857	1053	63
SD.1155.25.00.B	957	1153	63

Series 9

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter H1:Outer ring height

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	H1 [mm]	H2 [mm]
22-0007	872	1016	56	67	990	40	14	898	44	14	944		46	46
22-0008	1022	1166	56	77	1140	44	14	1048	48	14	1094		46	46
22-0021	855	1055	63	115	1015	30	22	895	30	22	955		54	54
22-0022	955	1155	63	128	1115	30	22	995	30	22	1055		54	54
22-0023	1055	1255	63	139	1215	36	22	1095	36	22	1155		54	54
22-0024	1155	1355	63	151	1315	42	22	1195	42	22	1255		54	54
22-0025	1255	1455	63	162	1415	42	22	1295	42	22	1355		54	54
22-0026	1355	1555	63	173	1515	48	22	1395	48	22	1455		54	54

Bearing No.	d[mm]	D[mm]	T[mm]
22-0007	872	1016	56
22-0008	1022	1166	56
22-0021	855	1055	63
22-0022	955	1155	63
22-0023	1055	1255	63
22-0024	1155	1355	63
22-0025	1255	1455	63
22-0026	1355	1555	63

Series 10

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter H1:Outer ring height

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]	t [mm]	H1 [mm]	H2 [mm]
787/800G	800	1050	90	192	1012	30	20	838	30	20	925		76	74
71769/850Y	850	1120	85	248	1074	12	M20	924	12	22	1002		85	69
71769/850G2K	850	1120	85	257	1074	12	17	924	12	22	1001		85	69
787/932G2	932	1200	120	328	1148	40	26	984	40	M24	1066		100	100
787/960G2	960	1165	90	202	1135	36	18	1040	36	M16	1075		78	76
787/1000G2	1000	1250	100	283	1206	12	18	1044	12	M16	1125		90	90
787/1260G2	1260	1509	90	274	1465	36	22	1315	36	M20	1387		70	76
71169/1400Y	1400	1820	136	1114	1750	24	35	1470	24	35	1610		136	122
71169/1400Y1	1400	1820	136	1120	1750	24	35	1470	24	35	1610		136	122
787/1440G2	1440	1780	100	533	1730	48	22	1494	48	M20	1620		85	85
787/1628G2	1628	1927	130	732	1875	36	26	1680	36	M24	1776		115	115
787/1700KM	1700	2000	150	826	1950	24	21	1750	24	21	1850		130	130
KDL 900-6	832	1050	56	52.5	1020	12	18	862	12	18	944		45	45
010.30.955.11	893	1098	90	126	1060	48	22	845	48	22	955		71	71

Bearing No.	d[mm]	D[mm]	T[mm]
787/800G	800	1050	90
71769/850Y	850	1120	85
71769/850G2K	850	1120	85
787/932G2	932	1200	120
787/960G2	960	1165	90
787/1000G2	1000	1250	100
787/1260G2	1260	1509	90
71169/1400Y	1400	1820	136
71169/1400Y1	1400	1820	136
787/1440G2	1440	1780	100
787/1628G2	1628	1927	130
787/1700KM	1700	2000	150
KDL 900-6	832	1050	56
010.30.955.11	893	1098	90

Series 11

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter H1:Outer ring height

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]
010.40.900	778	1022	100	240	978	30	22	822	30	22	900
010.30.900	778	1022	100	240	978	30	22	822	30	22	900
010.40.1000	878	1122	100	305	1078	36	22	922	36	22	1000
010.30.1000	878	1122	100	305	1078	36	22	922	36	22	1000
010.40.1120	998	1242	100	300	1198	36	22	1042	36	22	1120
010.30.1120	998	1242	100	300	1198	36	22	1042	36	22	1120
010.45.1250	1110	1390	110	420	1337	40	26	1163	40	26	1250
010.35.1250	1110	1390	110	420	1337	40	26	1163	40	26	1250
010.45.1400	1260	1540	110	480	1487	40	26	1313	40	26	1400
010.35.1400	1260	1540	110	480	1487	40	26	1313	40	26	1400
010.45.1600	1460	1740	110	550	1687	45	26	1513	45	26	1600
010.35.1600	1460	1740	110	550	1687	45	26	1513	45	26	1600
010.45.1800	1660	1940	110	610	1887	45	26	1713	45	26	1800
010.35.1800	1660	1940	110	610	1887	45	26	1713	45	26	1800
010.60.2000	1825	2178	144	1100	2110	48	33	1891	48	33	2000
010.40.2000	1825	2178	144	1100	2110	48	33	1891	48	33	2000
010.60.2240	2065	2418	144	1250	2350	48	33	2131	48	33	2240
010.40.2240	2065	2418	144	1250	2350	48	33	2131	48	33	2240

Bearing No.	d[mm]	D[mm]	T[mm]
010.40.900	778	1022	100
010.30.900	778	1022	100
010.40.1000	878	1122	100
010.30.1000	878	1122	100
010.40.1120	998	1242	100
010.30.1120	998	1242	100
010.45.1250	1110	1390	110
010.35.1250	1110	1390	110
010.45.1400	1260	1540	110
010.35.1400	1260	1540	110
010.45.1600	1460	1740	110
010.35.1600	1460	1740	110
010.45.1800	1660	1940	110
010.35.1800	1660	1940	110
010.60.2000	1825	2178	144
010.40.2000	1825	2178	144
010.60.2240	2065	2418	144
010.40.2240	2065	2418	144

Series 12

D:Outer diameter d:Inner diameter

T:Overall height N1:External bolt hole diameter

J1:External bolt circle diameter n1:Number of bolt holes per hole circle

J2:Internal bolt circle diameter n2:Number of bolt holes per hole circle

N2:Internal bolt hole diameter H1:Outer ring height

Bearing No.	d [mm]	D [mm]	T [mm]	[kg]	J1 [mm]	n1	N1 [mm]	J2 [mm]	n2	N2 [mm]	Ds [mm]
VS218A00	1842	2180	120	774	2114	60	M30	1908	60	M30	2007.0
VS101A01	872	1016	56	72	990	24	M12	898	24	M12	941
VS101A02	872	1016	56	72	990	24	M12	898	24	M12	941
VS120A00	982	1200	65	150	1135	30	M16	1012	30	M16	1073
VS120A13	982	1200	65	150	1135	30	M16	1012	30	M16	1073
VS129A01	984	1289.5	114	375	1198	18	M20	1035	18	M20	1116.5
VS142A02	1122	1423	84	320	1332	30	M20	1180	30	M20	1252.5
VS142A04	1225	1427	87	235	1390	18	M16	1255	18	M16	1324.5
VS147A00	1183	1470	108	410	1425	20	M20	1270	20	M20	1350.5
VS147A03	1183	1470	108	403	1425	30	M20	1270	30	M20	1350.5
VS153A00	1186	1530	130	590	1480	36	M24	1290	36	M24	1383.5
VS156A99	1206	1560	130	635	1494	48	M22	1280	48-1	M22	1391.5
VS160A04	1310	1600	90	370	1560	16	M20	1394	16	M20	1460.5
VS171A00	1510	1716	87	305	1678	15	M16	1545	15	M16	1609.5
VS200A00	1680	2000	89	550	1960	18	M20	1794	18	M20	1880.5
VS207A00	1870	2076	87	362	2038	18	M16	1905	18	M16	1972.5
VS213A00	1905	2130	87	410	2090	18	M16	1945	18	M16	2017.5
VS238A00	2125	2380	87	520	2320	20	M24	2175	36	M16	2247.5

Bearing No.	d[mm]	D[mm]	T[mm]
VS218A00	1842	2180	120
VS101A01	872	1016	56
VS101A02	872	1016	56
VS120A00	982	1200	65
VS120A13	982	1200	65
VS129A01	984	1289.5	114
VS142A02	1122	1423	84
VS142A04	1225	1427	87
VS147A00	1183	1470	108
VS147A03	1183	1470	108
VS153A00	1186	1530	130
VS156A99	1206	1560	130
VS160A04	1310	1600	90
VS171A00	1510	1716	87
VS200A00	1680	2000	89
VS207A00	1870	2076	87
VS213A00	1905	2130	87
VS238A00	2125	2380	87

1000mm-2500mm

Series 1

Series 2

Series 3

Series 4

Series 5

Series 6

Series 7

Series 8

Series 9

Series 10

Series 11

Series 12

Contact Information
